Wiring
Fuse 10A
12V Battery

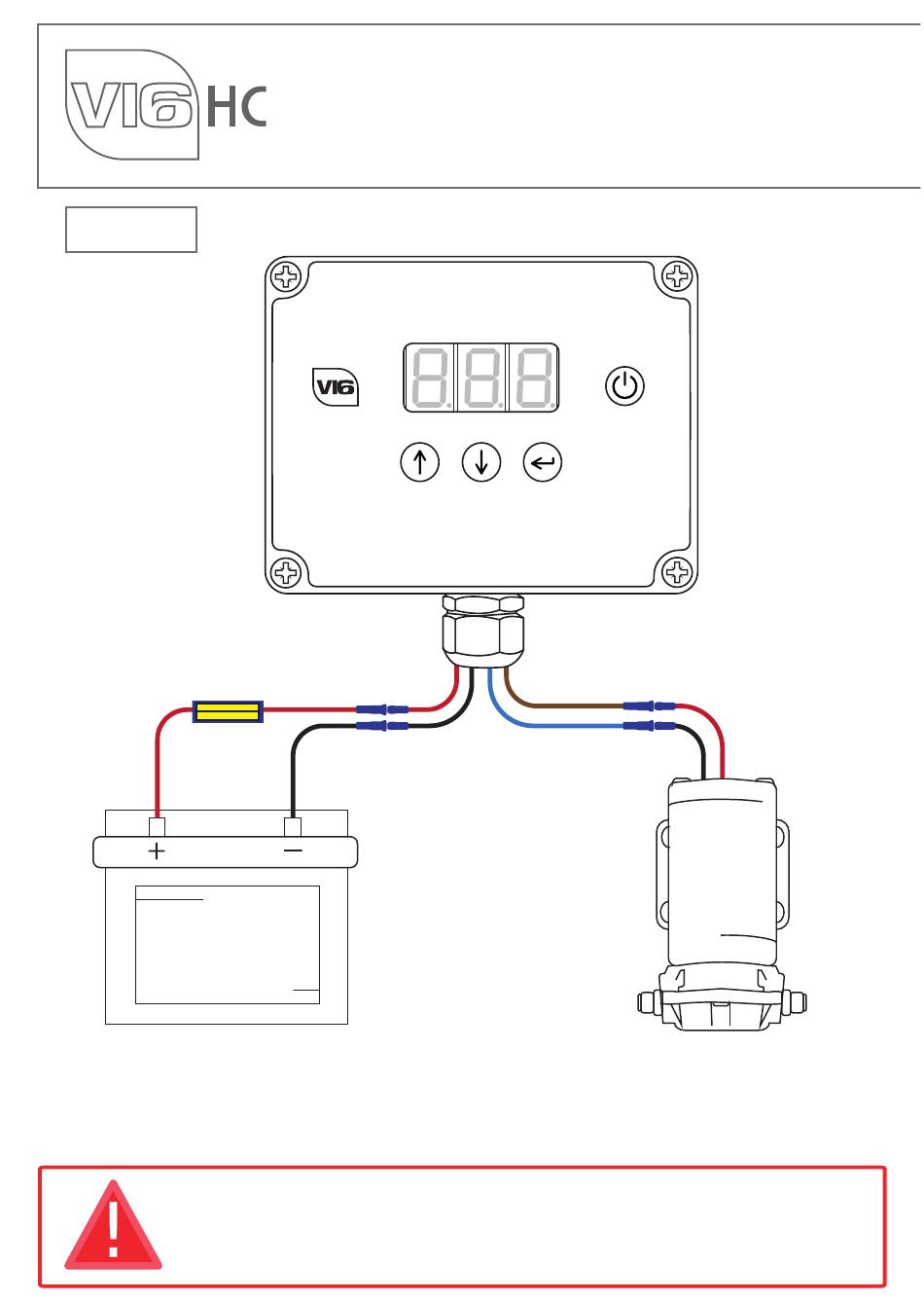

Connect the pump controller in accordance with this diagram.
NOTE: only fit the fuse once all connections are made.
The Fuse for this unit is a 10A Fuse. Make sure correct fuse is fitted inline, close to the
battery end of the RED (positive) wire. Failure to do so will result in damage to the unit.

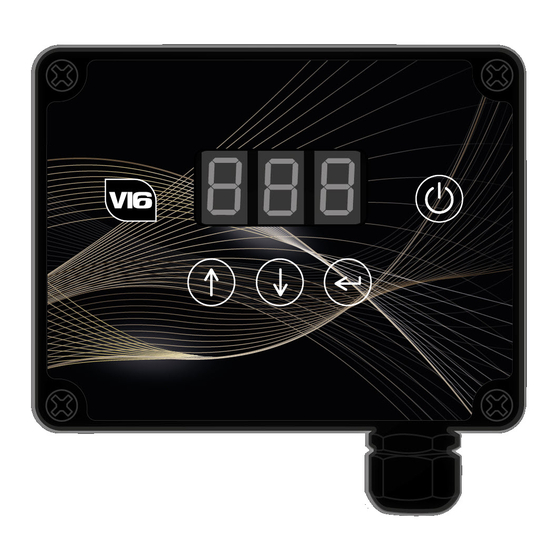

Basic Guide
Pump
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spring V16 HC
Summary of Contents for Spring V16 HC
- Page 1 Basic Guide Wiring Fuse 10A 12V Battery Pump Connect the pump controller in accordance with this diagram. NOTE: only fit the fuse once all connections are made. The Fuse for this unit is a 10A Fuse. Make sure correct fuse is fitted inline, close to the battery end of the RED (positive) wire.
- Page 2 RELIABILITY, FUNCTION OR DESIGN. THE MANUFACTURER DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN. For more information and videos on how to use Spring controllers please visit: www.springltd.co/videos Copyright © 2021 Spring (Europe) Ltd. All rights reserved.
- Page 3 Set Up - Auto Calibrate Connect your hose and pole + brush to the pump. Turn on the controller by pressing the power button. Press up until the display shows 30. Press and hold the up and enter buttons to calibrate. CAL will be displayed. To select Auto Cal continue to press the down button until AUt is displayed.
- Page 4 Operation Press up or down to set a suitable flow of water. Press enter to display the current battery voltage. Press enter again to return to the current flow rate. To turn the controller off, press the power button. Message Description An error has occurred while using AutoCal.
