Spring V11M Quick Start

Step 1. Fitting Instructions
ALWAYS DISCONNECT THE MAINS SUPPLY
!
BEFORE OPENING UNIT.
ALWAYS DISCONNECT THE MAINS SUPPLY
BEFORE CONNECTING THE PUMP
This V11M BPC FM unit is supplied already wired. There is
no need to disconnect any wires. Follow these instructions
carefully and refer to the wiring diagram.
IT IS RECOMMENDED THAT YOUR V11M IS FITTED AGAINST
A WALL OR SIMILAR VERTICAL SURFACE.
1. Ensure the V11M is NOT PLUGGED into the MAINS SUPPLY .
2. Remove the top cover by loosening the four corner screws. Using
a large pozidrive screw driver continuously turn counter clockwise.
3. Carefully remove the top cover.
4. Screw unit to the wall or vertical surface through the four ready
drilled holes in the corners of the back box.
5. Carefully replace the top cover and tighten the four corner
screws, using the reverse procedure to instruction 2. above.
You are now ready to control your pump.
NOTE: Only switch on MAINS SUPPLY to the 230Vac 5A Mains Plug
once front cover has been re-fitted.
DISCLAIMER
Unit must be installed by a competent electrician or electrical engineer. Failure
to comply with these instructions could invalidate your warranty.
Mains Pump Controller - Quick Start

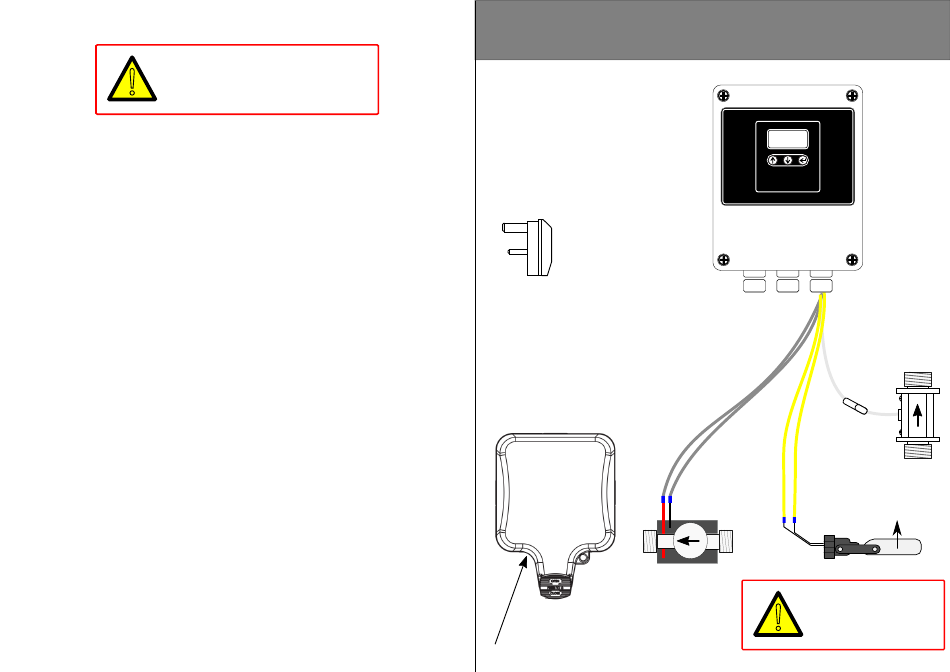

Wiring Diagram
Connect the pump
controller following
this diagram and the
Fitting Instructions.
230Vac
5A
Mains
Plug
Grey
230Vac
Pump
Mains
Socket
Outlet
Connect your 230Vac mains
powered pump by plugging in
to this socket.
Inline
Yellow Connector
RO Inlet High
(Fill) Valve Level
Switch
!
ALWAYS DISCONNECT
THE MAINS SUPPLY
BEFORE OPENING UNIT.
V11M
BPC FM
Flowmeter
