Product components

For detailed guidance and visual assistance, visit support.formlabs.com.

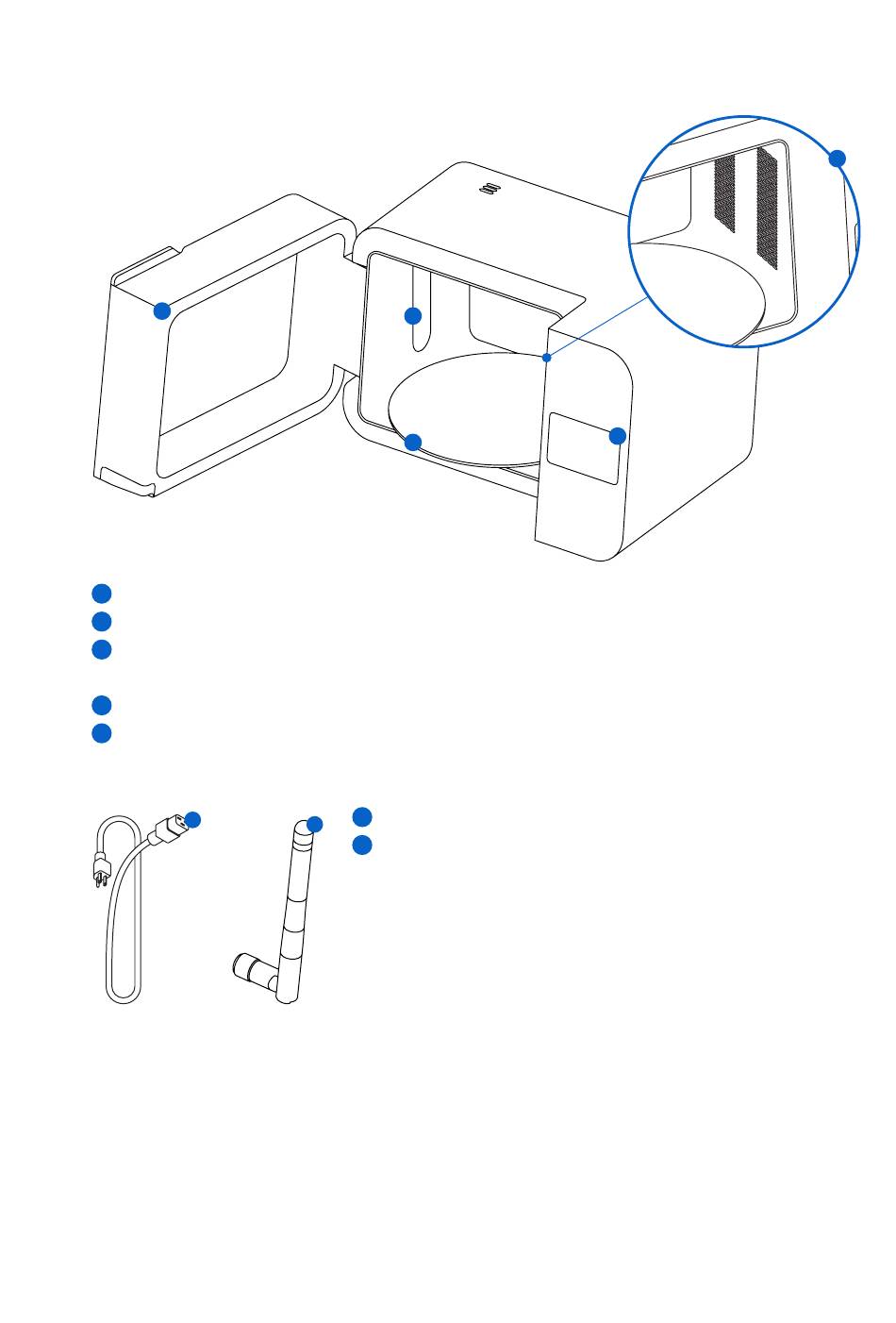

2.3.1 Form Cure L
1
Door: Double walls insulate the post-cure chamber and the internal surfaces reflect light.
1
Heaters: Two 500 W heating modules heat the post-cure chamber up to 80 °C (176 °F).
2
LEDs: An array of 375 nm and 405 nm LEDs help to post-cure parts. Secondary white LEDs
3
illuminate the turntable when the door is open and during heating.
Turntable: Rotating plate ensures balanced post-curing across all exposed surfaces.
4
Touchscreen: The LCD capacitive touch user interface displays post-cure cycle information,
5
settings, and error messages.
2.3.2 Additional package components
2.4

User interface

For detailed guidance and visual assistance, visit support.formlabs.com.
The Form Cure L display is a touchscreen interface. The touchscreen displays post-cure
information (time, temperature, and selected material), settings, and error messages. The
touchscreen serves as the user interface for the machine.
The home screen displays the preheating time and temperature, post-cure time and
temperature, current resin, device status, and serial name.
10
1
1
2
2
3
4
Power cable: Provides power to the Form Cure L.
Wi-Fi antenna: Allows the machine to connect to a
network via Wi-Fi.
