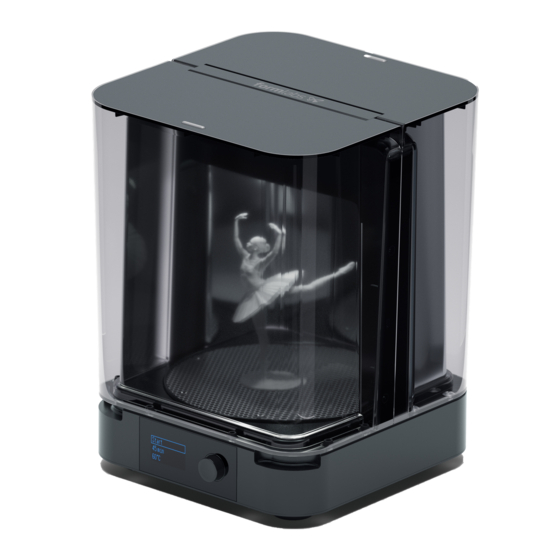

formlabs Form Cure Quick Start Manual
Hide thumbs
Also See for Form Cure:
- Manual (31 pages) ,
- Installation and usage instructions (40 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for formlabs Form Cure
Summary of Contents for formlabs Form Cure
- Page 1 Print Wash Cure Form Cure...
- Page 2 Shows status, time, temperature, and options for configuring Form Cure. 6 Knob. Turn or push to adjust time and temperature settings and to start, pause, or stop post-curing. 7 Power Supply. Provides power to Form Cure. Specifications: 24 V, 6 A...
- Page 3 USING FORM CURE Connect Power Supply Connect the power cable to Form Cure and a power source. USB port provided for future updates. ert Washed and Dried Prints Before post-curing, allow at least 30 minutes for isopropyl alcohol (IPA) to fully evaporate after washing. Check all surfaces; post-curing non- dried parts may affect quality.
- Page 4 USING FORM CURE Set Cure Time and Temperature Turn the knob to navigate the display menu. Press the knob to select a feature or setting. Select the time and temperature, then select “Start.” The LEDs will activate once the heater has reached the target temperature.
- Page 5 Collect Prints When the cure cycle completes, the LEDs and heater will turn off. Lift the cover to remove the parts.
- Page 6 Safety For complete information, see the included Safety Guide. The Form Cure contains a heater to enable post-curing. Take care when removing parts from the Form Cure. The metal turntable may be hot. Best Practices POST-CURE SETTINGS For Standard Resins, use default post-cure settings of 60 °C for 30 minutes.
- Page 7 Form Wash A Complete System For Cleaner, Stronger Parts Form Cure...
- Page 8 REV 02 01/2018...
