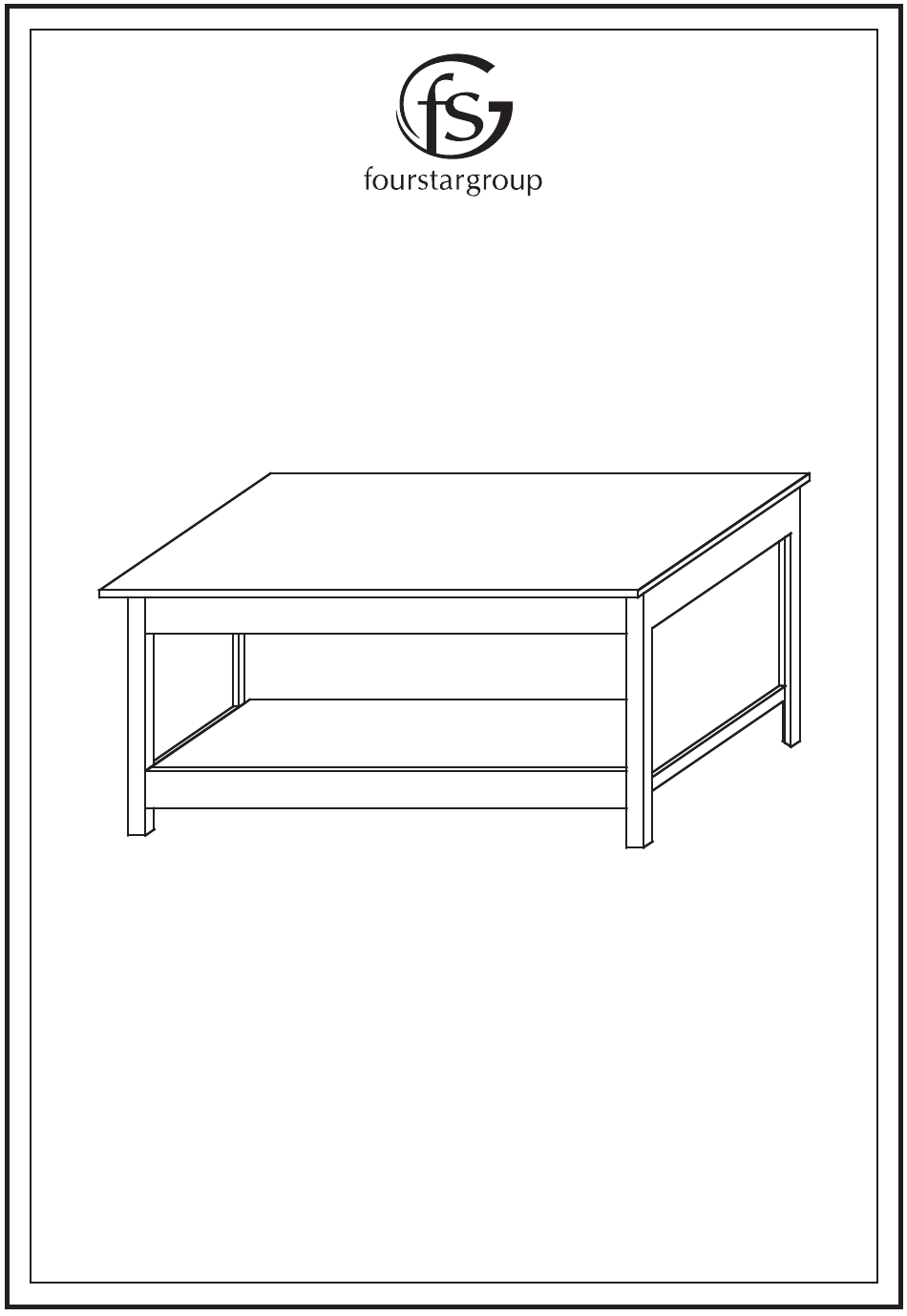

- Page 1 MODEL: 11221721 COFFEE TABLE...
-
Page 2: Hardware List
PARTS LIST AND HARDWARE HARDWARE LIST LEG PANEL 2 PCS BOTTOM PANEL 1 PC SIDE PANEL 2 PCS TOP PANEL 1 PC CAMLOCK PIN 12 PCS CAMLOCK 12 PCS WOOD DOWEL 4 PCS BOLT 4 PCS WASHER 4 PCS ALLEN WRENCH 1 PC... - Page 3 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. STEP 1 ATTACH CAMLOCK PIN (E) AND WOOD DOWEL (G) TO LEG PANEL (A) AS SHOWN.
- Page 4 STEP 2 2.1 ATTACH CAMLOCK (F) TO THE HOLES OF BOTTOM PANEL (B) AND SIDE PANEL (C) AS SHOWN. 2.2 ATTACH SIDE PANEL (C) TO BOTTOM PANEL (B) USING CAMLOCK PIN (E) AS SHOWN.
- Page 5 STEP 3 ATTACH LEG PANEL (A) TO BOTTOM PANEL (B) AND SIDE PANEL (C) USING CAMLOCK PIN (E) AND WOOD DOWEL (G) AS SHOWN.
- Page 6 STEP 4 ATTACH TOP PANEL (D) TO LEG PANEL (A) USING BOLT (H), WASHER (I) AND ALLEN WRENCH (J) AS SHOWN. Please include the following information in your email: Do you have any questions? Missing small parts or hardware? • Where item was purchased If you need assistance with the assembly of your COFFEE •...
