MODEL: 11222306

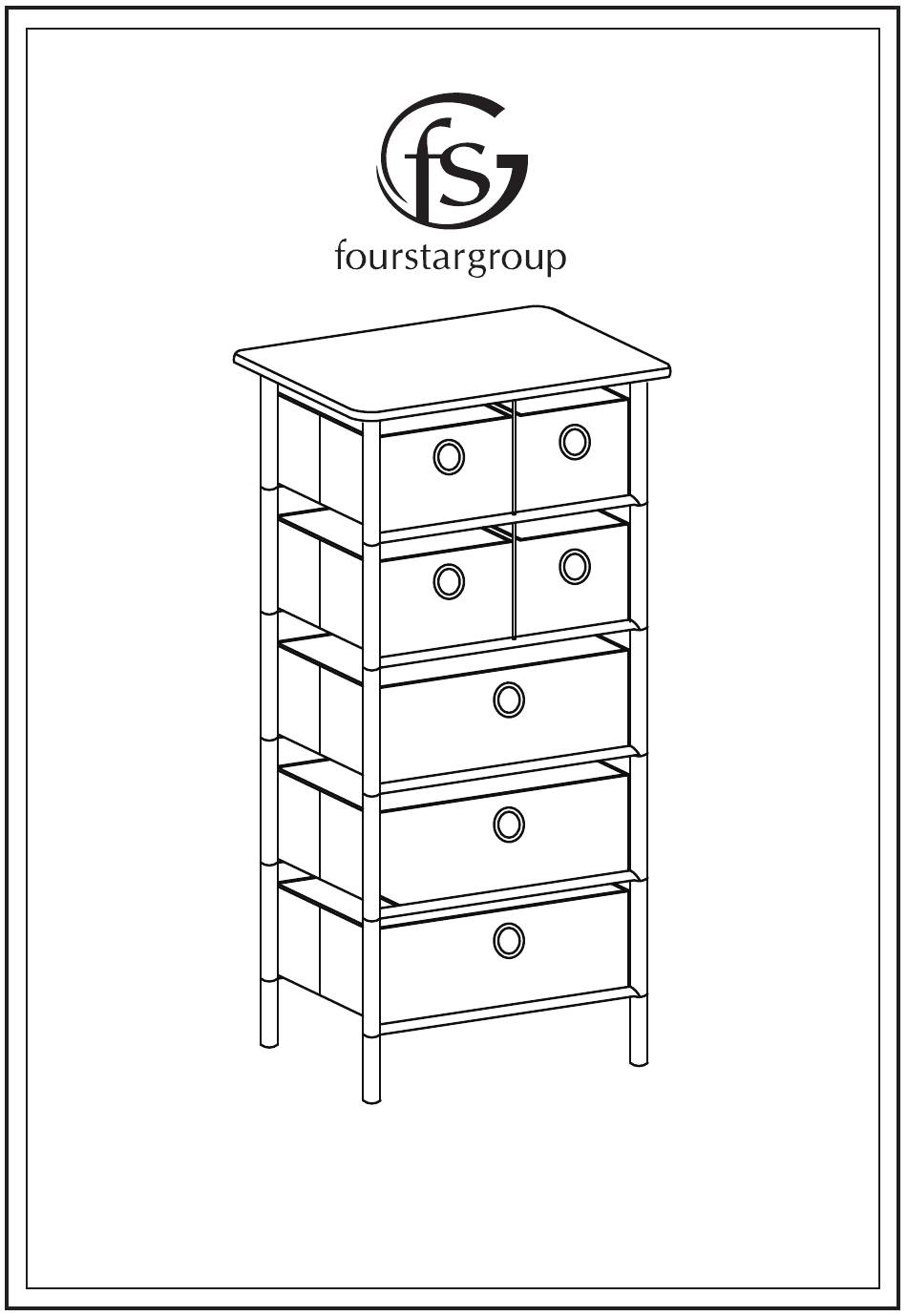

7 BIN STORAGE ORGANIZER

Advertisement

loading
Need help?

Need help?

Do you have a question about the 11222306 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FourStarGroup 11222306

Summary of Contents for FourStarGroup 11222306

  • Page 1 MODEL: 11222306 7 BIN STORAGE ORGANIZER...

  • Page 2: Parts And Hardware

    PARTS AND HARDWARE HARDWARE LIST TOP SPINDLE 4 PCS MIDDLE SPINDLE 16 PCS FOOT 4 PCS TOP SHELF WITH THROUGH HOLE 1 PC MEDIUM SHELF WITH SEMI- HOLE 1 PC BOTTOM SHELF WITHOUT HOLE 3 PCS WIRE SHELF 2 PCS SMALL NON-WOVEN BIN 4 PCS SMALL BOTTOM BIN BOARD...
  • Page 3 ASSEMBLY INSTRUCTIONS CAUTION: 1. READ THIS INSTRUCTION MANUAL BEFORE YOU ASSEMBLE. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO FINISH OF TABLE. STEP 1 ATTACH TOP SPINDLES (A) TO TOP PANEL (L) AS SHOWN. STEP 2 SCREW CLOCKWISE CONNECTOR BOLTS (M) INTO TOP SPINDLES (A) AS SHOWN.
  • Page 4 STEP 3 INSERT WIRE SHELF (G) INTO HOLES OF TOP SHELF (D), THEN ATTACH TOP SHELF (D) ON BOLTS (M) USING MIDDLE SPINDLES (B) AS SHOWN. STEP 4 SCREW CLOCKWISE CONNECTOR BOLTS (M) INTO MIDDLE SPINDLES (B), INSERT THE MIDDLE WIRE SHELF (G) IN HOLES OF TOP SHELF (D) AS SHOWN.
  • Page 5 STEP 5 ATTACH MEDIUM SHELF (E) TO BOLTS (M) USING MIDDLE SPINDLES (B), MAKE SURE WIRE SHELF (G) INSERT THE HOLES OF MEDIUM SHELF (E). STEP 6 SCREW CLOCKWISE CONNECTOR BOLTS (M) INTO MIDDLE SPINDLES (B) AS SHOWN.
  • Page 6 STEP 7 ATTACH BOTTOM SHELF (F) TO CONNECTOR BOLTS (M) USING MIDDLE SPINDLES (B) AS SHOWN. STEP 8 SCREW CLOCKWISE CONNECTOR BOLTS (M) INTO MIDDLE SPINDLES (B) AS SHOWN.
  • Page 7 STEP 9 ATTACH BOTTOM SHELF (F) TO CONNECTOR BOLTS (M) USING MIDDLE SPINDLES (B) AS SHOWN.
  • Page 8 STEP 10 SCREW CLOCKWISE CONNECTOR BOLTS (M) INTO MIDDLE SPINDLES (B) AS SHOWN.
  • Page 9 STEP 11 ATTACH BOTTOM SHELF (F) TO CONNECTOR BOLTS (M) USING FOOTS (C) AS SHOWN. STEP 12 UNFOLD SMALL NON-WOVEN BIN (H) AND LARGE NON-WOVEN BIN (J), PUT SMALL BOTTOM BIN BOARD (I) AND LARGE BOTTOM BIN BOARD (K) ONTO SMALL NON-WOVEN BIN (H) AND LARGE NON-WOVEN BIN (J).
  • Page 10 STEP 13 PLACE SMALL NON-WOVEN BINS (H) AND LARGE NON-WOVEN BINS (J) ONTO SHELVES AS SHOW. Please include the following information in your email: Do you have any questions? Missing small parts or hardware? • Where item was purchased If you need assistance with the assembly of your 7 BIN •...
