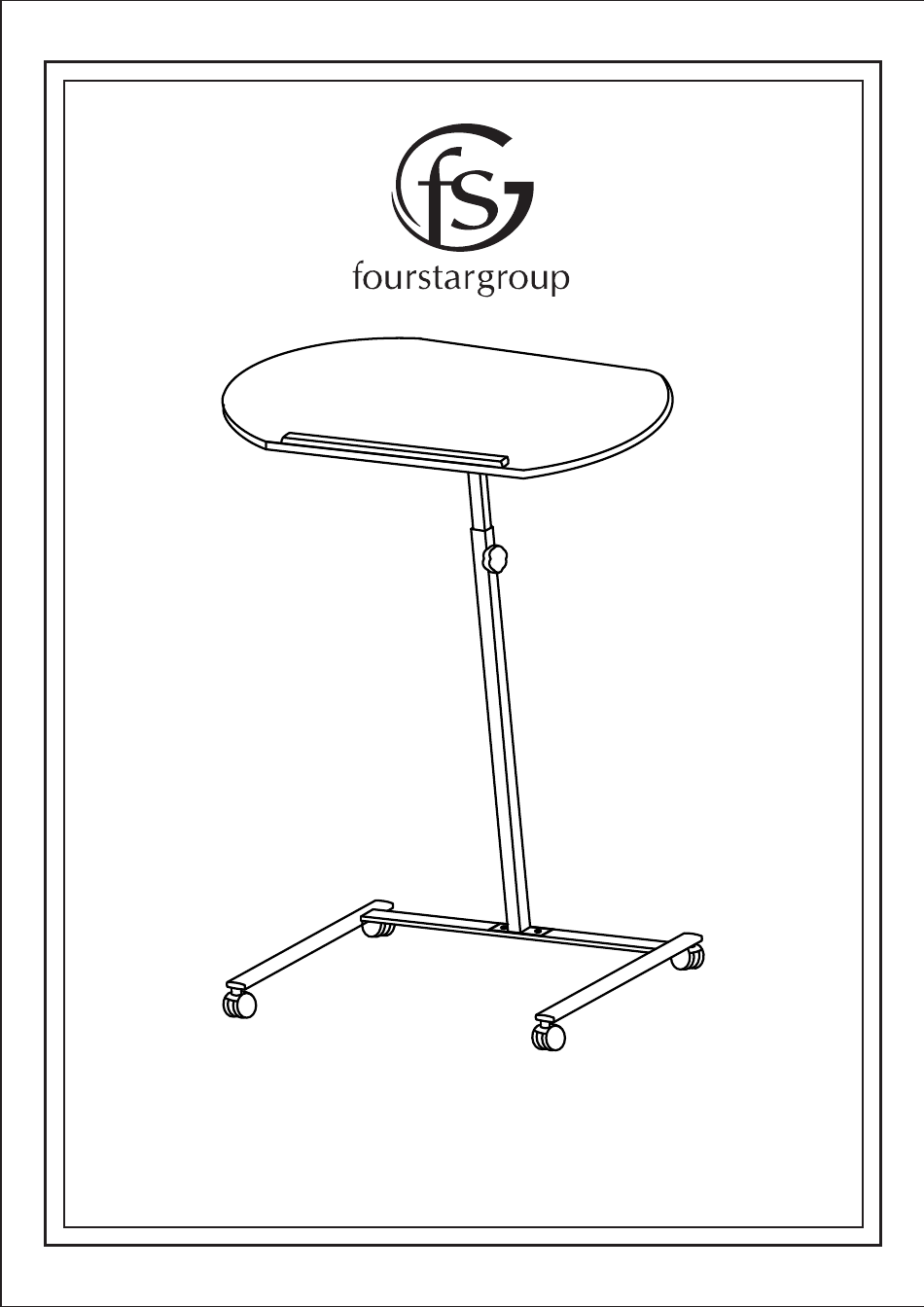

FourStarGroup 11221299VR Assembly Instructions Manual

Laptop desk

MODEL: 11221299VR

LAPTOP DESK

Table of Contents

Need help?

Do you have a question about the 11221299VR and is the answer not in the manual?

Page 1 MODEL: 11221299VR LAPTOP DESK...
Page 2 PARTS LIST PARTS LIST SUPPORT BASE 1 PC LOWER SUPPORT BAR 1 PC UPPER SUPPORT BAR 1 PC TILT PLATE 1 PC BRACKET 2 PCS TOP PANEL 1 PC BOLT 25MM (LARGE) 2 PCS BOLT 10MM (SMALL) 6 PCS 2 PCS HEAD BOLT (8MM) 1 PC WASHER...
Page 3 ASSEMBLY INSTRUCTIONS CAUTION: 1. READ THIS INSTRUCTION MANUAL BEFORE YOU ASSEMBLE. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO THE PRODUCT FINISH. STEP 1. ATTACH CASTORS (M) AND LOCKING CASTORS (N) TO SUPPORT BASE (A) WITH LARGE WRENCH (P) AS SHOWN.
Page 4 STEP 2. ATTACH LOWER SUPPORT BAR (B) TO SUPPORT BASE (A) USING LARGE BOLTS (G) AND NUTS (I) WITH PROVIDED ALLEN WRENCH (Q) AND SMALL WRENCH (O) AS SHOWN. STEP 3. ATTACH TILT PLATE (D) TO UPPER SUPPORT BAR (C) USING WASHER (K) AND HEAD BOLT (J) AS SHOWN.
Page 5 STEP 4 ATTACH UPPER SUPPORT BAR (C) TO TOP PANEL (F) USING BRACKETS (E) AND SMALL BOLTS (H) WITH PROVIDED ALLEN WRENCH (O) AS SHOWN.
Page 6 STEP 5. ATTACH (STEP 4) COMPLETED ASSEMBLY TO (STEP 2) COMPLETED ASSEMBLY USING HEAD BOLT (L) AS SHOWN. Do you have any questions? Missing small parts or hardware? Please include the following information in your email: • Where item was purchased If you need assistance with the assembly of your LAPTOP DESK •...
