FourStarGroup 11221299VN Quick Start Manual

Laptop desk

Download this manual

MODEL: 11221299VN

LAPTOP DESK

Need help?

Do you have a question about the 11221299VN and is the answer not in the manual?

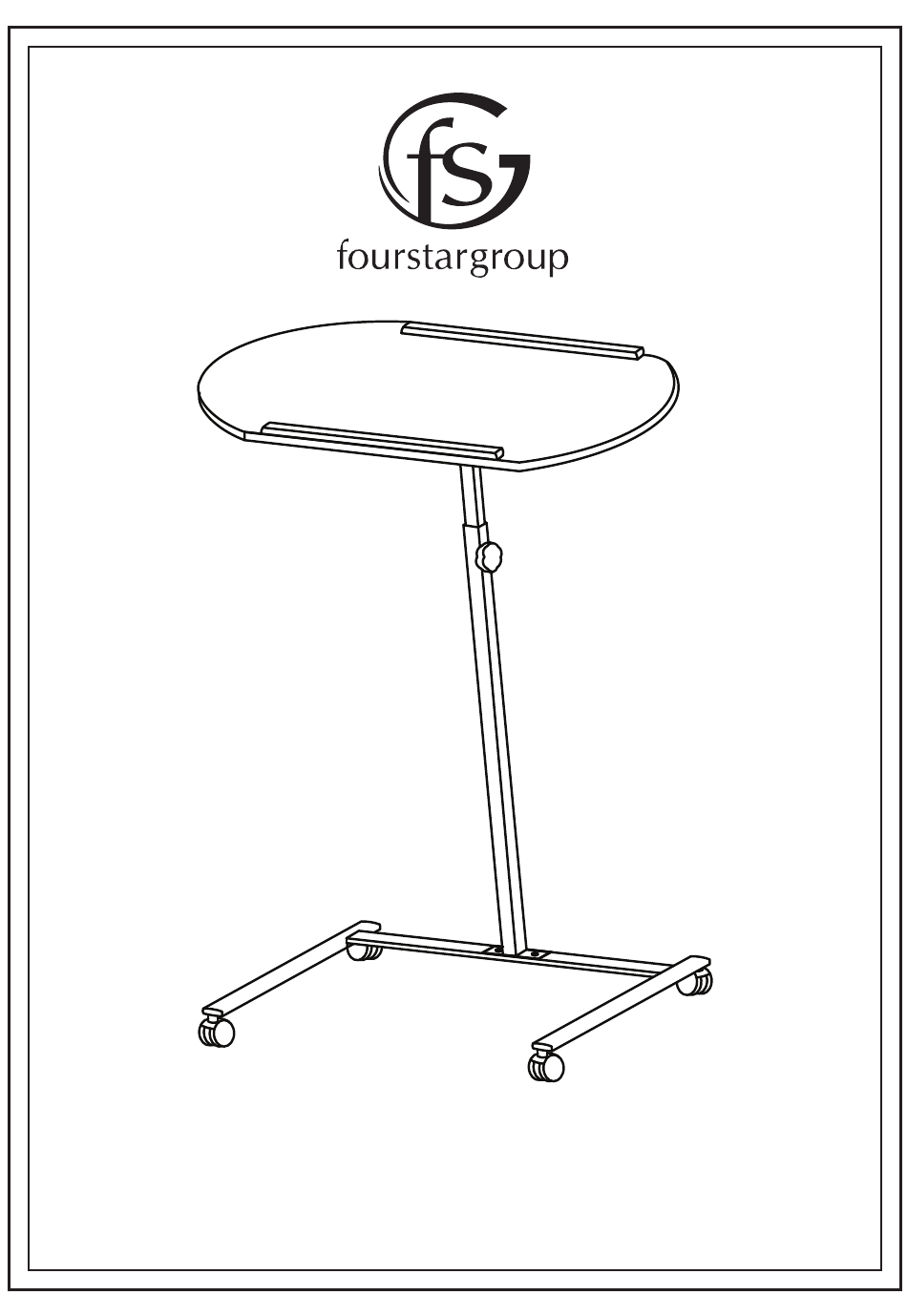

Page 1 MODEL: 11221299VN LAPTOP DESK...
Page 2: Parts List
PARTS LIST PARTS LIST SUPPORT BASE 1 PC LOWER SUPPORT BAR 1 PC UPPER SUPPORT BAR 1 PC TILT PLATE 1 PC LINK 2 PCS TOP PANEL 1 PC BOLT 25MM 2 PCS BOLT 10MM 6 PCS 2 PCS HEAD BOLT (8MM) 1 PC WASHER 1 PC...
Page 3 ASSEMBLY INSTRUCTIONS CAUTION: 1. READ THIS INSTRUCTION MANUAL BEFORE YOU ASSEMBLE. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO THE PRODUCT FINISH. STEP 1 ATTACH CASTORS (M) AND LOCKING CASTORS (N) TO SUPPORT BASE (A) WITH LARGE WRENCH (P) AS SHOWN.
Page 4 STEP 2 ATTACH LOWER SUPPORT BAR (B) TO SUPPORT BASE (A) USING BOLTS (G) AND NUTS (I) WITH PROVIDED ALLEN WRENCH (Q) AND SMALL WRENCH (O) AS SHOWN. STEP 3 ATTACH TILT PLATE (D) TO UPPER SUPPORT BAR (C) USING WASHER (K) AND HEAD BOLT (J) AS SHOWN.
Page 5 STEP 4 ATTACH UPPER SUPPORT BAR (C) TO TOP PANEL (F) USING LINKS (E) AND BOLTS (H) WITH PROVIDED ALLEN WRENCH (O) AS SHOWN.
Page 6 STEP 5 ATTACH STEP 4 COMPLETED ASSEMBLY TO STEP 2 COMPLETED ASSEMBLY USING HEAD BOLT (L) AS SHOWN. Do you have any questions? Missing small parts or hardware? Please include the following information in your email: • Where item was purchased If you need assistance with the assembly of your LAPTOP DESK •...
