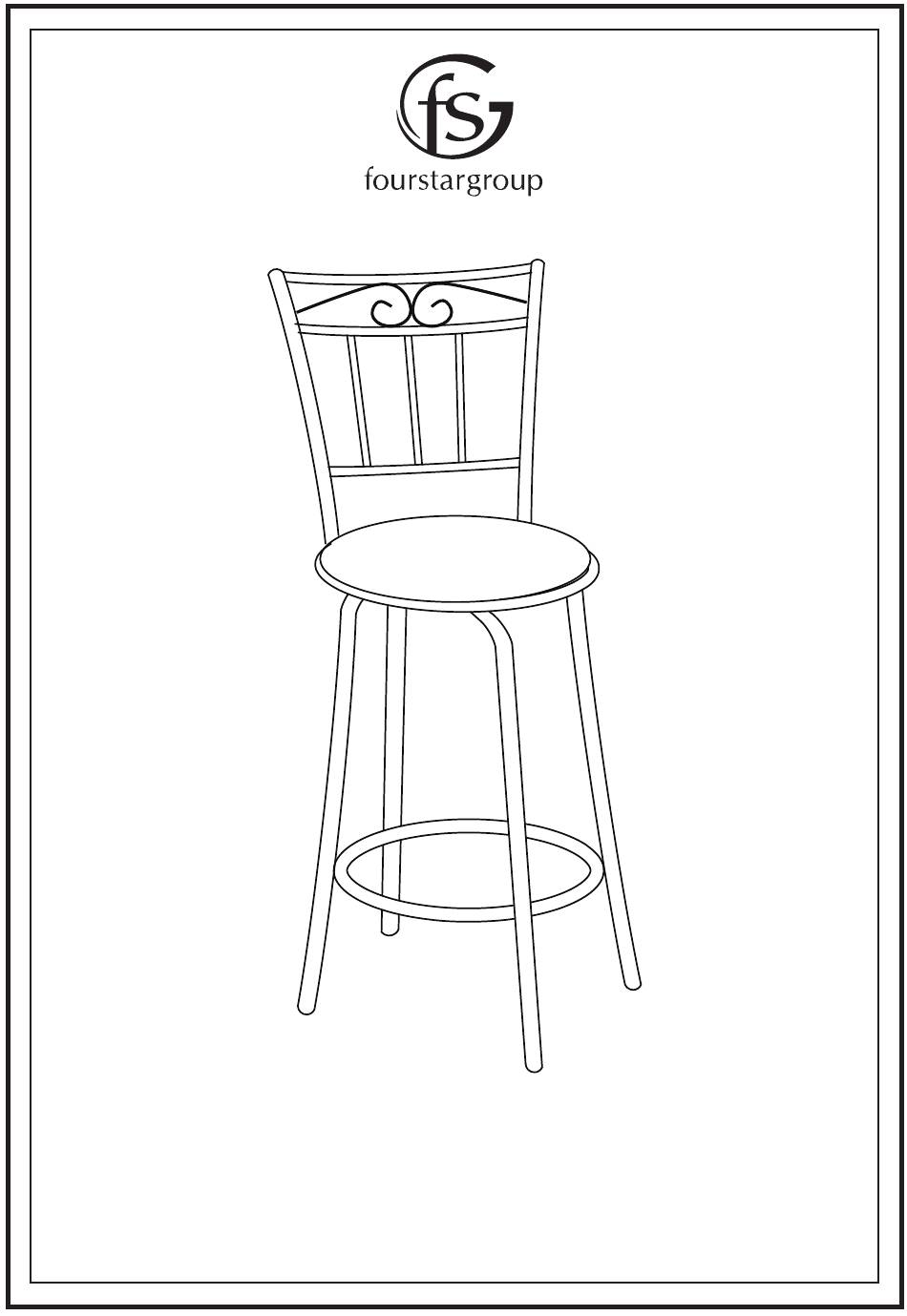

- Page 1 MODEL: 11221364A SWIVEL BARSTOOL...
- Page 2 PARTS LIST AND HARDWARE BACK SEAT CIRCLE CONNECTOR 4PCS CONNECT LEG LEG (ABOVE) LEG (BELOW) CUSHION SWIVEL TRAY 8PCS SHORT BOLT ( in.) 4PCS LONG BOLT (1- in.) MIDDLE BOLT (1 in.) 2PCS SPRING WASHER 2PCS 2PCS WASHER WOOD SCREW 4PCS ALLEN WRENCH...
- Page 3 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN , PLEASE FOLLOW ASSEMBLY INSTRUCTION CAREFULLY , FOLLOW STEP BY STEP. STEP 1 Cross center bars of both legs (E) and (F). STEP 2 Attach connect leg (D) to each leg using circle connector (C) and long bolt (J) as shown.
- Page 4 STEP 3 Attach back (A) to seat (B) as shown. STEP 4 Turn it upside down and tighten middle bolt (J1) with spring washer (K) and washer (L) as shown.
- Page 5 STEP 5 Attach swivel tray (H) to frame (STEP 4) using short bolt (I) as shown. STEP 6 Attach seat frame (STEP 4) onto leg frame (STEP 2) using short bolt (I) as shown.
- Page 6 STEP 7 Attach cushion (G) onto seat frame (STEP 6) using wood screw (M) as shown. * ATTN: TIGHTEN ALL BOLTS* Please include the following information in your email: Do you have any questions? Missing small parts or hardware? • Where item was purchased If you need assistance with the assembly of your •...
