FourStarGroup 11221427BF Quick Start Manual

3 bin storage organizer

Download this manual

MODEL: 11221427BF

3 BIN STORAGE ORGANIZER

Need help?

Do you have a question about the 11221427BF and is the answer not in the manual?

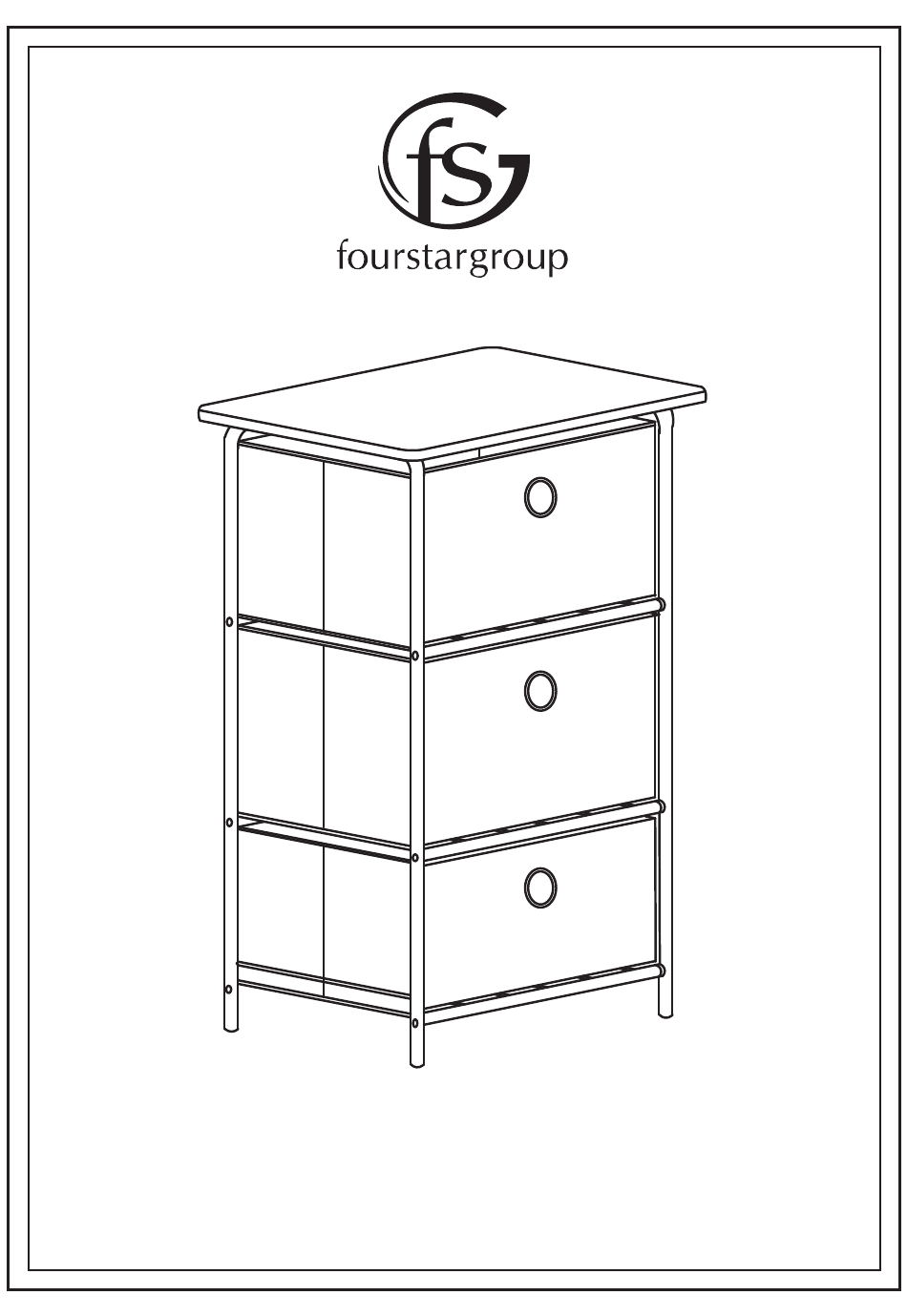

Page 1 MODEL: 11221427BF 3 BIN STORAGE ORGANIZER...
Page 2: Parts List
PARTS LIST HARDWARE LIST LEG FRAME 2PCS WIRE SHELF 3PCS NON-WOVEN BIN 3PCS BOTTOM BIN SUPPORT 3PCS TOP PANEL METAL WIRE 2PCS SCREW 4PCS PLASTIC WASHER 12PCS BOLT (30 MM) 12PCS BOLT (12 MM) 4PCS ALLEN WRENCH CAUTION: 1. READ THIS INSTRUCTION MANUAL BEFORE YOU ASSEMBLE. 2.
Page 3 ASSEMBLY INSTRUCTIONS STEP 1 ATTACH WIRE SHELF (B) TO LEG FRAMES (A) USING BOLTS (I) AND PLASTIC WASHERS (H) WITH PROVIDED ALLEN WRENCH (K) AS SHOWN. * DO NOT TIGHTEN THE BOLTS AT THIS TIME.
Page 4 STEP 2 REPEAT STEP 1, ATTACH WIRE SHELF (B) TO LEG FRAMES (A) USING BOLTS (I) AND PLASTIC WASHERS (H) WITH PROVIDED ALLEN WRENCH (K) AS SHOWN.
Page 5 STEP 3 REPEAT STEP 1, ATTACH WIRE SHELF (B) TO LEG FRAMES (A) USING BOLTS (I) AND PLASTIC WASHERS (H) WITH PROVIDED ALLEN WRENCH (K) AS SHOWN.
Page 6 STEP 4 ATTACH METAL WIRES (F) TO LEG FRAMES (A) USING BOLTS (J) AS SHOWN. STEP 5 ATTACH LEG FRAMES (A) TO TOP PANEL (E) USING SCREWS (G) AS SHOWN. * TIGHTEN ALL THE BOLTS AT THIS TIME.
Page 7 STEP 6 UNFOLD NON-WOVEN BIN (C) AND PUT THE BOTTOM BIN SUPPORT (D) INTO NON-WOVEN BIN (C) AS SHOWN.
Page 8 STEP 7 PLACE NON-WOVEN BIN (C) ONTO THE SHELVES AS SHOWN. Do you have any questions? Missing small parts or hardware? Please include the following information in your email: • Where item was purchased If you need assistance with the assembly of your 3 BIN •...
