MODEL: 11221610V

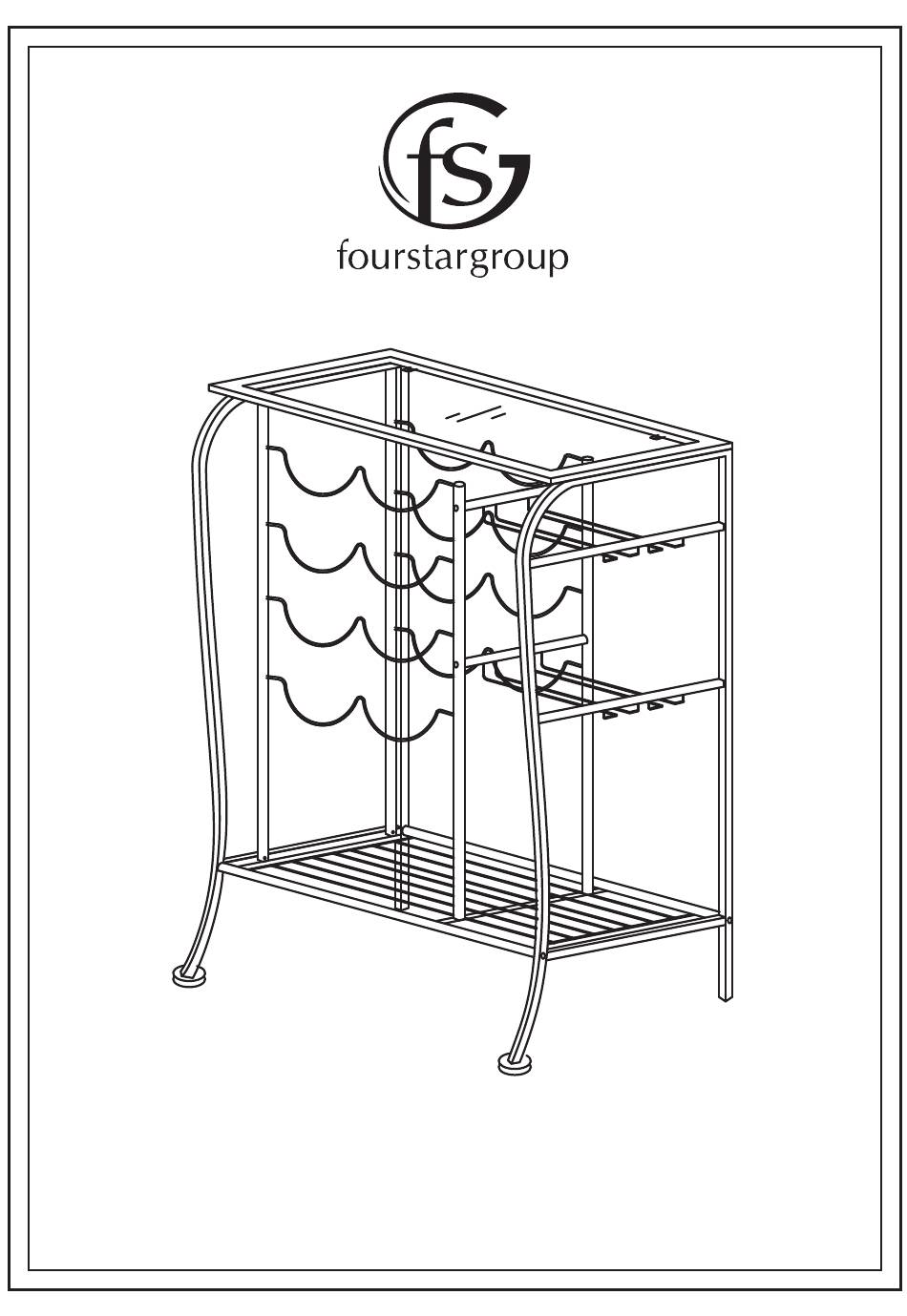

GLASS TOP WINE RACK

Need help?

Do you have a question about the 11221610V and is the answer not in the manual?

Page 1 MODEL: 11221610V GLASS TOP WINE RACK...
Page 2: Parts List
PARTS LIST HARDWARE LIST LEFT LEG RIGHT LEG WINE RACK 2PCS BOTTOM SHELF BIG GLASS HOLDER SMALL GLASS HOLDER TOP FRAME GLASS TOP SUCTION CUP 4PCS 16PCS LONG BOLT (3/4 IN.) SHORT BOLT (1/2 IN.) 4PCS ALLEN WRENCH...
Page 3 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. STEP 1 ATTACH BOTTOM SHELF (D) TO LEFT LEG (A) AND RIGHT LEG (B) USING LONG BOLT (J) AS SHOWN. *DO NOT COMPLETELY TIGHTEN THE BOLTS AT THIS TIME. J LONG BOLT - 4 PCS...
Page 4 STEP 2: ATTACH LEFT LEG (A) AND RIGHT LEG (B) TO TOP FRAME (G) AND ATTACH WINE RACK (C) TO LEFT LEG (A) AND BOTTOM SHELF (D) USING LONG BOLT (J) AND SHORT BOLT (K) AS SHOWN. J LONG BOLT - 6 PCS K SHORT BOLT - 2 PCS...
Page 5 STEP 3: ATTACH BIG GLASS HOLDER (E) TO THE UPPER OF RIGHT LEG (B) AND WINE RACK (C) USING LONG BOLT (J) AND SHORT BOLT (K), THEN ATTACH SMALL GLASS HOLDER (F) TO THE MIDDLE OF RIGHT LEG (B) AND WINE RACK (C) USING LONG BOLT (J) AND SHORT BOLT (K) AS SHOWN.
Page 6 STEP 4: PUT SUCTION CUP (I) ONTO THE HOLE OF TOP FRAME (G), THEN PLACE GLASS TOP (H) ONTO TOP FRAME (G) AS SHOWN. Do you have any questions? Missing small parts or hardware? Please include the following information in your email: If you need assistance with the assembly of your GLASS TOP •...
