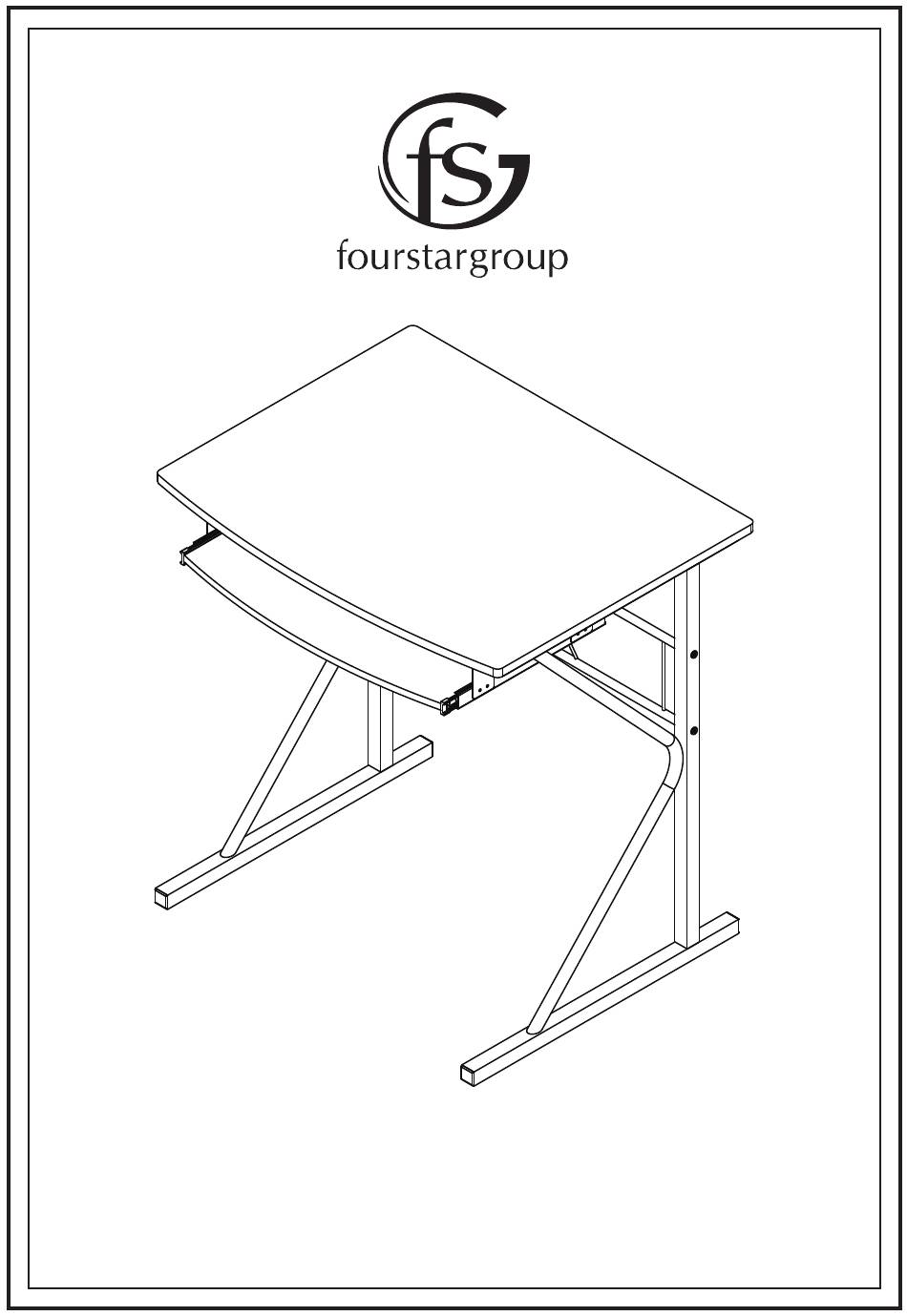

- Page 1 MODEL: 11222327 METAL COMPUTER DESK...
-
Page 2: Parts And Hardware
PARTS AND HARDWARE HARDWARE LIST TABLE TOP 1 PC 2 PCS LINK 1 PC BACK FRAME 1 PC LEFT SLIDER 1 PC RIGHT SLIDER 1 PC KEYBOARD PANEL 1 PC BOLT 10 PCS WOOD SCREW 16 PCS ALLEN WRENCH 1 PC... - Page 3 ASSEMBLY INSTRUCTIONS CAUTION: 1. READ THIS INSTRUCTION MANUAL BEFORE YOU ASSEMBLE. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO THE PRODUCT FINISH. ASSEMBLY TOOL REQUIRED PHILIPS SCREWDRIVER STEP 1 ATTACH LINK (C) AND BACK FRAME (D) TO LEGS (B) USING BOLTS (H) AS SHOWN.
- Page 4 STEP 2 ATTACH LEFT SLIDER (E) AND RIGHT SLIDER (F) TO KEYBOARD PANEL (G) USING WOOD SCREWS (I) AS SHOWN.
- Page 5 STEP 3 ATTACH STEP 2 FINISHED PART TO TABLE TOP (A) USING WOOD SCREWS (I) AS SHOWN.
- Page 6 STEP 4 ATTACH STEP 1 FINISHED PART TO STEP 3 FINISHED PART USING BOLTS (H) AS SHOWN. Please include the following information in your email: Do you have any questions? Missing small parts or hardware? • Where item was purchased If you need assistance with the assembly of your METAL •...
