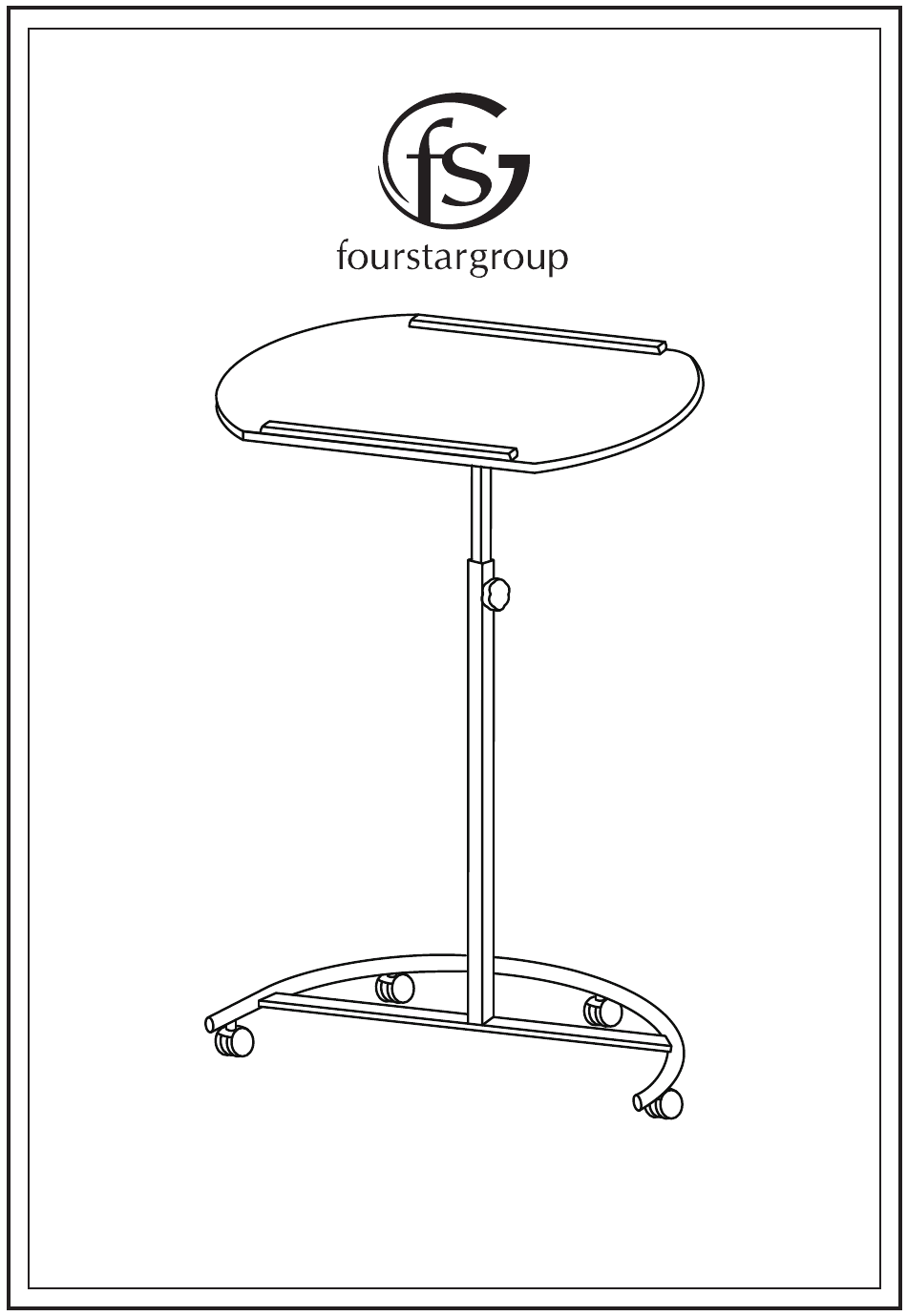

- Page 1 MODEL: 11222236F LAPTOP PODIUM...
- Page 2 PARTS AND HARDWARE HARDWARE LIST SUPPORT BASE 1 PC LOWER SUPPORT BAR 1 PC UPPER SUPPORT BAR 1 PC TILT PLATE 1 PC LINK 2 PCS TOP PANEL 1 PC BOLT 25MM 2 PCS BOLT 10MM 6 PCS 2 PCS HEAD BOLT (6MM) 1 PC HEAD BOLT (8MM)
- Page 3 ASSEMBLY INSTRUCTIONS CAUTION: 1. READ THIS INSTRUCTION MANUAL BEFORE YOU ASSEMBLE. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO FINISH OF TABLE. STEP 1 ATTACH CASTORS (M) AND LOCKING CASTORS (N) TO SUPPORT BASE (A) WITH LARGE WRENCH (P) AS SHOWN. *DO NOT TIGHTEN THE BOLTS AT THIS TIME.
- Page 4 STEP 2 ATTACH LOWER SUPPORT BAR (B) TO SUPPORT BASE (A) USING BOLTS (G) AND NUTS (I) WITH PROVIDED ALLEN WRENCH (Q) AND SMALL WRENCH (O) AS SHOWN.
- Page 5 STEP 3 ATTACH TILT PLATE (D) TO UPPER SUPPORT BAR (C) USING WASHER (L) AND HEAD BOLT (K) AS SHOWN. STEP 4 ATTACH UPPER SUPPORT BAR (C) TO TOP PANEL (F) USING LINKS (E) AND BOLTS (H) WITH PROVIDED ALLEN WRENCH (Q) AS SHOWN.
- Page 6 STEP 5 ATTACH STEP 4 COMPLETED ASSEMBLY TO STEP 2 COMPLETED ASSEMBLY USING HEAD BOLT (J) AS SHOWN. *TIGHTEN ALL BOLTS AT THIS TIME. Please include the following information in your email: Do you have any questions? Missing small parts or hardware? •...
