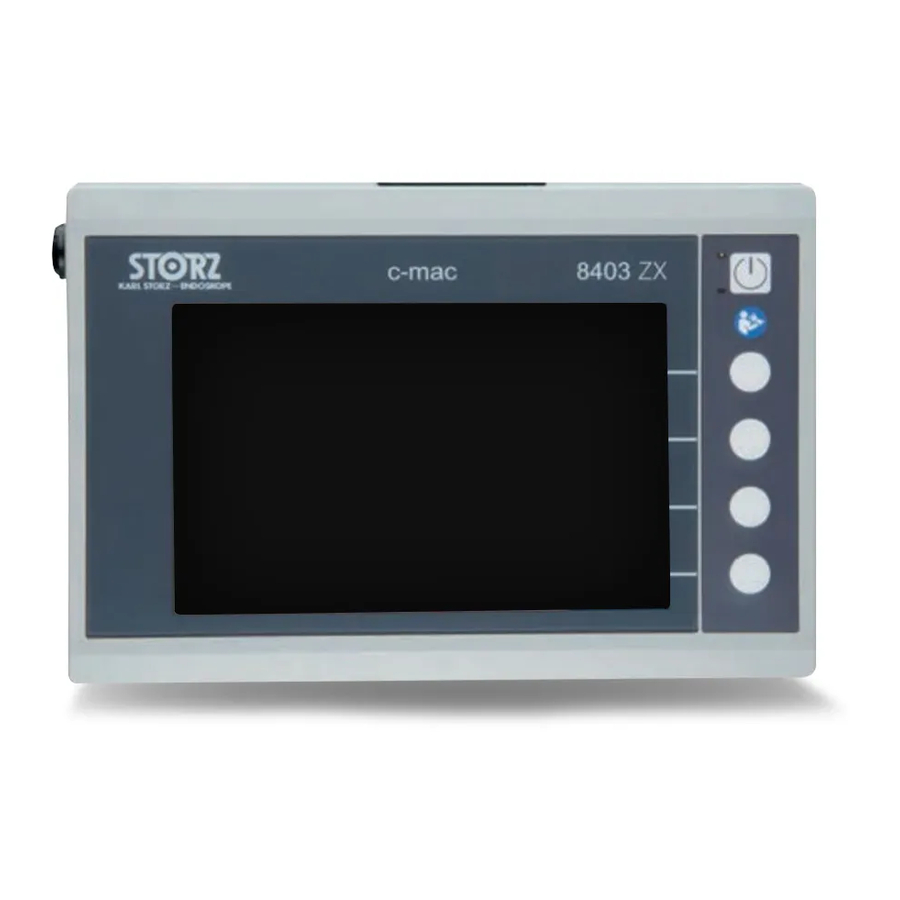

Monitor
KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany
C-MAC
: Easy connect start guide
®
Charger

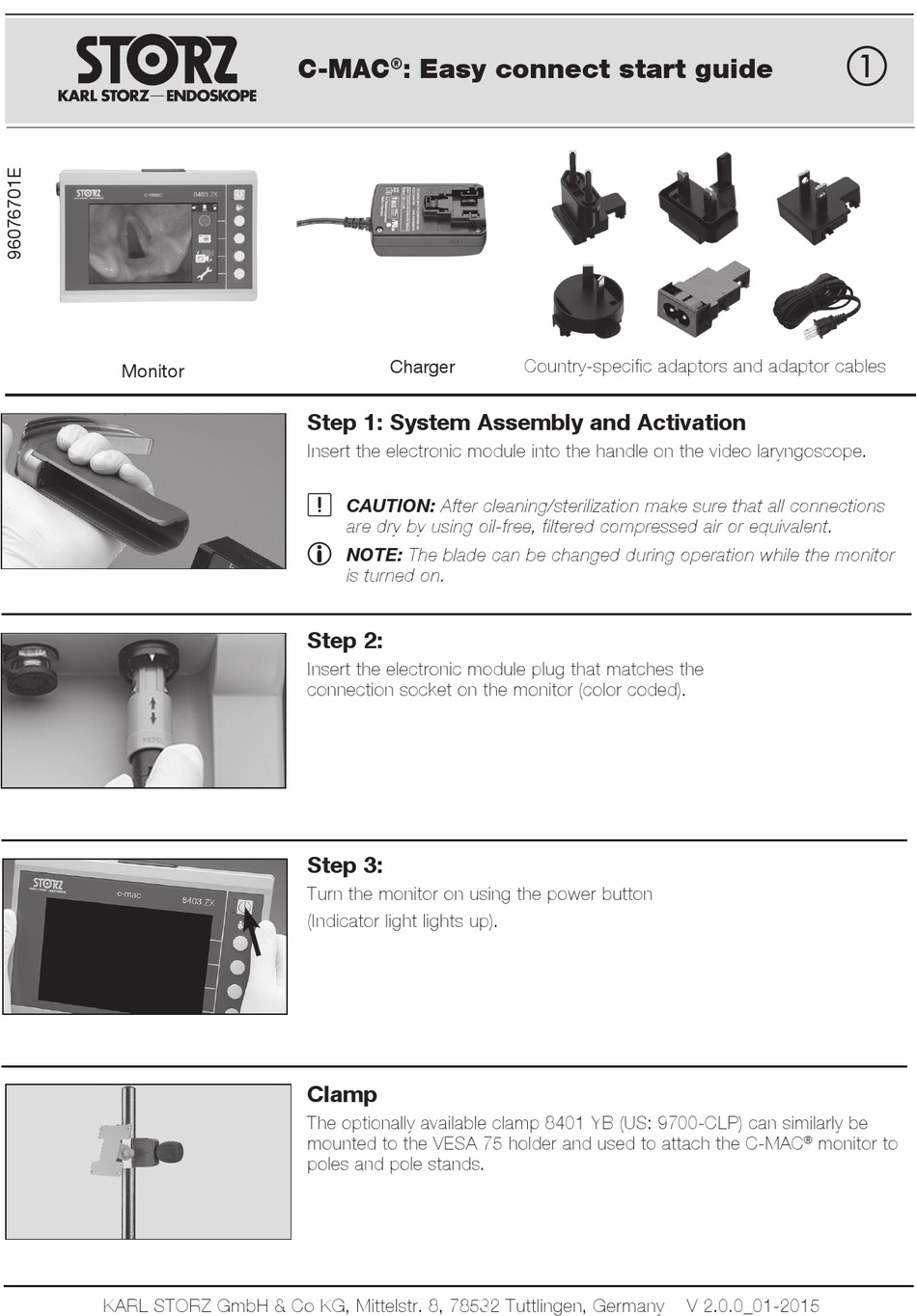

Step 1: System Assembly and Activation
Insert the electronic module into the handle on the video laryngoscope.
2
CAUTION: After cleaning/sterilization make sure that all connections
are dry by using oil-free, filtered compressed air or equivalent.
1
NOTE: The blade can be changed during operation while the monitor
is turned on.
Step 2:
Insert the electronic module plug that matches the
connection socket on the monitor (color coded).
Step 3:
Turn the monitor on using the power button
(Indicator light lights up).
Clamp
The optionally available clamp 8401 YB (US: 9700-CLP) can similarly be
mounted to the VESA 75 holder and used to attach the C-MAC
poles and pole stands.
Country-specific adaptors and adaptor cables
V 2.0.0_01-2015
a
monitor to
®
Advertisement
Related Manuals for Storz C-MAC 8403 ZX
Summary of Contents for Storz C-MAC 8403 ZX
- Page 1 The optionally available clamp 8401 YB (US: 9700-CLP) can similarly be mounted to the VESA 75 holder and used to attach the C-MAC monitor to ® poles and pole stands. KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015...
- Page 2 Once the monitors are connected, power on the C-MAC monitor to display image. ® NOTE: The connected monitor must support a resolution of 1024 × 768 or 1280 × 720. KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015...
-
Page 3: Energy Management
CMOS video unit please refer to the instruction manual which is available for download at www.karlstorz.com. For Technical Support please contact our service department (technicalsupport@karlstorz.de) For KARL STORZ Technical Services in North America, call 1-800-421-0837 KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015... - Page 4 Level 2B is activated at the same time by pressing the softkey. Stop: Level 1: Stops playback and activates the list of Back to Level 1 recordings (Video selection menu). KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015...
- Page 5 (approx. 2 seconds). Deletion may take a few seconds and is indicated by the non- active symbols. KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015...
-
Page 6: Brightness Control
If no software If no videoscope is connected, N.C (not is available on the SD memory card, the connected) appears. symbol is shown in gray. KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015... - Page 7 Unplug the CMOS video unit. Pull the plug of the CMOS video unit out of the black connector on the monitor. CAUTION: Do not pull on the cable. Always grasp the plug to remove the cable. KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015...
- Page 8 For further detailed references on the reprocessing of the C-MAC ® monitor, the electronic module and the CMOS video unit please refer to the respective instruction manual which is available for download at www.karlstorz.com. KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015...
