Tote, Large
Tote, Small
Tall Knob

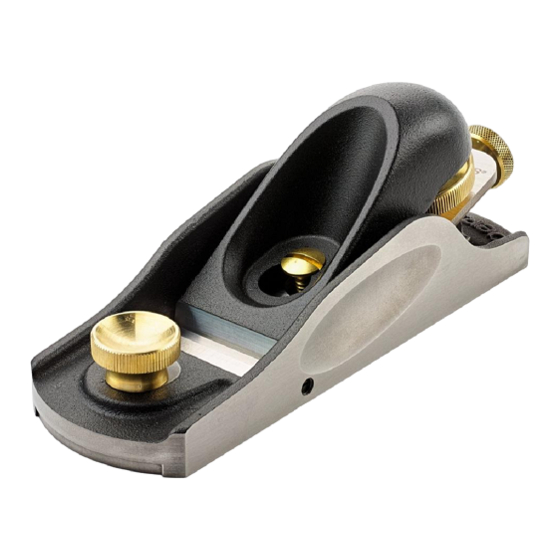

for Low-Angle Block Plane
Our tote and tall knob convert your Veritas
bevel-up smoothing plane. To install the tote, skewing of the blade is required to
gain access to the mounting screws. The tote then slips into place and is prevented
from shifting due to small projections engaging in mating holes at the rear of the
plane body.
Tall Knob

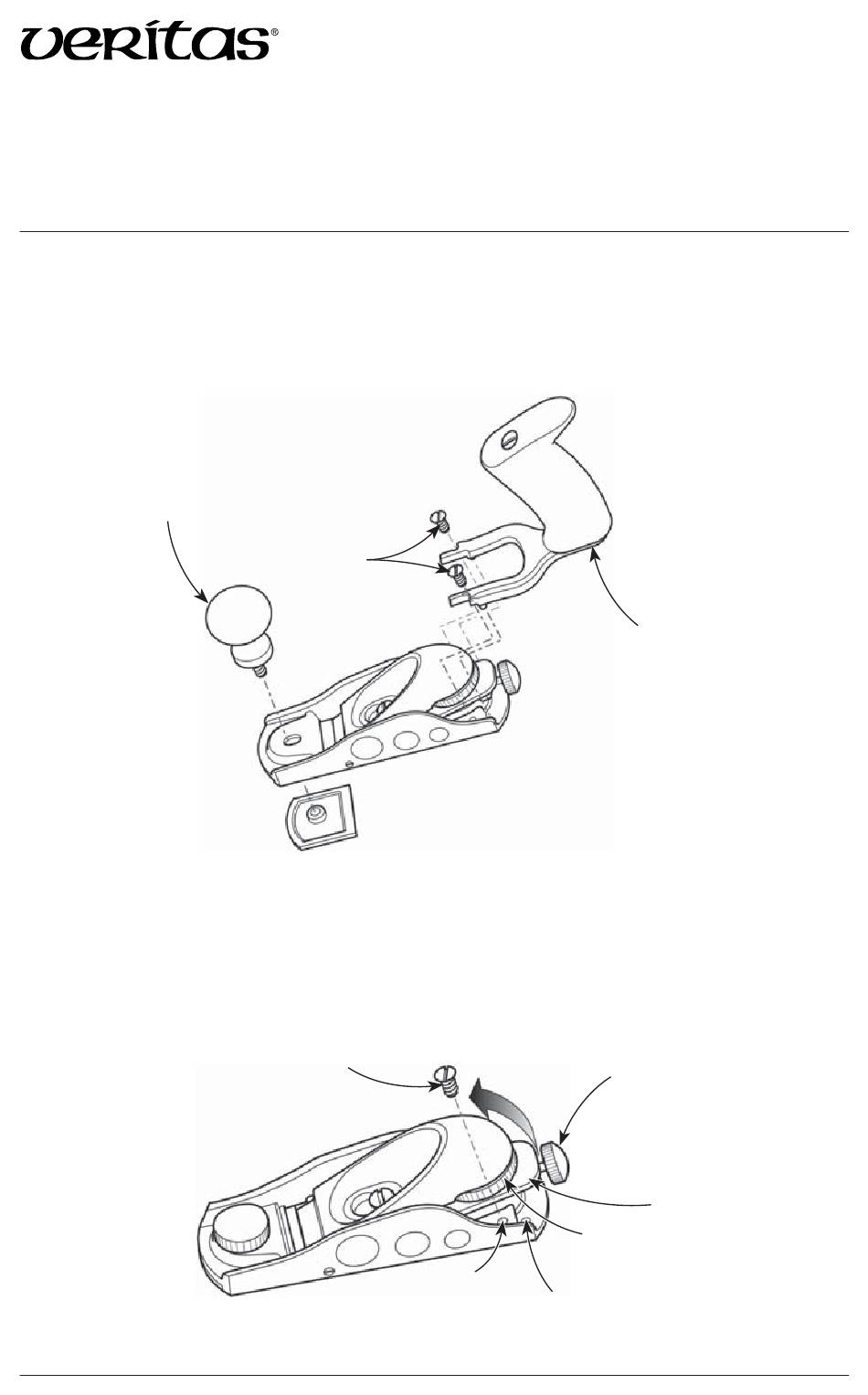

Figure 1: Tote and tall knob assembly.

Tote Installation

Loosen the lever cap wheel and move the adjustment mechanism completely to one
side. This moves the heel of the blade to the opposite side, fully exposing one of the
threaded holes used for mounting the tote (as shown in Figure 2).
Figure 2: Heel of blade moved to expose threaded hole for mounting tote.
Mounting
Screws
Mounting
Screw
Threaded
1
®
Low-Angle Block Plane into a small
Lever Cap
Hole
Hole
05P22.15
05P22.17
05P22.04
Tote
Adjustment
Mechanism
Blade
Wheel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 05P22.15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VERITAS 05P22.15

  • Page 1 05P22.04 for Low-Angle Block Plane ® Our tote and tall knob convert your Veritas Low-Angle Block Plane into a small bevel-up smoothing plane. To install the tote, skewing of the blade is required to gain access to the mounting screws. The tote then slips into place and is prevented from shifting due to small projections engaging in mating holes at the rear of the plane body.
  • Page 2 With the plane resting on a fl at surface, unscrew the brass front knob and replace it with the tall knob, as shown in Figure 4. Tall Knob Brass Front Knob Figure 4: Installing the tall knob. Veritas Tools Inc. Ottawa ON K2H 1C2 Canada veritastools.com © Veritas Tools Inc. 2018 606 INS-325_B...
