VERITAS 05P38.07 Quick Start Manual

Router Plane Fence
The Veritas Router Plane Fence can be positioned on either side of the
plane and will work on both straight and curved workpieces.

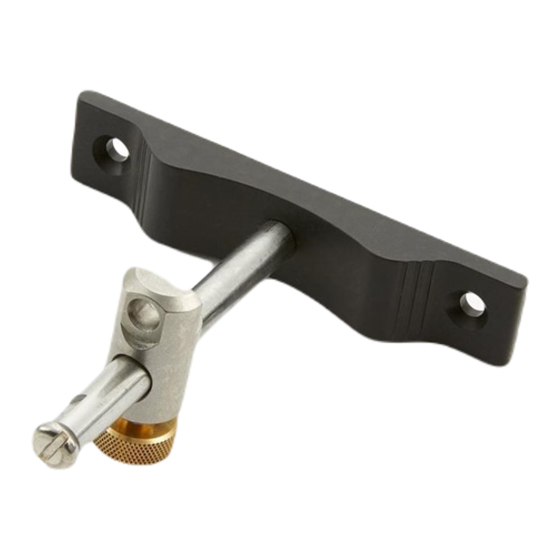

Figure 1: Router plane fence components.

Fence Set-Up

Screw the shaft into the tapped hole in the fence, exposing either the
straight or curved surface as required.
Figure 2: Fence set-up.
To get a good grip on the shaft while securing it to the fence, position
the fence mount such that the knob end will seat on the fl at provided at
the end of the shaft. Tighten the knob, then grasp the fence mount while
tightening the shaft to the fence. The shaft can be loosened from the fence
in a similar manner.
Figure 3: Securing fence to shaft.
Fence Mount
Shaft
Fence
Straight
Screw
Knob
Curved
Flat
05P38.07
