- Page 1 Detail Rabbet Plane U.S. Des. Pat. No. D605,023...

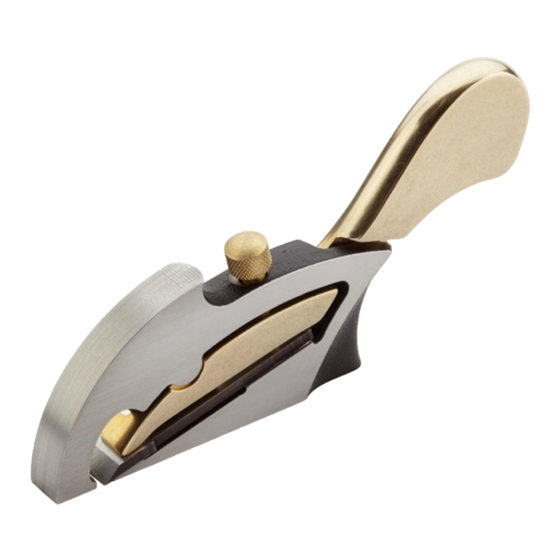

- Page 2 The design of the Veritas ® Detail Rabbet Plane is loosely based on both the Preston and Clifton 400 shoulder planes. As an addition to our shoulder plane line, the detail rabbet plane is primarily useful for small trimming tasks where a narrow chisel would often be used. It is handy for getting into...
- Page 3 Instructions The plane may be used with a push or pull stroke, and held in a variety of ways, as shown below. Figure 2: Gripping the plane. Note: Although the throat is relieved to minimize chip packing, periodic inspection and manual clearing of the throat are nonetheless required. To disassemble the plane, remove the blade clamping screw and slide the blade outward, as shown in Figure 3.
- Page 4 Blade Adjustment Caution: Be aware that the blade is sharp; careless handling can result in serious injury. To adjust the blade depth, skew or lateral projection, nudge a lightly clamped blade with your fi ngers or a small slot screwdriver. Nudge front of blade to adjust lateral projection.
- Page 5 The face of the blade is lapped. Additional sharpening need only involve honing the existing bevel. Because the blade in the detail rabbet plane is aligned with the side of the plane in addition to being parallel to the sole, the cutting edge must be kept perfectly square with the sides of the blade when sharpening it.
- Page 6 " Replacement Blade 05P75.10 10mm Detail Rabbet Plane 05P75.20 10mm Replacement Blade 814 Proctor Avenue 1090 Morrison Drive Ogdensburg, New York Ottawa, Ontario 13669-2205 USA K2H 1C2 Canada INS-389 Rev. C customerservice@veritastools.com © Veritas Tools Inc. 2010 Printed in Canada. www.veritastools.com...
