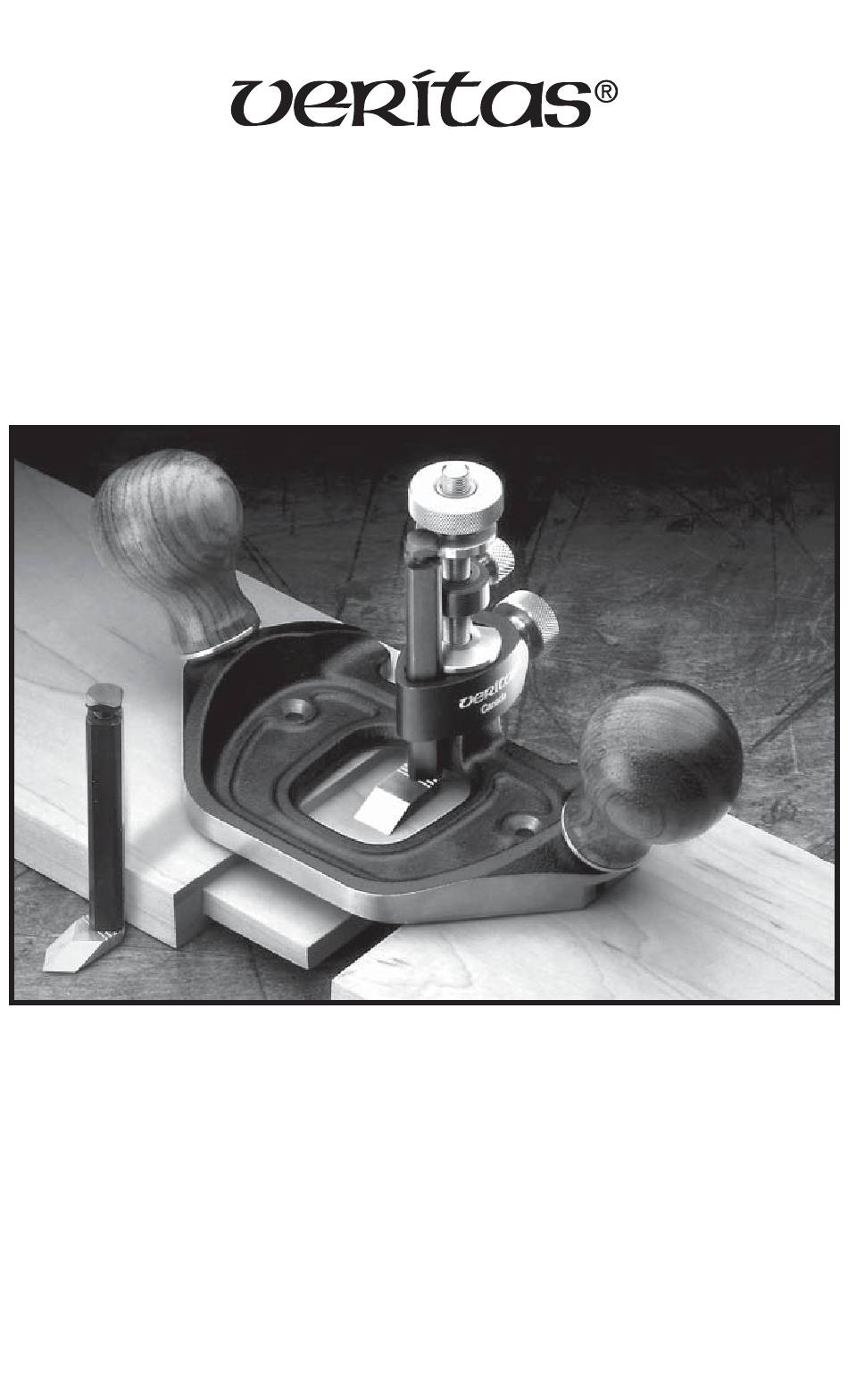

  • Page 1 Router Plane 05P38.01 U.S. Pat. No. 7,950,157...
  • Page 2 ® The Veritas Router Plane is an invaluable tool for work on stop or through dadoes, grooves, or any work that requires an area cut to a precise depth. This is the perfect tool for cleaning out areas for hardware installation, or inlay or intarsia work, allowing you to work with a great degree of control.
  • Page 3 Blade Depth Adjustment Knob Locking Knob Collar Figure 2: Blade attachment. The blade can be positioned on the router plane in any one of four settings. • In the front for general work, • on the back of the post for bullnose work, •...
  • Page 4 Blade Adjustment The blade depth is regulated by a fi ne screw feed that travels " per turn for precision adjustment with the resulting depth of cut controlled by the depth stop. The blade can be adjusted to a depth of 1". Depth Adjustment Knob Blade Depth Stop...
  • Page 5 Blade Sharpening For ease of sharpening either the " straight or the " pointed blade, the blade portion may be removed from the shaft. Whether removing or reattaching the blade, be very careful of the sharp edge. Do not hold the blade shaft in your hand while loosening or tightening the set screw.

  • Page 6: Care And Maintenance

    Care and Maintenance The body of this plane is ductile cast iron and comes treated with rust preventative. Remove this using a rag dampened with mineral spirits. Clean all machined surfaces. We recommend that you initially, then periodically, apply a light coat of paste wax to seal out moisture and prevent rusting;...
  • Page 8 Optional Router Plane Fence 05P38.10 Handle Hardware Kit for Router Plane 814 Proctor Avenue 1090 Morrison Drive Ogdensburg, New York Ottawa, Ontario 13669-2205 USA K2H 1C2 Canada INS-473 Rev. B customerservice@veritastools.com © Veritas Tools Inc. 2011 Printed in Canada www.veritastools.com...
