Note:

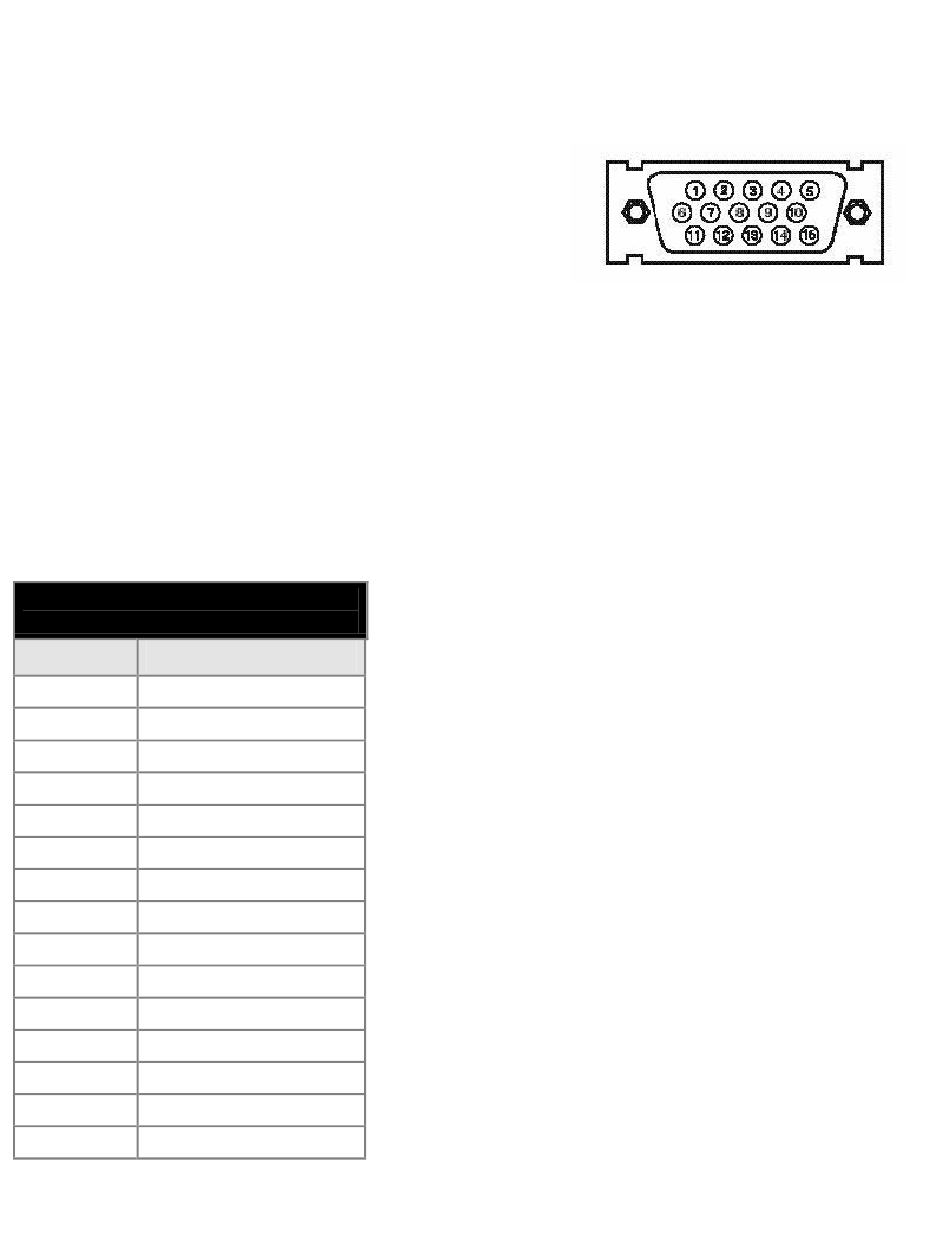

The following figure is the view looking into the pin end of the male connector or solder terminal
end of the female connector.
Composite Video Input Connector: CVBS 1.0V p-p
S-Video: S-VHS LUMA Signal Input 0.7V p-p CHROMA Signal Input 0.7V p-p
Pin assignments for the HD15 video
connector.
Pin
1 Red Video
2 Green Video
3 Blue Video
4 Not Used
5 Return
6 Red Video Ground
7 Green Video Ground
8 Blue Video Ground
9 No Connection
10 Sync Ground
11 Not Used
12 Bi-Directional Data
13 Horizontal Sync
14 Vertical Sync
15 Data Clock (SCL)
Standard Resolution Supported
⇒
800 x 600 (VGA)
