Mobility Sound C600-M12 Quick Start Manual

C600-M12
<Product Descriptions>

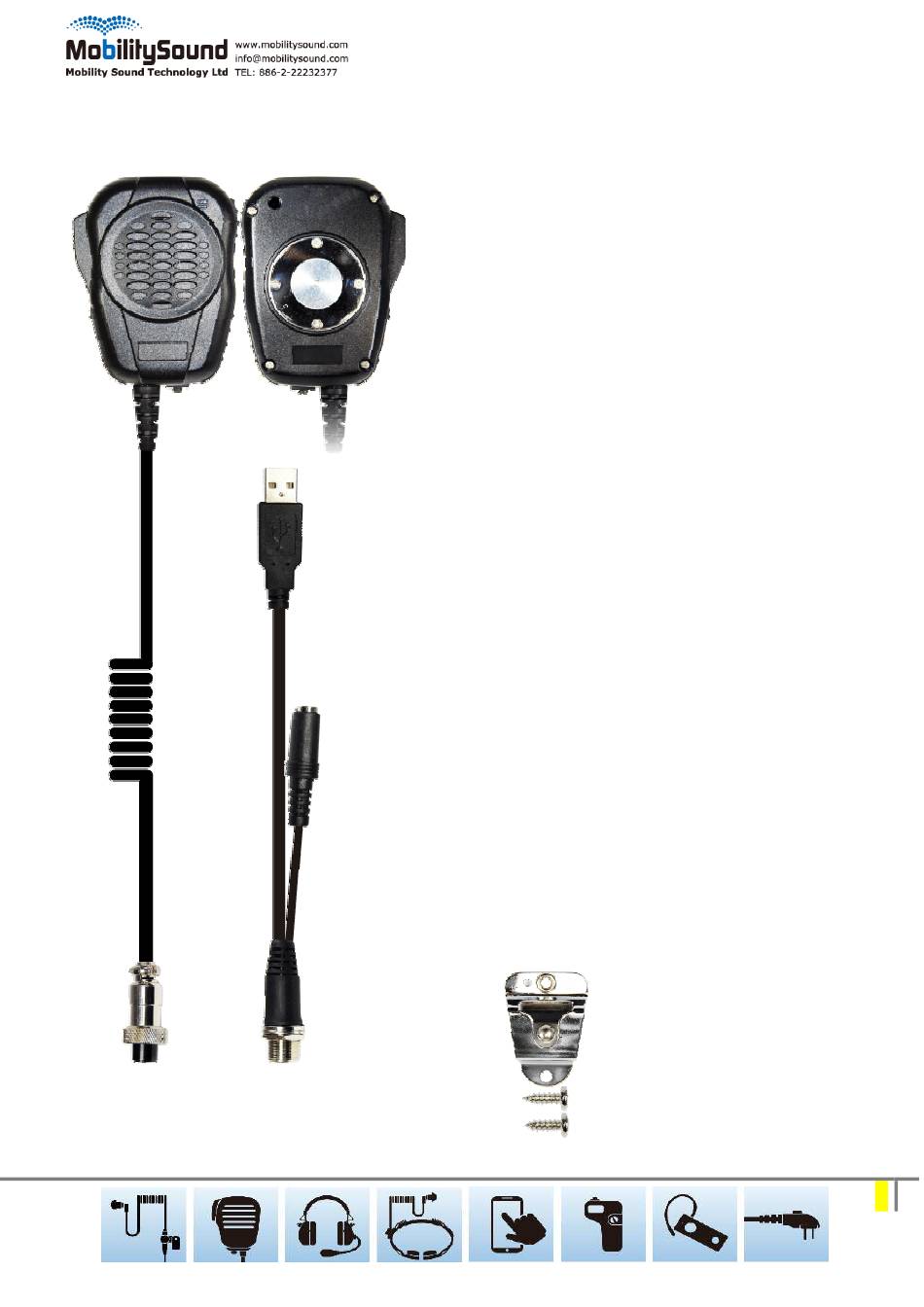

•Heavy duty speaker microphone
•Volume control buttons, cell phone answering
/ hanging up button, and PTT button are built in.
USB for charging.
<Specification>
Type: Bluetooth Speaker Microphone
Operating Temp: -20℃±2℃ ~ 50℃±2℃
Approx. Weight:230g
• Fully Qualified Bluetooth v4.0
• Echo cancellation, noise reduction, also
extended features
• High Quality DAC, CSR CVC Built-in
• 80MHz RISC MCU and 80MIPS Kalimba DSP
• • SBC, MP3, AAC, Fast stream, APTX codec
support
• RoHS compliant
• HSP / HFP / A2DP / AVRCP profile supports
• Speaker Output: 2W
• PTT function: built-in
• Talking Range: Bluetooth class 2, 10 meters
• Display LED: Blue and Red
• DC Input: 5 Vdc (std.)
• DC Current: 25 mA (Average)
Option: NFC pairing, Car holder
1
