BTD-2K2-5 Dongle Specification
v

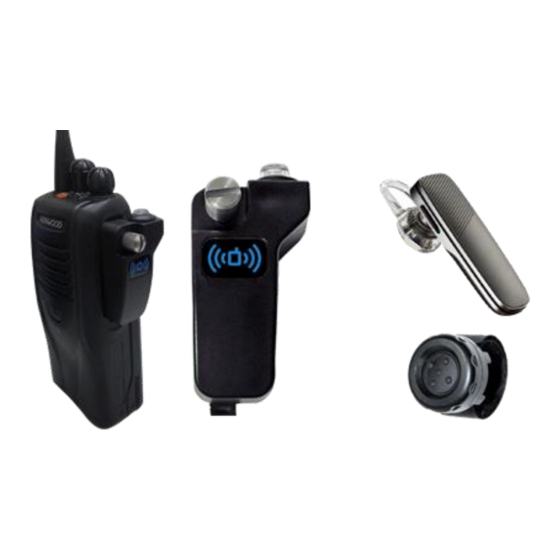

<Product Descriptions>
• The dongle fits for Kenwood multi-pin radios
(e.x. NX-200/300).
• The dongle is compatible with many
Bluetooth headsets on the aftermarket.
• Just one-time pairing with wireless
headset/accessory
• Optional PTT-Z wireless PTT
<Specification>
Type: Bluetooth Dongle for Portable Radio
Temp: -20℃±2℃ ~ 50℃±2℃
Approx. Weight: 30g
• Fully Qualified Bluetooth v5.0
• Echo cancellation, noise reduction, also
extended features
• High-Quality DAC, Qualcomm CVC built-in
• 80MHz RISC MCU and 80MIPS Kalimba
DSP
• No battery, no need charging.
• RoHS compliant
• HSP / HFP / BLE profile support
• PTT function: built-in
• Talking Range: Bluetooth class 2, 10 meters
• Display LED: Blue
• TX Current: 16 mA (Average)
• CE/FCC applied
1
Advertisement
Related Manuals for Mobility Sound BTD-2K2-5
Summary of Contents for Mobility Sound BTD-2K2-5
- Page 1 BTD-2K2-5 Dongle Specification <Specification> <Product Descriptions> Type: Bluetooth Dongle for Portable Radio • The dongle fits for Kenwood multi-pin radios Temp: -20℃±2℃ ~ 50℃±2℃ (e.x. NX-200/300). Approx. Weight: 30g • The dongle is compatible with many Bluetooth headsets on the aftermarket.
- Page 2 BTD-2K2-5 PTT and LED Pairing button PTT-Z Power switch Inside Slide the switch from 0 to 1...
- Page 3 BT Dongle User Manual <Pair Bluetooth headset> 1. Make sure that the Bluetooth device (headset/PTT button) all is off, and there is no nearby Bluetooth device in pairing mode. 2. Connect a BT dongle to the radio, press and hold the PTT button on BT dongle while power on the radio until the blue LED flashes twice per second.
