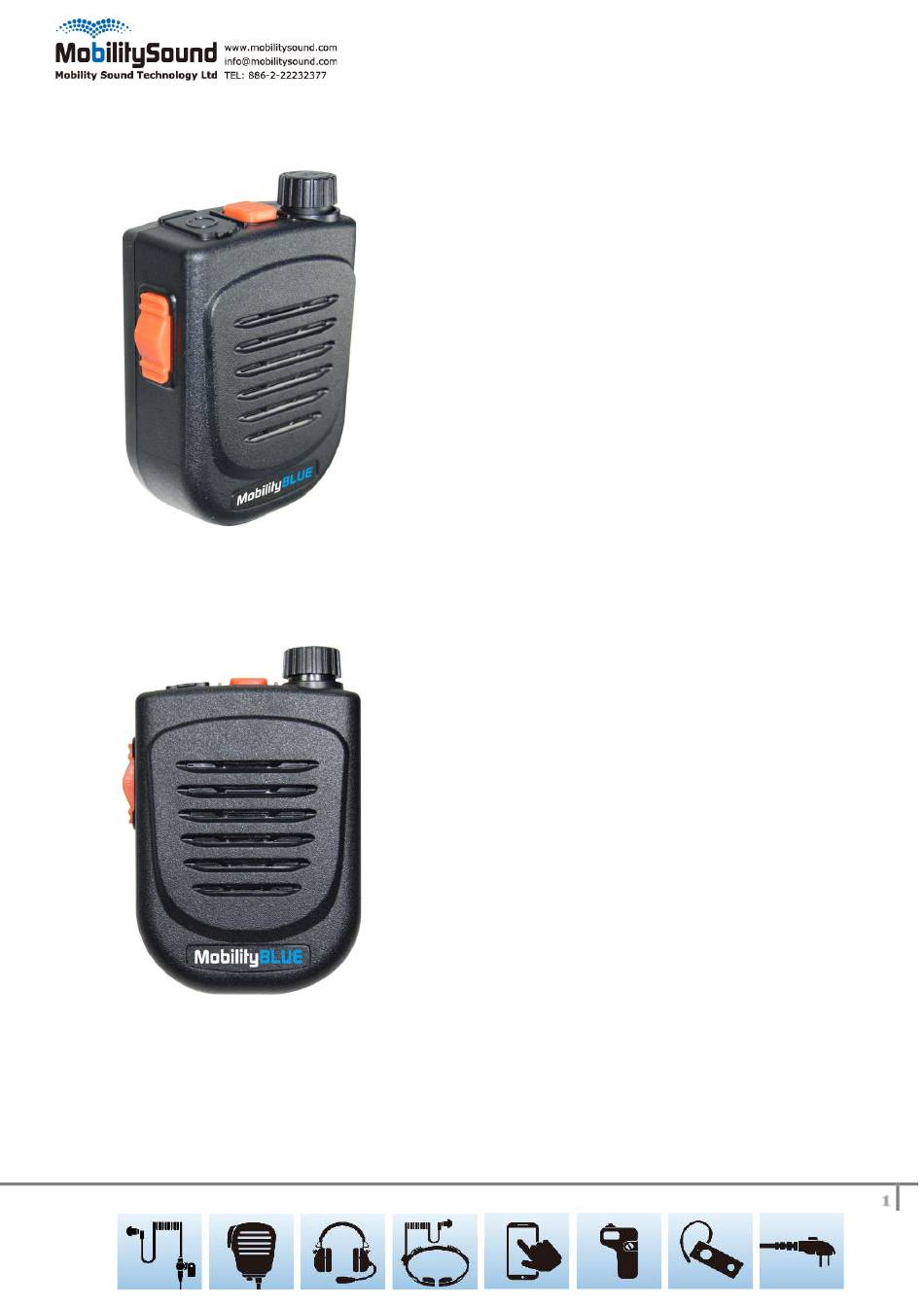

BTH-500
<Product Description>
•BT speaker microphone for radio and dongle.
•Rotary power& volume control switch, phone
answer/ rejection key, and PTT button are
embedded.
•Features mini LED lamp on the top of speaker
for user in dim environment.
<Specification>
Type: Bluetooth Speaker Microphone
Operating Temp: -20 ℃ ±2 ℃ ~ 50 ℃ ±2 ℃
Approx. Weight: 126g
Size:5.5cm x7.5cm x3.0cm
• Fully Qualified Bluetooth v4.0.
• Echo cancellation, noise reduction, also
extended features.
• High Quality DAC, CSR CVC built-in.
• 80MHz RISC MCU and 80MIPS Kalimba
DSP.
• Fast Current (200mA) battery charge.
• SBC, MP3, AAC, Fast stream, APTX codec
support.
• RoHS compliant.
• HSP / HFP / A2DP / AVRCP/ PBAP / SPP /
MAP profile supports.
• Speaker Output: 2W.
• PTT function: built-in.
• Talking Range: Bluetooth class 2, 10 meters.
• Display LED: Blue and Red.
• DC Input: 5 Vdc (std.) MicroUSB jack.
• DC Current: 25 mA (Average).
• Battery: 1000mAH, none replaceable.
• Talk Time: 40 Hours
1
