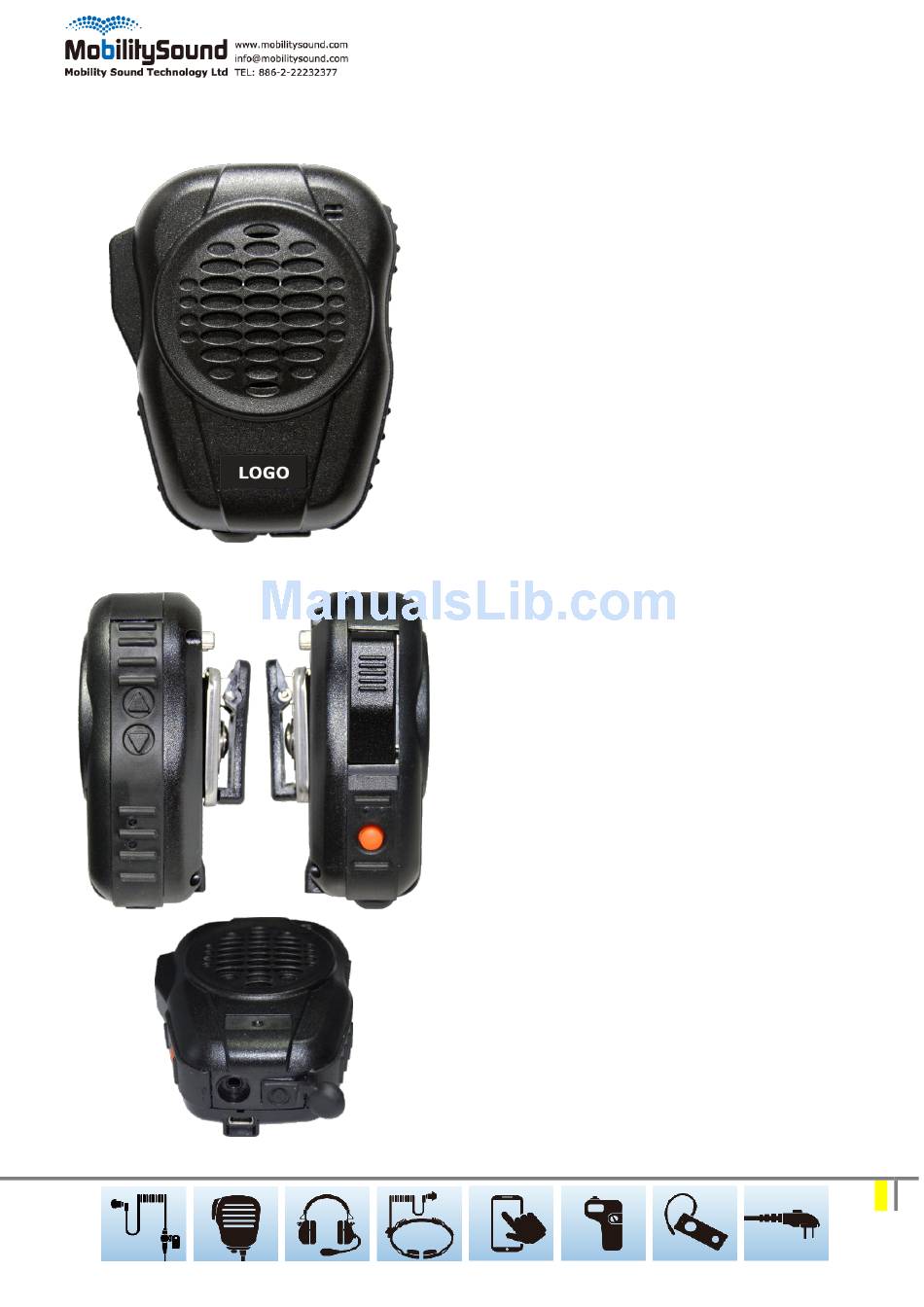

BTH-600
<Product Descriptions>
•Heavy duty speaker microphone for
MobilitySound's BT adapter.
•Volume control buttons, and PTT button are
built in
•Features cell phone key to answer incoming
phone call when BTH-600 links to cell phone.
•Embedded 3.5mm jack for external earphone.
Built-in Mini USB for charging.
<Specification>
Type: Bluetooth Speaker Microphone
Operating Temp: -20℃±2℃ ~ 50℃±2℃
Approx. Weight: 140g
• Fully Qualified Bluetooth v4.0.
• Echo cancellation, noise reduction, Stereo
audio (A2DP audio), also extended features
• High Quality DAC
• 80MHz RISC MCU and 80MIPS Kalimba DSP
• Fast Current (200mA) battery charge
• SBC, MP3, AAC, Fast stream, APTX codec
support
• RoHS compliant
• HSP / HFP / A2DP / AVRCP/ PBAP / SPP / MAP
profile supports
• Speaker Output: 2W
• PTT function: built-in
• Talking Range: Bluetooth class 2, 10 meters
• Display LED: Blue and Red
• DC Input: 5 Vdc (std.)
• DC Current: 25 mA (Average)
• Battery: 700mAH
• Talk Time: 24+ Hours
1
Advertisement
Related Manuals for Mobility Sound BTH-600
Summary of Contents for Mobility Sound BTH-600
- Page 1 MobilitySound’s BT adapter. •Volume control buttons, and PTT button are built in •Features cell phone key to answer incoming phone call when BTH-600 links to cell phone. •Embedded 3.5mm jack for external earphone. Built-in Mini USB for charging. <Specification> Type: Bluetooth Speaker Microphone Operating Temp: -20℃±2℃...
- Page 2 BTH-600...
- Page 3 BTH-600 BTH-600 State and LED Flashing Pattern BTH-600 State & Button Press LED Message Function No link/ No paired device BTH-600 is OFF No LED BTH-600 OFF BTH-600 is OFF; Press Power Both Blue & Red LED ON for 1 Turn BTH-600 ON button and hold for 3 seconds.
- Page 4 BTH-600 BTH-600 State and LED Flashing Pattern (continued) BTH-600 State & Button Press LED Message Function Link with Cell Phone Stand-By mode Blue LED flashes 3 times every 3 Standby seconds Press PTT button No function There is a cell phone call coming...
- Page 5 BTH-600 BTH-600 State and LED Flashing Pattern (continued) BTH-600-AZ State & Button Press LED Message Function Link with Cell Phone Volume Down 5 steps in volume adjust. When reaches the minimum volume, a short beep is heard over the speaker and audio is muted...
- Page 6 BTH-600 Pairing instruction of BTH-600 with wireless adapter 2. Pressing and holding PTT button on 3. Press and keep holding the power BT dongle when switch on radio switch for 6 second from cold start 1. You will see 2 Blue flashes per second 4.
- Page 7 BTH-600 Pairing instruction of BTH-600 with wireless adapter 5. You will see a long BLUE led light for 3 second after pairing successfully 6. Pairing work is completed...
