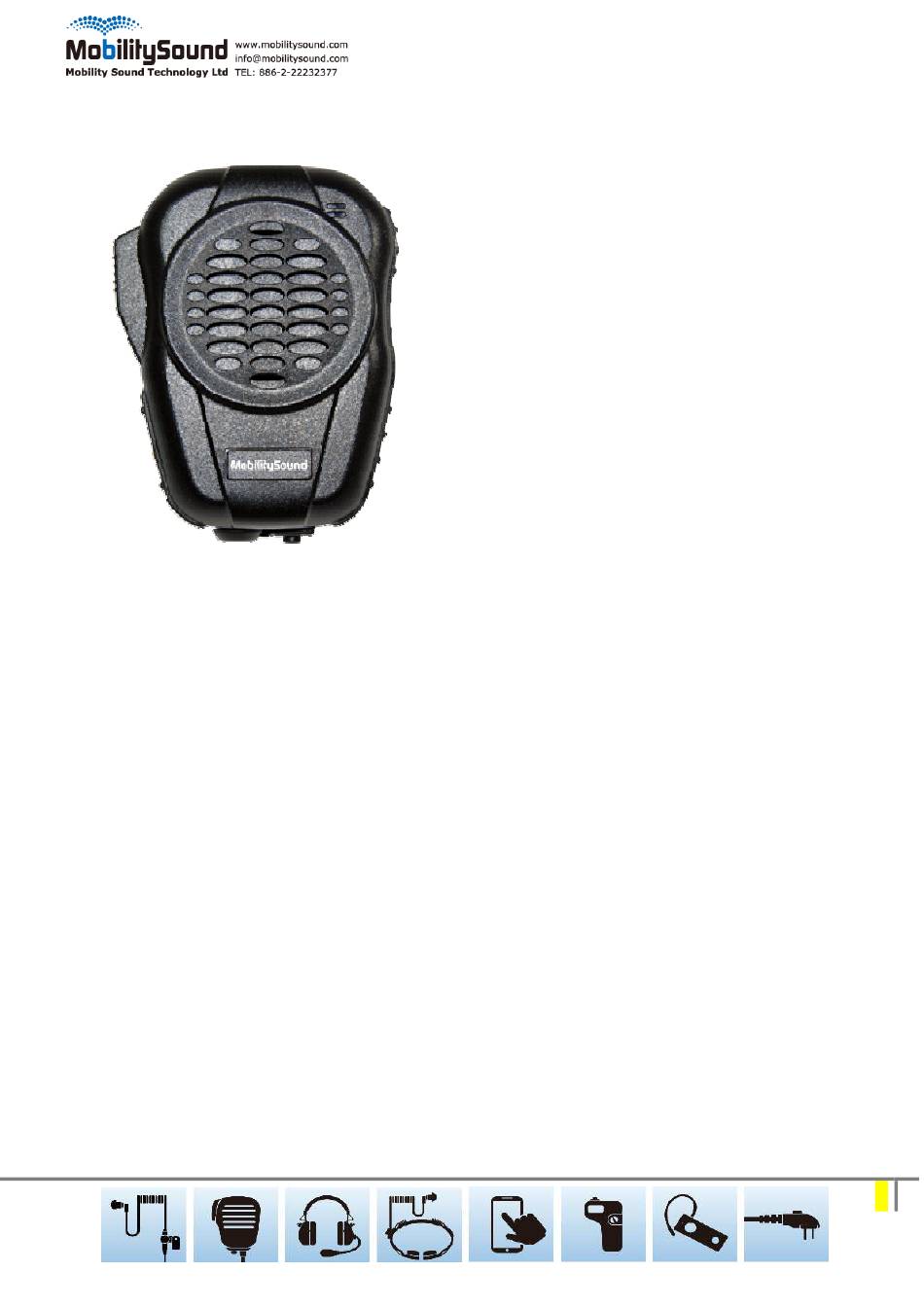

BTH-600-R

•Heavy duty speaker microphone

•Volume control buttons, cell phone answering

/ hanging up button, and PTT button are built in.

•Embedded 3.5mm jack for external earphone.

Built-in Mini USB for charging.

Type: Bluetooth Speaker Microphone

Operating Temp: -20℃±2℃ ~ 50℃±2℃

Approx. Weight: 140g

• Fully Qualified Bluetooth v4.0

• Echo cancellation, noise reduction, also

extended features

• High Quality DAC, CSR CVC Built-in

• 80MHz RISC MCU and 80MIPS Kalimba DSP

• Fast Current (200mA) battery charge

• SBC, MP3, AAC, Fast stream, APTX codec

support

• RoHS compliant

• HSP / HFP / A2DP / AVRCP profile supports

• Speaker Output: 2W

• PTT function: built-in

• Talking Range: Bluetooth class 2, 10 meters

• Display LED: Blue and Red

• DC Input: 5 Vdc (std.)

• DC Current: 25 mA (Average)

• Battery: 1000mAH, BL-5C replaceable

• Talk Time: 40 Hours

Need help?

Do you have a question about the BTH-600-R and is the answer not in the manual?

Page 1 BTH-600-R <Product Descriptions> •Heavy duty speaker microphone •Volume control buttons, cell phone answering / hanging up button, and PTT button are built in. •Embedded 3.5mm jack for external earphone. Built-in Mini USB for charging. <Specification> Type: Bluetooth Speaker Microphone Operating Temp: -20℃±2℃ ~ 50℃±2℃...
Page 2 Rotatable Clip Vol+/- Cellphone Answer Power S/W and Pairing Key 3.5mm jack Mini USB...
Page 3 Volume down short press VOL- long held( >=0.8sec) Volume down continuously BTH-600-R State and LED Flashing Pattern LED state statement Blue led on : 2 sec , off : 1 sec , repeat All profiles are standby but not connected with any Cellphone device yet.
