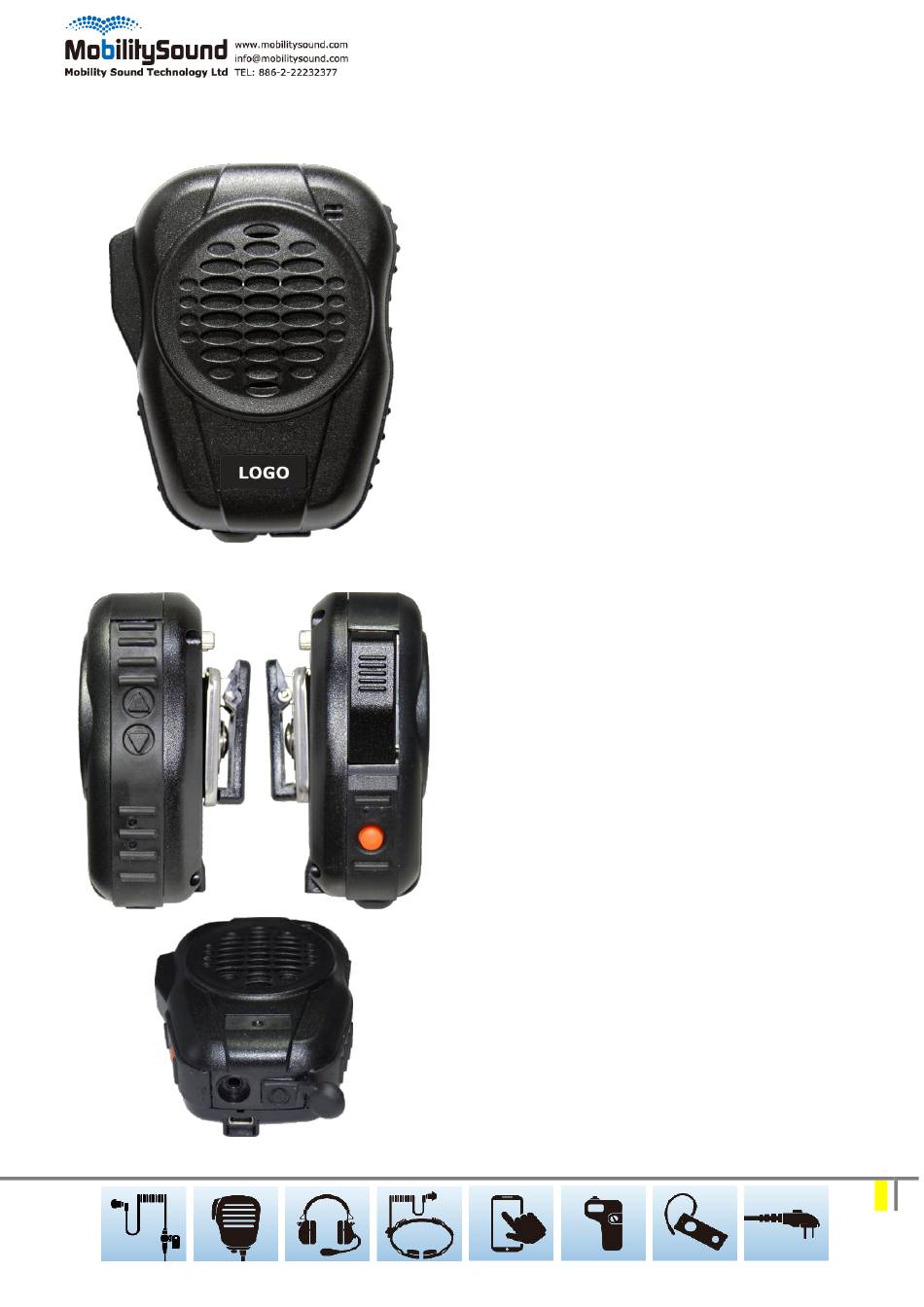

BTH-600-AZ

•Heavy duty speaker microphone for Zello iOS

and Android version.

•Volume control buttons, cell phone answering

/ hanging up button, and PTT button are built in.

•Embedded 3.5mm jack for external earphone.

Built-in Mini USB for charging.

Type: Bluetooth Speaker Microphone Operating

Temp: -20℃±2℃ ~ 50℃±2℃

Approx. Weight: 140g

• Fully Qualified Bluetooth v4.0.

• Echo cancellation, noise reduction, also

extended features

• High Quality DAC, CSR CVC Built-in

• 80MHz RISC MCU and 80MIPS Kalimba DSP

• Fast Current (200mA) battery charge

• SBC, MP3, AAC, Fast stream, APTX codec

support

• RoHS compliant

• HSP / HFP / A2DP / AVRCP/ PBAP / SPP / MAP

profile supports

• Speaker Output: 2W

• PTT function: built-in

• Talking Range: Bluetooth class 2, 10 meters

• Display LED: Blue and Red

• DC Input: 5 Vdc (std.)

• DC Current: 25 mA (Average)

• Battery: 1000mAH, replaceable

• Talk Time: 40 Hours

Need help?

Do you have a question about the BTH-600-AZ and is the answer not in the manual?

Page 1 BTH-600-AZ <Product Descriptions> •Heavy duty speaker microphone for Zello iOS and Android version. •Volume control buttons, cell phone answering / hanging up button, and PTT button are built in. •Embedded 3.5mm jack for external earphone. Built-in Mini USB for charging.
Page 2 BTH-600-AZ...
Page 3 BTH-600-AZ BTH-600 State and LED Flashing Pattern BTH-600-AZ State & Button Press LED Message Function No link and no paired BTH-600 is OFF No LED BTH-600 OFF BTH-600 is OFF; Press Power Both Blue & Red LED ON for 1 Turn BTH-600 ON button and hold for 3 seconds.
Page 4 BTH-600-AZ BTH-600 State and LED Flashing Pattern (continued) BTH-600-AZ State & Button Press LED Message Function Volume adjustment Volume UP 5 steps in volume adjust, when reach the maximum volume, a beep sound is heard Volume Down 5 steps in volume adjust, when...
Page 5 BTH-600-AZ BTH-600-AZ Pairing Process for Zello iOS 1. Make sure BTH-600-AZ is OFF, and press power switch and hold for 6 seconds 2. BTH-600-AZ is under pairing mode when you see the LED flashing RED and BLUE alternatively. 3. Start Bluetooth function on your smart phone.
Page 6 BTH-600-AZ BTH-600-AZ Pairing Process for Zello Android 1. Make sure BTH-600-AZ is OFF, and press power switch and hold for 6 seconds 2. BTH-600-AZ is under pairing mode when you see the LED flashing RED and BLUE alternatively. 3. Start Bluetooth function on your smart phone.
