SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, EtherCAT and
PROFINET.
By Pressing the "Set Communication" button from the main window for SW67E22 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "PROFINET Master" are:
In the fields "IP Address" the IP address for PROFINET side of the converter is
defined;
In the fields "SubNet Mask" the SubNet Mask for PROFINET side of the converter is
defined;
In the fields "Gateway" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the field "Name of
defined.
The means of the fields for "EtherCAT Slave" are:
In the field "Revision Number" the revision number of the converter is defined;
In the field "Slave Name" the name of the converter is defined;
In the field "Node Address" the ID of the converter is defined.
ADFweb.com S.r.l.
Station" the name of PROFINET side of the converter is
User Manual EtherCAT Slave / PROFINET Master
Document code: MN67E22_ENG

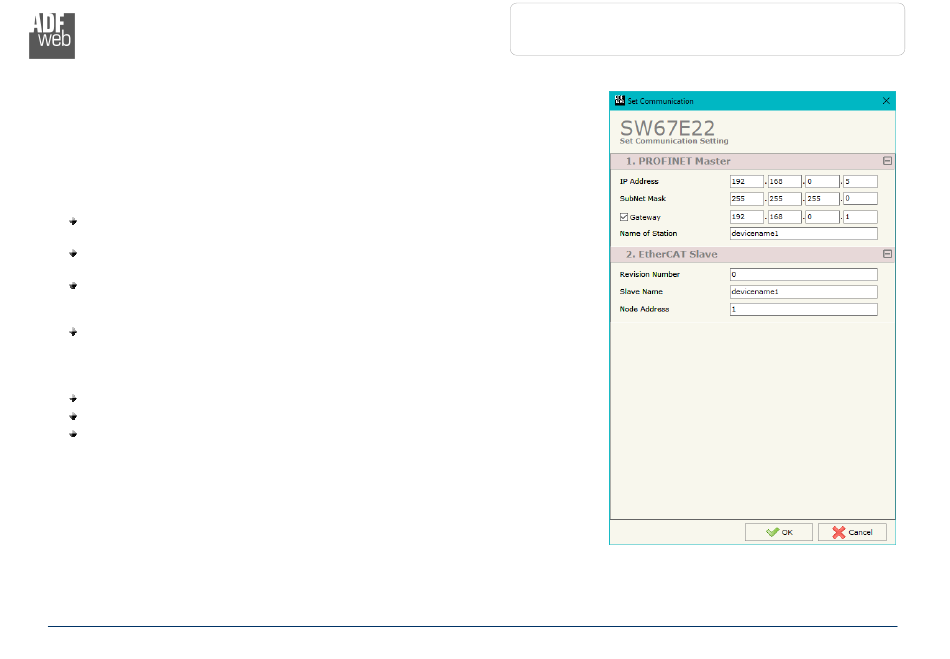

Figure 3: "Set Communication" window
