User Manual EtherCAT Slave / PROFINET Master
Document code: MN67E22_ENG
Revision 1.000
Page 25 of 28
Industrial Electronic Devices
MECHANICAL DIMENSIONS:

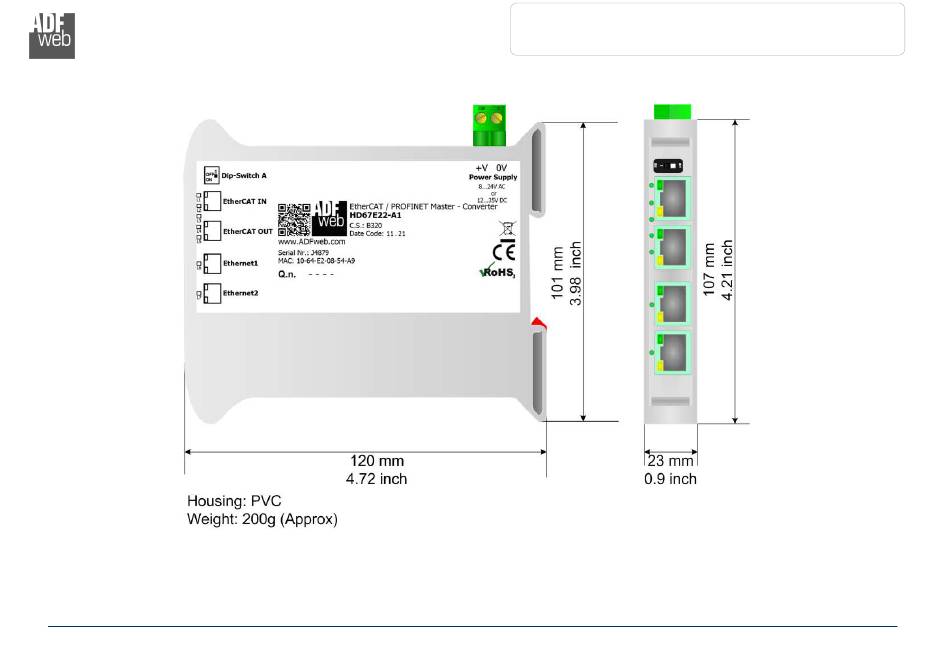

Figure 9: Mechanical dimensions scheme for HD67E22-A1
ADFweb.com S.r.l.
