ZooZ ZSE19 User Manual

USER MANUAL

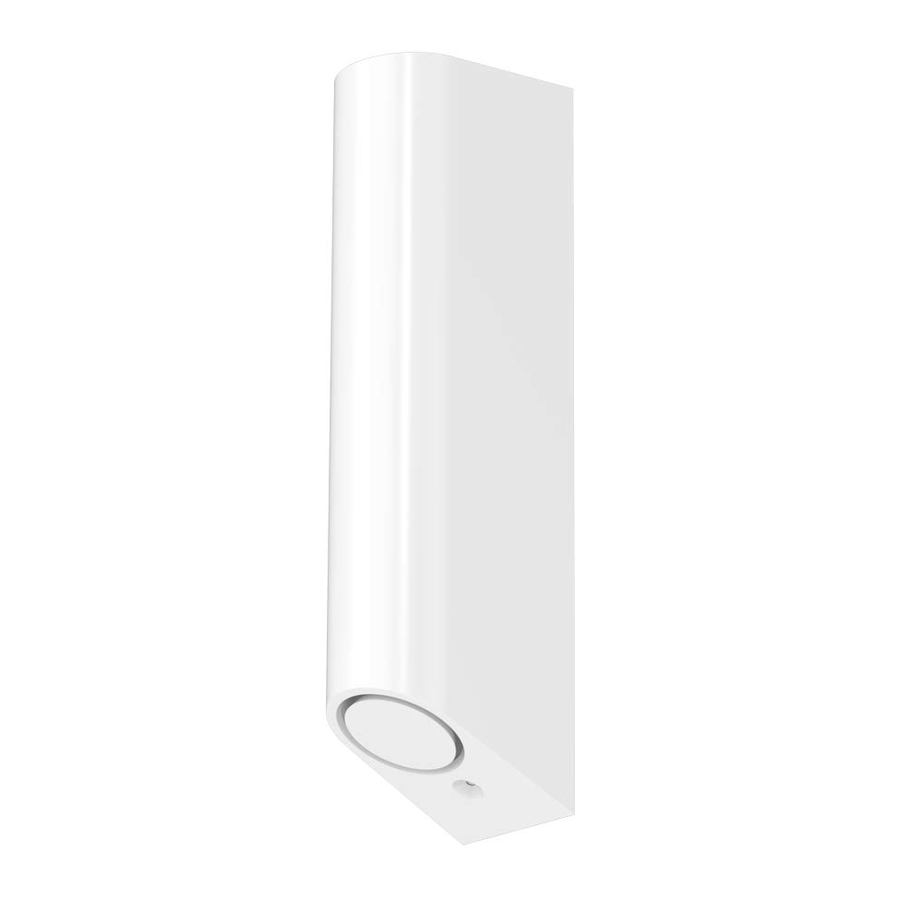

S2 MULTISIREN
S2
All brand names displayed are trademarks of their
respective holders. © Zooz 2018
Audio and visual alarm triggered by other Z-Wave devices
Ÿ
Configurable siren alarm duration
Ÿ
Built-in temperature and humidity sensor
Ÿ
Audio Speaker for custom sound playback
Ÿ
S2 security protocol and the latest 500 Z-Wave chip for faster and safer
Ÿ
wireless communication
Tamper protection, low-battery alerts
Ÿ
SPECIFICATIONS
Model Number: ZSE19
Ÿ
Z-Wave Signal Frequency: 908.42 MHz
Ÿ
Power: 4 x LR14 (C Cell) battery
Ÿ
Range: Up to 100 feet line of sight
Ÿ
Operating Temperature: 14-104° F (-10-40° C)
Ÿ
Operating Humidity: 0-80%
Ÿ
Installation and Use: Indoor only
Ÿ
INSTALLATION
1. INSTALL THE BATTERIES
Locate the opening slot on the bottom of the back cover. Gently li the
cover and remove it to access the battery compartment. Follow the
orientation marks and insert the 4 batteries included in the box.
NOTE: The Multisiren can ONLY be
powered by batteries, it can't be powered
from the USB port. This is only to upload
audio files to the device.
The LED indicator will start blinking and the Multisiren will enter auto-
inclusion mode for 30 seconds. It's now ready to be added to your hub.
This product should be installed indoors upon completion of any
Ÿ
building renovations.
ZSE19
www.getzooz.com
ask@getzooz.com
FEATURES
(if Multilevel Sensor is supported)
(if Sound Switch is supported)
WARNING
PAGE 1
Prior to installation, the device should be stored in a dry, dust-and-
Ÿ
mold-proof place.
Do not install the device in a place with direct sun exposure, high
Ÿ
temperature, or humidity.
Keep away from chemicals, water, and dust.
Ÿ
Ensure the device is never close to any heat source or open flame to
Ÿ
prevent fire.
Ensure the device is connected to an electric power source that does
Ÿ
not exceed the maximum load power.
No part of the device may be replaced or repaired by the user, except for
Ÿ
the batteries.
Z-WAVE CONTROL
1. ADD DEVICE to your hub (AUTO INCLUSION)
Initiate inclusion (pairing) in the app (or web
interface). Not sure how? ask@getzooz.com
If you're using an S2 hub, it may ask you to enter
the DSK key printed on the back cover sticker to
complete secure inclusion.
2. POWER the siren
Insert the batteries as instructed above (if you already
did, take them out for at least 15 seconds before
starting the inclusion process). The LED indicator will
start blinking and the Multisiren will join the network
automatically.
MANUAL INCLUSION
Put your Z-Wave hub into inclusion mode and click
the Z-Wave button 3 times quickly.
Get step-by-step instructions for adding
the siren to SmartThings, Vera, and
other hubs at ww.support.getzooz.com
TROUBLESHOOTING
The Multisiren won't add to your system? Try this:
1. Initiate EXCLUSION and click the Z-Wave button 3 times quickly.
2. Click the Z-Wave button 4-5 times quickly when adding it or try
adding it in a non-secure mode.
3. Bring the Multisiren closer to your hub, it may be out of range.
4. Double-check if the device is powered.
EXCLUSION (REMOVING / UNPAIRING DEVICE)
1. Bring the Multisiren within direct range of your Z-Wave gateway (hub).
2. Put the Z-Wave hub into exclusion mode (not sure how to do that?
ask@getzooz.com).
3. Click the Z-Wave button on the Multisiren 3 times quickly to finalize
the process.
4. Your hub will confirm exclusion and the device will disappear from
your controller's device list.
FACTORY RESET
If your primary controller is missing or inoperable, you may need to reset
the device to factory settings. To complete the reset process manually,
make sure the Multisiren is powered, then CLICK-CLICK-CLICK-
CLICK'N'HOLD the Z-Wave button for AT LEAST 5 SECONDS. The LED
indicator will flash to confirm successful reset
NOTE: All previously recorded activity and custom settings will be erased from the device's memory.
ADVANCED SETTINGS
Please refer to your controller's user guide for advanced programming
instructions as they are a little different for every so ware.
Not sure where to start? Go to www.support.getzooz.com for detailed
instructions how to change the settings on SmartThings, Vera, and
more. Or just email us: ask@getzooz.com
Z-WAVE
BUTTON
.
PAGE 2
