An eight-position modular jack (labeled NETWORK) is provided to
connect to the network T1 circuit. The pinout is provided on this Quick
Start Guide. See Chapter 2, Installation, of the TSU LT User Manual for
more information.
The rear panel contains a single V.35 (V.11 for P/N 1202060L4)
interface for connecting to DTE equipment. The pinouts for these
interfaces are provided on this Quick Start Guide.
When shipped from the factory, the TSU LT is uninitialized and set to
factory default conditions. At the first application of power, the unit will
automatically execute self-tests followed by an initialization sequence.
The TSU LT can be configured and controlled using the local front panel
of the unit, by a direct or remote serial connection via the control port, or
by ADTRAN's PC-based management software package,
T-WATCH PRO. A limited menu tree is provided on the back of this
sheet. For more detailed menu information, refer to the TSU LT User
Manual.
Additional information can be found on the product CD which contains
the TSU LT User Manual, FAQs, Data Sheets, Applications, and White
Papers.
Quick Start Guide, 61202060L4-13A, May 2002
TSU LT
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
R
P
D
EAR
ANEL
ESCRIPTIONS

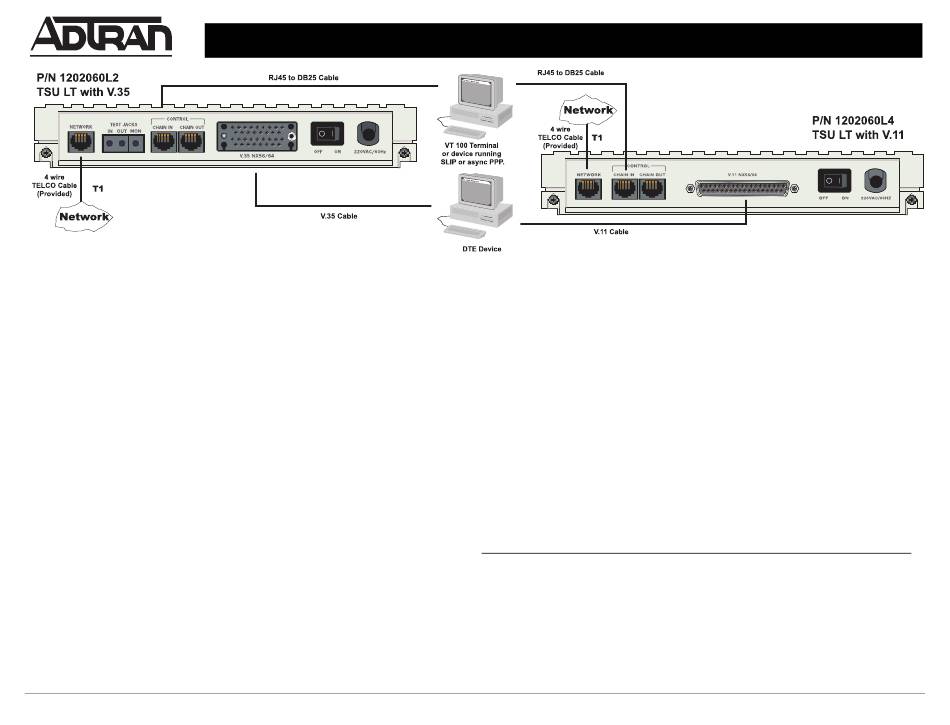

Network Connector
Test Interface
(P/N 1202060L2 only)
Control Chain-In/Chain-Out
V.35 Connector (P/N 1202060L2)
V.11 Connector (P/N 1202060L4)
Power Switch
220 VAC Connection
N
C
ETWORK
ONNECTION
Pin
Name
1
R1 RXDATA
2
T1 RXDATA
3, 6, 7, 8
UNUSED
4
R TXDATA
5
T TXDATA
www.adtran.com
P/N 1202060L2/1202060L4
Connection to T1 circuit
Bantam jacks provided for monitoring
and testing of a T1 circuit
Connection to a VT100 terminal
High-speed DTE interface
Turns power to the TSU on or off
Power cord connection for a reliably
grounded 220 VAC, 60 Hz power source
P
INOUT
Description
Receive data from the Network - Ring
Receive data from the Network - Tip
n/a
Transmit data towards the Network - Ring
Transmit data towards the Network - Tip
