ADTRAN TSU ACE Installation Information

Network
N C
ETWORK ONNECTION
Pin Name
1 R1 RXDATA
2 T1 RXDATA
3, 6, 7, 8 UNUSED
4 R TXDATA
5 T TXDATA
R P D
EAR ANEL ESCRIPTIONS
Network Connector Connection to T1 circuit
V.35 Connector High-speed DTE interface
Power Switch Turns power to the TSU on or off
Power cord connection for a reliably grounded
115 VAC Connection
115 VAC, 60 Hz power source
Quick Start Guide, 61200295L1-13A, September 2001

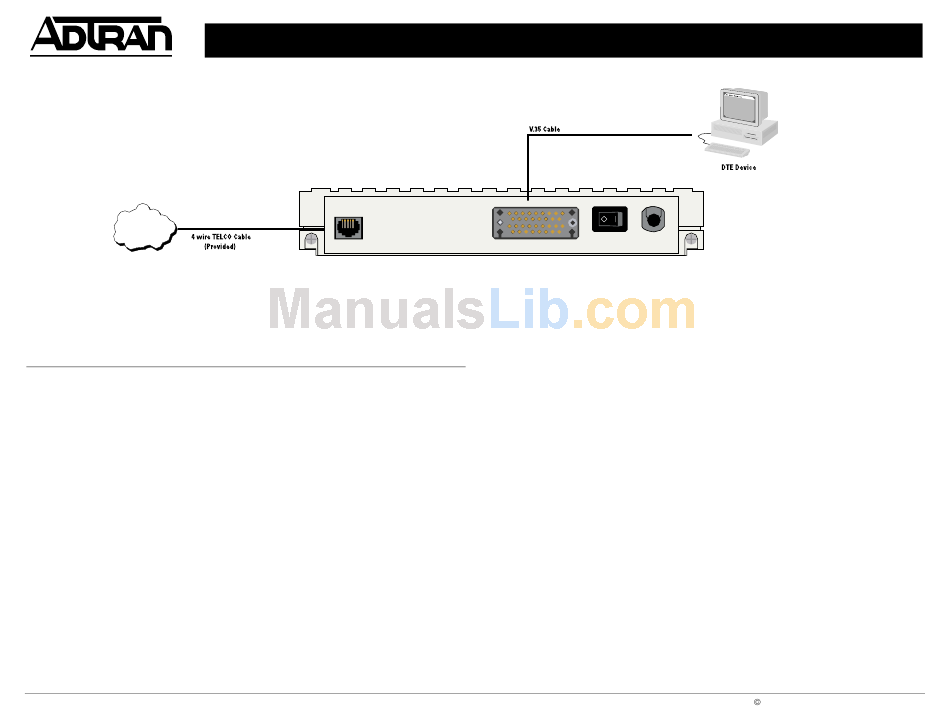

TSU ACE
NETWORK
NETWORK
T1
P
INOUT
Description
Receive data from the Network - Ring
Receive data from the Network - Tip
n/a
Transmit data towards the Network - Ring
Transmit data towards the Network - Tip
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
115VAC/60HZ
OFF ON
V.35 NX56/64 .15A
I I
NSTALLATION NFORMATION
• An eight-position modular jack (labeled N
connect to the network T1 circuit. The pinout is provided on this Quick
Start Guide. See Chapter 2, Installation, of the TSU ACE User Manual
for more information.
• The rear panel contains a single V.35 interface for connecting to DTE
equipment. The pinout for this interface is located in Appendix C of the
TSU ACE User Manual.
• When shipped from the factory, the TSU ACE is uninitialized and set to
factory default conditions. At the first application of power, the unit will
automatically execute self-tests followed by an initialization sequence.
• The TSU ACE can be configured and controlled using the local front
panel of the unit or from ADTRAN's PC Control Program, T-WATCH. A
limited menu tree is provided on the back of this sheet. For more
detailed menu information, refer to the TSU User Manual.
• Additional information can be found on the product CD which contains
the TSU ACE User Manual, FAQs, Data Sheets, Applications, and
White Papers.
www.adtran.com
P/N 1200295L1
) is provided to
ETWORK
Copyright 2001 ADTRAN, All Rights Reserved
