INSTRUCTIONS FOR USE
Aluminium 4-wheeled rollator
Product code: CARBON
1. Characteristics
Folding 4-wheeled rollator is made of aluminium frame which is
coated with paint with metallic lustre. The rollator possesses wide
upholstered seat, soft backrest and basket. The product is
equipped with height adjustable handles with anatomic handgrips
and brakes with locking mechanism. The rollator is supplied with
wheels with narrow cross section 8'' in diameter.

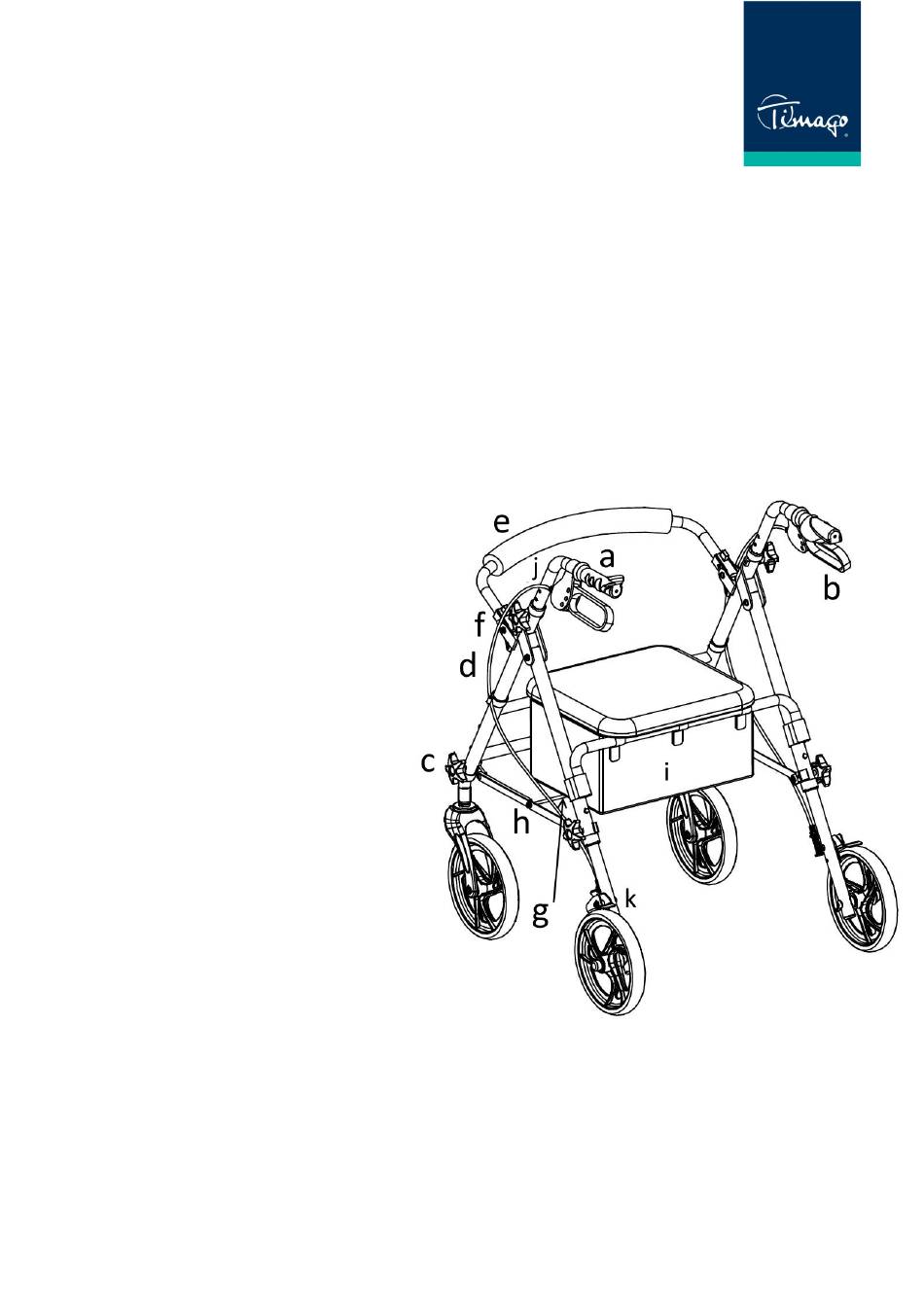

Elements of the rollator:
a. push handle
b. brake
c. locking knob
d. brake cables
e. backrest
f. locking pin
g. crossbar
h. crossbar hinge
i. basket
j. upper brake adjustment
k. lower brake adjustment
2. Application
The rollator is designed for patients with reduced mobility who
need stable support and help while walking. It is also
recommended to the elderly as an aid in keeping balance,
improving walking comfort and ensuring safety from falling. The
1
Advertisement
Table of Contents
Related Manuals for Timago CARBON
Summary of Contents for Timago CARBON
- Page 1 INSTRUCTIONS FOR USE Aluminium 4-wheeled rollator Product code: CARBON 1. Characteristics Folding 4-wheeled rollator is made of aluminium frame which is coated with paint with metallic lustre. The rollator possesses wide upholstered seat, soft backrest and basket. The product is equipped with height adjustable handles with anatomic handgrips and brakes with locking mechanism.
- Page 2 use of the rollator has a positive effect on the return to activity of people with locomotion and verticalization problems. It guarantees better stabilization, support and security while walking. 3. Assembly and adjustment Mounting elements: A. Frame B.1 Left rear leg B.2 Right rear leg C.1 Left handle C.2 Right handle...
- Page 3 the hole of the frame (the frame has two holes to choose from, depending on the desired height of the rollator). Lock the leg by tightening the locking knob (E). • The left rear leg (B.1) is connected by a brake cable to the left handle of the rollator (C.1).
- Page 4 • To release the brake, pull the brake handle upwards. Handles height adjustment • To adjust the height of the handles, unscrew the locking knobs located on the outer side of the frame, select the appropriate height and tighten the locking knobs. Note! The handles must be set on the same level.
- Page 5 5. Notes Timago International Group does not bear responsibility of improper use of the rollator, failure to comply safety regulations and misuse. 6. Maintenance Clean the frame with damp cloth and dry thoroughly. Do not use strong polishing agents due to the damage of protecting coatings.
- Page 6 Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago!
- Page 8 Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska T.: +48 33 499 50 00 F.: +48 33 499 50 11 E.: info@timago.com Rev. I, date 25.10.2021...
