INSTRUCTIONS FOR USE

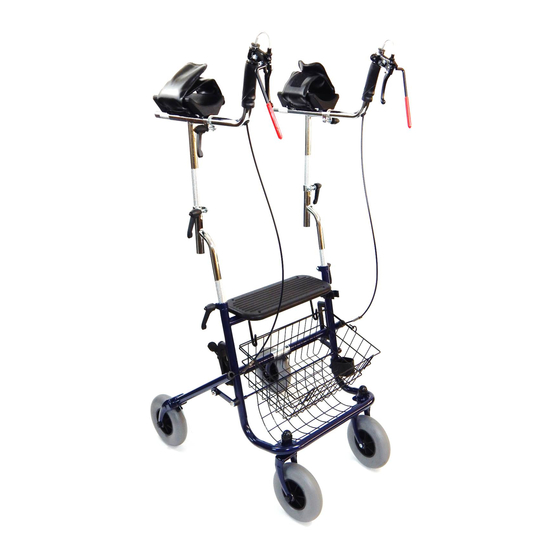

Steel 4-wheeled rollator with elbow supports
Product code: TGR-R RS 8811
1. Characteristics
Foldable 4-wheeled rollator is made of powder coated steel frame. It is
equipped with brakes with locking mechanism, seat with removable
tray, and basket. The rollator possesses height adjustable handles,
elbow supports, and solid rubber wheels 8'' in diameter.
The set includes:
• Frame with seat
• Two push handles with brakes
• Basket
• Tray
• Mounting lever – 2 pcs
• Locking lever – 4 pcs

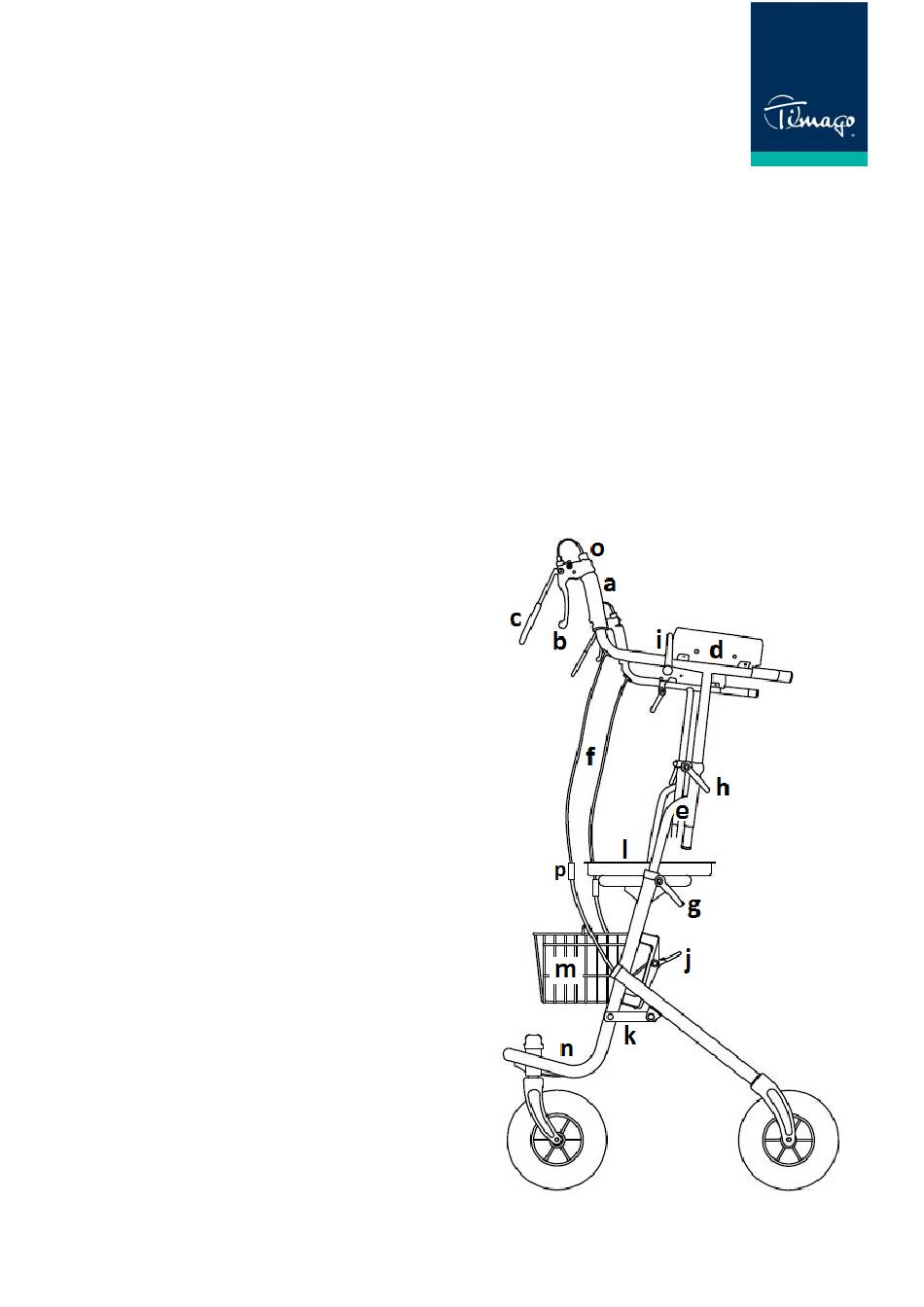

Elements of the rollator:
a. push handle
b. brake
c. stopping handle
d. elbow support
e. connecting element
f. brake cable
g. mounting lever
h. locking lever
i. locking lever
j. lock of frame folding
k. transverse hinge
l. seat
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Timago TGR-R RS 8811
Summary of Contents for Timago TGR-R RS 8811
- Page 1 INSTRUCTIONS FOR USE Steel 4-wheeled rollator with elbow supports Product code: TGR-R RS 8811 1. Characteristics Foldable 4-wheeled rollator is made of powder coated steel frame. It is equipped with brakes with locking mechanism, seat with removable tray, and basket. The rollator possesses height adjustable handles, elbow supports, and solid rubber wheels 8’’...
- Page 2 m. basket n. crutch holder o. upper adjustment of brake p. lower adjustment of brake 2. Application The rollator is ancillary equipment and is designed for patients with reduced mobility who need stable support and help while walking. It is especially designed for patients who suffer from rheumatic changes, limited mobility in radiocarpal and elbow joints, and for patients with weakened grip strength.
- Page 3 • Fix the tray on the seat so that the catches of the tray are in the mounting openings. • Remove plastic casing from wheels. • To fold the rollator for transport, engage the brake by pulling the handle towards you energetically. Press the lock of frame folding on the right side of the frame and pull the crossbar upwards simultaneously.
- Page 4 Maximum capacity of the basket 12 kg 5. Notes Timago International Group does not bear responsibility of improper use of the rollator, failure to comply safety regulations and misuse. 6. Maintenance • Clean the frame with damp cloth and dry thoroughly.
- Page 5 Manufacture date Serial number Medical device Please read the Note instruction The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago!
- Page 6 Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska T.: +48 33 499 50 00 F.: +48 33 499 50 11 E.: info@timago.com Rev. II, date 20.05.2021...
