INSTRUCTIONS FOR USE

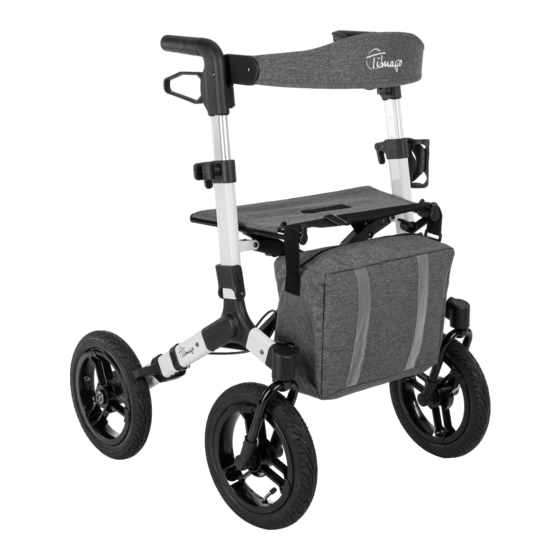

Aluminium 4-wheeled rollator
Product code: RANGER
1. Characteristics
Four-wheeled, folding frame made of aluminum frame. Equipped with
parking brakes, seat with backrest, crutch/cane holder, cup/bottle
holder and handy bag. It has pneumatic 12'' diameter wheels and
height-adjustable handles finished with anatomical handgrips. The
structure is based on a crossover frame and an oval cross-section of
tubes, thanks to which the resistance to axial pressure is significantly
increased.
The set includes: frame with seat, front wheels, legs with rear wheels,
backrest, shopping bag.

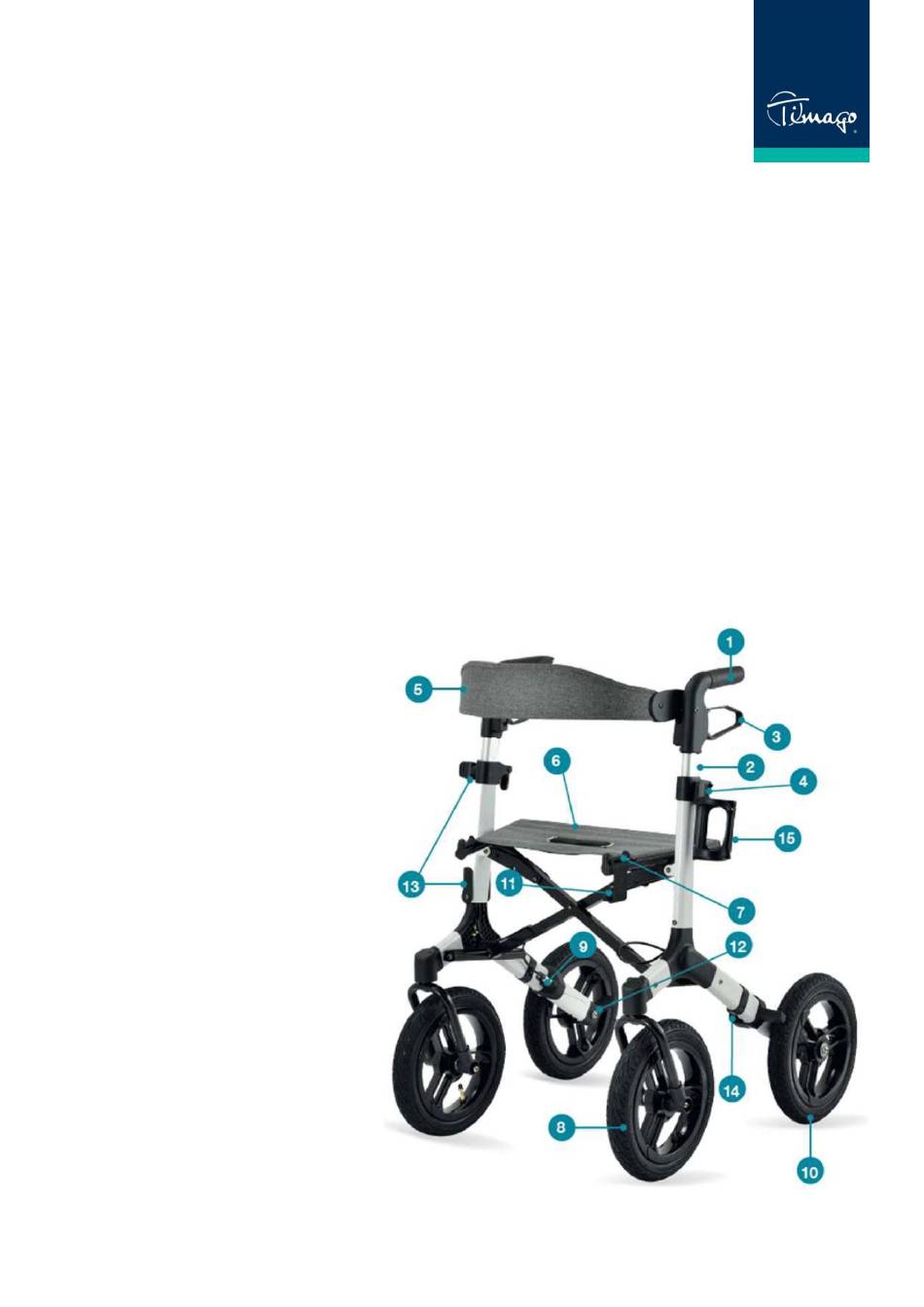

Elementy podpórki:
1. Handgrip
2. Adjustable tubing handgrip
3. Parking brake
4. Adjustment clamp
5. Backrest
6. Seat with handle
7. Bag hook
8. Front wheel
10. Rear wheel
11. Safety clamp
12. Kerb climber
13. Crutch/cane holder
14. Locking pins
15. Cup holder
Strona 1 z 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Timago RANGER
Summary of Contents for Timago RANGER
- Page 1 INSTRUCTIONS FOR USE Aluminium 4-wheeled rollator Product code: RANGER 1. Characteristics Four-wheeled, folding frame made of aluminum frame. Equipped with parking brakes, seat with backrest, crutch/cane holder, cup/bottle holder and handy bag. It has pneumatic 12'' diameter wheels and height-adjustable handles finished with anatomical handgrips. The...
- Page 2 2. Application The rollator is designed for patients with reduced mobility who need stable support and help while walking. It is also recommended to the elderly as an aid in keeping balance, improving walking comfort and ensuring safety from falling. The use of the rollator affects positively on the return to activity of the people with locomotion and tilting to erect position problems.
- Page 3 Unfolding • To unfold the rollator, grab both handgrips and pull them outward. • Press down on the seat rails until it is fully unfolded (click of the locking mechanism). Folding • To fold the rollator, lift the seat by the handle and pull it up. •...
- Page 4 Brake function • To stop the rollator, pull the brake handle up toward the handle, then hold. • When stationary or using the seat, lock the brake with the parking clamp by pulling the brake handle down. • To release the brake, pull the brake handle upward. Brake adjustment Unscrew the cable holder, pull it up to the desired distance and then lock it by tightening the clamping screw.
- Page 5 Frame colour White 5. Notes Timago International Group does not bear responsibility of improper use of the rollator, failure to comply safety regulations and misuse. 6. Maintenance • Clean the frame with damp cloth and dry thoroughly. • Do not use strong polishing agents due to the damage of protecting coatings.
- Page 6 Medical device Please read the Note instruction The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago! Strona 6 z 8...
- Page 7 Strona 7 z 8...
- Page 8 Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska T.: +48 33 499 50 00 F.: +48 33 499 50 11 E.: info@timago.com 07/2023(I) Strona 8 z 8...
