Lifetime FRONT ADJUST 90599 Assembly Instructions Manual

Basketball system
Hide thumbs

Advertisement

Quick Links

Download this manual

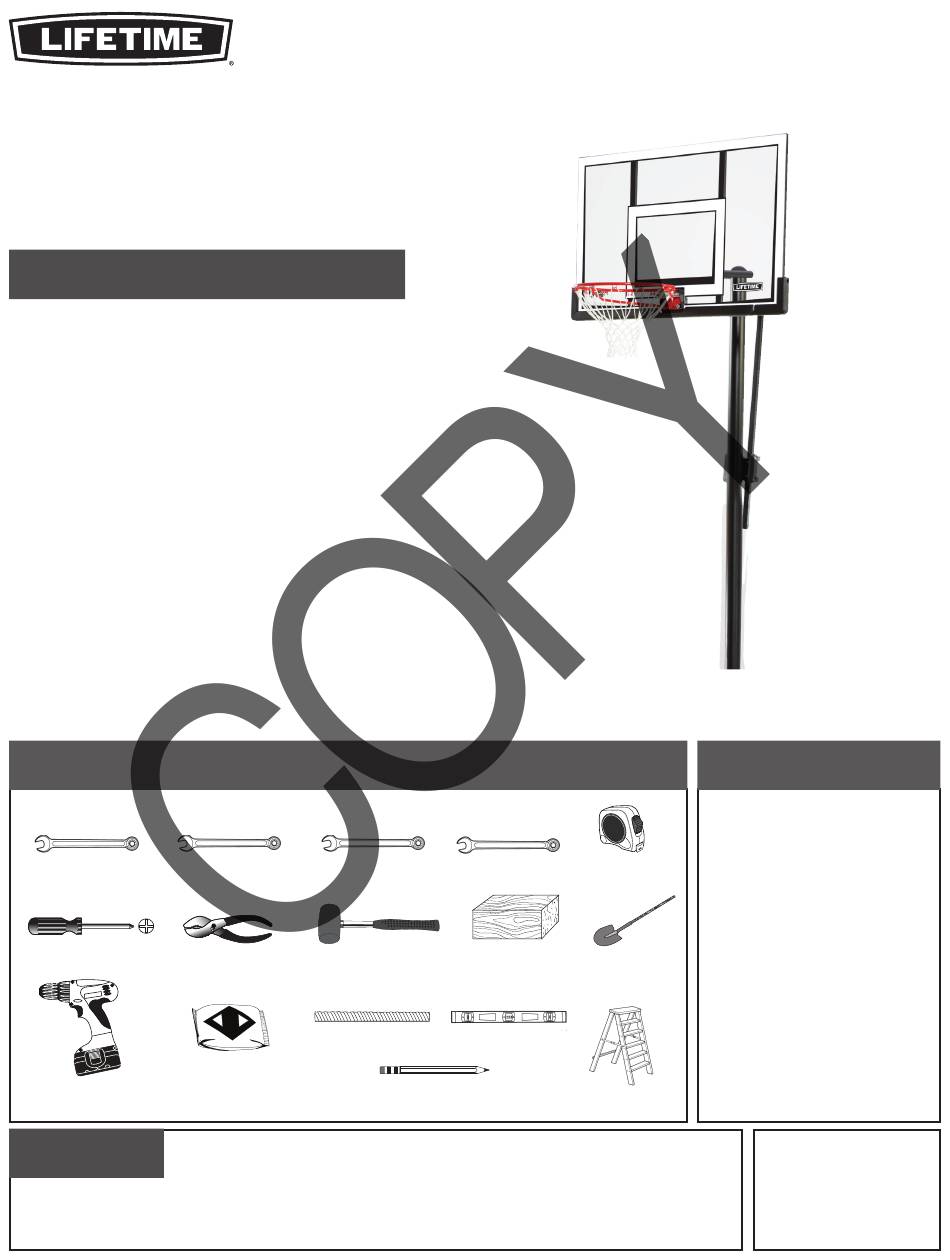

FRONT ADJUST
BASKETBALL SYSTEM
MODEL 90599
BEFORE ASSEMBLY:
• Requires at least 493 lb (224 kg) of cement mix to fi ll a
3
3
volume of 3.7 ft
(0.105 m
).
• Requires 3+ days for concrete to cure, plus 3-4 hours
to complete assembly steps.
• 2+ people recommended for setup.
Save this instruction in the event that the manufacturer has
to be contacted for replacement parts.
TOOLS REQUIRED
1/2" (13 mm)
(x2)
(x1)
493 lb (224 kg)
(x1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am-5:00 pm (Monday-Friday) MST
and 9:00 am-1:00 pm Saturday MST
®
7/16" (11 mm)
9/16" (14 mm)
(x2)
(x2)
(x1)
(x1)
Cement Mix
Rebar
(3')
Live Chat:
www.lifetime.com
Video Instructions:
www.youtube.com/lifetimeproducts
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
3/4" (19 mm)
(x2)
(x1)
(x1)
(x1)
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu

TABLE OF CONTENTS

Icon Legend................................4
Notices....................................5
Initial Set Up..............................6
(x1)
Pole Assembly..........................12
(x1)
Handle Assembly.......................26
Final Assembly..........................33
Maintenance Instructions..........39
Warning Sticker.......................40
Registration........................44
Warranty................................45
(x1)
Model Number: 90599
Product ID:

Advertisement

loading
Need help?

Need help?

Do you have a question about the FRONT ADJUST 90599 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lifetime FRONT ADJUST 90599

Summary of Contents for Lifetime FRONT ADJUST 90599

  • Page 1: Table Of Contents

    Registration......44 493 lb (224 kg) Warranty........45 (x1) (x1) (x1) Model Number: 90599 QUESTIONS? CONTACT LIFETIME CUSTOMER SERVICE: Product ID: Call: 1-800-225-3865 For Customer Service in Mainland Live Chat: www.lifetime.com Europe and the United Kingdom, 7:00 am–5:00 pm (Monday–Friday) MST E-mail: cs@lifetimeproducts.eu and 9:00 am–1:00 pm Saturday MST...

  • Page 2: Icon Legend

    ICON LEGEND • Indicates special heed should be taken when reading. • Indicates the parts to be used for a section. • Indicates no parts required for a specifi c section. • Indicates the hardware to be used for a section. •...

  • Page 3: Notices

    WARNINGS & NOTICES SAFETY INSTRUCTIONS FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE AND WILL VOID WARRANTY. Owner must ensure that all players know and follow these rules for safe operation of the system. To ensure safety, do not attempt to assemble this product without following the instructions carefully. Check entire box and inside all packing material for parts and/or additional instruction material.
  • Page 4 GROUND PREPARATION HARDWARE REQUIRED Hardware Bag PARTS REQUIRED Metal Parts ALE (x1) TOOLS REQUIRED 3 ft. Rebar Level Cement Mix 493 lb /224 kg...
  • Page 5 SECTION 1 (CONTINUED) TOOLS AND HARDWARE REQUIRED • Dig a round hole 24” deep and 18” in diameter. If you live in an area where frost heaves may pose a problem, consult your local building inspector to determine the proper hole depth. The edge of the hole should be fl ush with the edge of the playing surface.
  • Page 6 SECTION 1 (CONTINUED) TOOLS AND HARDWARE REQUIRED 493 lb /224 kg • Mix the concrete. Save 1/2 bag of concrete mix to use later in the assembly. Pour the mixed concrete into the hole until it is fi lled to the level of the playing surface. •...
  • Page 7 SECTION 1 (CONTINUED) TOOLS AND HARDWARE REQUIRED 3 ft. Rebar • The slots in the Bottom Pole must be parallel to the playing surface. If necessary, insert a straight object (a ruler, wire, etc.) through the slots in the Bottom Pole and rotate the pole until the object is parallel to the playing surface. •...
  • Page 8 SECTION 1 (CONTINUED) TOOLS AND HARDWARE REQUIRED (1/2 Bag) • Mix the remaining 1/2 bag of concrete and pour the concrete into the Bottom Pole (ALE) until it is just below the slots in the top of the pole. Then tamp the concrete down in the Bottom Pole (ALE) with a broom handle to remove any air pockets.

  • Page 9: Pole Assembly

    POLE ASSEMBLY HARDWARE REQUIRED Hardware Bag ABZ (x2)* ABE (x2) ADS (x2)* ABR (x2) CIH (x2)* AAF (x2) *Note: Only one #14 x 1” Self-Tapping Screw (ABZ), one Domed Counter- sink Washer (CIH) and one 1/4” x 3/4” Pan Head Screw (ADS) will be used for this section.
  • Page 10 SECTION 2 (CONTINUED) TOOLS AND HARDWARE REQUIRED ABE (x2) AAF (x2) ABR (x2) • Insert the 3/8” x 4” Hex Bolts (ABE) with the 3/8” Washers (AAF) into the Middle Pole (ALF) as shown. Then slide the 1/2” x 3.41” Spacers (ABR) onto the Hex Bolts. Large Holes Small Holes Warning...
  • Page 11 SECTION 2 (CONTINUED) TOOLS AND HARDWARE REQUIRED 9/16" (x2) ADS (x1) ABB (x2) CIH (x1) • Place the Pole Bracket (ALL) onto the 3/8” x 4” Hex • Align the hole in the Top Pole (ALH) with the slot in Bolts (ABE), and attach it to the Middle Pole (ALF) the Middle Pole (ALF) and slide the Top Pole over the with the hardware shown.
  • Page 12 SECTION 2 (CONTINUED) TOOLS AND HARDWARE REQUIRED Wood Block ABZ (x1) ATTENTION: THIS STEP CANNOT BE REVERSED! • In order to seat the Poles, strike each end of the Pole very hard fi ve to six times on a piece of scrap wood or cardboard. This must be done even if the Poles cover the slots before seating has occurred.

  • Page 13: Backboard To Rim Assembly

    BACKBOARD TO RIM ASSEMBLY HARDWARE REQUIRED Hardware Bag AAM (x2) DFE (x4) AAV (x2) ABB (x4) AAJ (x2) ABD (x2) ABK (x4) ABF (x2) 5/16” 5/16” 7/16” APZ (x1) AOW (x1) AJW (x2) PARTS REQUIRED Metal Parts Plastic Parts ALX (x1) AJI (x1) DFD (x1) ALD (x1)
  • Page 14 SECTION 3 (CONTINUED) TOOLS AND HARDWARE REQUIRED 1/2" (13 mm) (x2) AAM (x2) (x1) AAJ (x2) ABF (x2) ABD (x2) • Insert two Bolts (AAM) with Washers (ABD) and Rubber Washers (ABF) through the holes indicated in the back of the Rim (ALX) as shown.
  • Page 15 SECTION 3 (CONTINUED) TOOLS AND HARDWARE REQUIRED 1/2”(x2) ABK (x2) APZ (x1) • Connect the Rim (ALX) and Plastic Guard (ALD) to the Backboard (AJI) with the hardware shown. Secure the 5/16” Nylock Flange Nuts (ABK) onto the Tap Bolts (AAM).
  • Page 16 SECTION 3 (CONTINUED) TOOLS AND HARDWARE REQUIRED 1/2”(x2) AOW (x1) AJW (x2) 7/16”(x2) AAV (x2) ABK (x2) 9/16”(x2) DFE (x4) ABB (x4) • Turn the Backboard Assemly over. Thread the 5/16” Jam Nuts (AAV) onto each end of the U-Bolt (APZ) as far as they will go.

  • Page 17: Backboard To Pole Assembly

    BACKBOARD TO POLE ASSEMBLY HARDWARE REQUIRED Hardware Bag 7 5/8 in/po (19.4 cm) 7 5/8” (19.4 cm) GBU (x2) ABN (x8) AAX (x4) 7 1/16 in/po (18 cm) 7 1/16” (18 cm) AAD (x2) DGA (x2) 7 1/2 in/po (19 cm) 7 1/2 in (19 cm) 7 1/2”...
  • Page 18 SECTION 4 (CONTINUED) TOOLS AND HARDWARE REQUIRED 7 5/8” (19.4 cm) 3/4" (19 mm) (x2) AAX (x1) GBU (x1) ABN (x2) DGA (x1) • Attach the Short Extension Arms (AKC) to the Backboard Brackets in the location shown with the hardware indicated. Secure only by hand at this point.
  • Page 19 SECTION 4 (CONTINUED) TOOLS AND HARDWARE REQUIRED 7 5/8 in/po (19.4 cm) 7 5/8” (19.4 cm) 7 1/2 in/po (19 cm) 7 1/2” 3/4" (19 mm) (x2) 9/16" (14 mm) (x2) DFC (x1) GBU (x1) DGA (x1) ABN (x2) AAX (x1) ABB (x1) •...
  • Page 20 SECTION 4 (CONTINUED) TOOLS AND HARDWARE REQUIRED 7 1/16 in/po (18 cm) 7 1/16” (18 cm) 3/4" (19 mm) (x2) AAD (x1) AAX (x1) ABN (x2) • Attach both Counterbalance Springs (AJY) to the Hex Bolt (DFC) as shown. • Lay the Backboard assembly next to the Pole assembly. Rest the Rim on cardboard to prevent scratching. Then secure the Short Extension Arms (AKC) to the Top Pole (ALH) with the hardware shown.

  • Page 21: Parts Identifier

    PARTS IDENTIFIER This page intentionally left blank...

  • Page 22: Warning Sticker

    PARTS IDENTIFIER Metal Part 43 3/8” (110 cm) ALH (x1) ALL (x1) Warning Sticker 43 3/8” (110 cm) ALF (x1) AJY (x2) ” ALE (x1) ” 1/16 AKB (x2) 21 1/8” (53.6 cm) CNG (x1) AKC (x2) CNF (x1) ALB (x1) AKQ (x1) ALX (x1) AMY (x2)
  • Page 23 PARTS IDENTIFIER Plastic Parts AKP (x1) AJI (x1) AJS (x1) ALD (x1) AKI (x2) CNJ (x1) AMN (x2) AJQ (x1) AJX (x2) ALM (x1) AKZ (x1) HARDWARE REQUIRED...
  • Page 24 PARTS IDENTIFIER / IDENTIFICADOR DE PIEZAS / IDENTIFICATEUR DE PIÈCES This page intentionally left blank...
  • Page 25 SECTION 4 (CONTINUED) TOOLS AND HARDWARE REQUIRED 7 1/16 in/po (18 cm) 7 1/16” (18 cm) 3/4" (19 mm) (x2) AAX (x1) AAD (x1) ABN (x2) • Secure the Short Extension Arms (AKC) to the Top Pole (ALH) with the hardware shown. •...
  • Page 26 HANDLE ASSEMBLY HARDWARE REQUIRED Hardware Bag 6 5/8” (168mm) 7 1/16” 7” AAZ (x1) AAD (x1) ADR (x4) CNH (x2) AAC (x1) CNI (x4) ABO (x2) ABB (x1) AAJ (x4) AAN (x1) AAX (x1) CNE (x1) AQH (x2) AZP (x2) PARTS REQUIRED Metal Part ALB (x1)
  • Page 27 SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED ADR (x4) AQH (x2) • Attach the Lock Tab (CNF) to the Triggers (AMN) with • Position the Trigger Assembly onto the Handle the hardware shown, and slide the Trigger Spring Brace (CNG) as shown. Place the Handle Grips (AKI) (AQH) onto the Triggers in the locations shown.
  • Page 28 SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED 7/16”(x2) AZP (x2) CNI (x4) CNH (x2) AAJ (x4) • Secure the Handle Grips to the Handle Assembly with the hardware shown. • Attach the Handle Assembly to the Outer Tube (ALB) with the hardware shown. Fit the Lock Tab (CNF) into the notch on the Outer Tube.
  • Page 29 SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED CNE (x1) • Attach the Outer Tube Bushing (CNJ) to the Outer Tube (ALB). • Slide the Two-Head Snap Button (CNE) into the hole at the top of the Inner Channel (AKQ). Orient the Height Sticker (AKP) as shown and place it within the grooves of the Inner Channel.
  • Page 30 SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED • While squeezing both Triggers (AMN), insert the notched end of the Inner Channel (AKQ) into the Outer Tube (ALB) as shown. Slide the Inner Channel into the Outer Tube until the 10’ mark has been reached. Then release the Trigger so it clicks into place.
  • Page 31 SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED 6 5/8” (168mm) 7 1/16” 1/2”(x2) AAD (x1) 3/4”(x2) AAC (x1) AAN (x1) ABO (x2) AAX (x1) • Attach the Inner Channel (AKQ) to the Pole Bracket (ALL) with the hardware shown. • Do not overtighten the Cap Nut. If the end of the Bolt breaks through the plastic cap, call our Customer Service Department.
  • Page 32 SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED 7” (x1) ABB (x1) AAZ (x1) 5.11 • Insert the Hex Bolt (AAZ) through the holes in the Short Extension Arms (AKC) that are closest to the Pole. Secure the Hex Bolt to the Short Extension Arms with a Centerlock Nut (ABB). •...
  • Page 33 FINAL ASSEMBLY HARDWARE REQUIRED Hardware Bag ADP (x10)* ABZ (x1) ADS (x1) #10 x 7/8” (*Only eight of the 10 Screws will be used) CIH (x1) (*This Hardware taken from the hardware bag used in Section 2.) PARTS REQUIRED Plastic Parts AJQ (x1) ALM (x1) AJX (x2)
  • Page 34 SECTION 6 (CONTINUED) TOOLS AND HARDWARE REQUIRED ADP (x4) • Remove the plastic fi lm from the Backboard (AJI), and attach the Center Frame Pad (AJQ) to the Backboard in the location shown with the hardware indicated. Make sure that the Center Frame Pad is centered on the metal piece of the Backboard as shown.
  • Page 35 SECTION 6 (CONTINUED) TOOLS AND HARDWARE REQUIRED ADP (x4) • Attach the Corner Frame Pads (AJX) to the Backboard (AJI) in the locations shown with the hardware indicated. • Attach the Net (ALX). Note: If a replacement Net is needed, please call our Customer Service Department. Our Nets are shorter than average to reduce the risk of entanglement.
  • Page 36 SECTION 6 (CONTINUED) TOOLS AND HARDWARE REQUIRED ADS (x1) CIH (x1) To prevent serious injuries, two adults are • Make sure the Backboard faces the playing surface and align the small hole in the Middle Pole (ALF) with the correct slot in the Bottom Pole (ALE).
  • Page 37 SECTION 6 (CONTINUED) TOOLS AND HARDWARE REQUIRED ABZ (x1) • After the Poles have been seated, insert a #14 x 1”Self-Tapping Screw (ABZ) directly into the back of the Middle Pole just above where it meets the Bottom Pole. • Chuck the #14 x 1” Self-Tapping Screw directly into an Electric Drill for easy installation, or use a 3/8”...
  • Page 38 MAINTENANCE / MANTENIMIENTO / ENTRETIEN The life of your basketball system depends on many variables. The climate, exposure to corrosives such as salt, pesticides, or herbicides, and excessive use or misuse can all contribute to Pole failure, which may cause property damage or personal injury. Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion.
  • Page 39 Son mécanisme a été conçu uniquement pour soutenir le poids du panneau et de l’anneau. N’accrochez rien au manche, à l’anneau, au panneau ni aux leviers sous peine d’endommager l’équipement et d’annuler la garantie. Lifetime Products, Inc., Clearfield, UT 84016 www.lifetime.com 7/12/2016 # 1176611...
  • Page 40 NOTES / REMARQUES / NOTAS...
  • Page 41 NOTES / REMARQUES / NOTAS...

  • Page 42: Registration

    REGISTER today! ENREGISTREZ VOTRE PRODUIT EN LIGNE AU WWW.LIFETIME.COM Chez Lifetime®, nous nous engageons à fournir des produits innovateurs de qualité. Lors de votre inscription, vous aurez l’occasion de nous faire parvenir vos commentaires. Votre opinion est importante pour nous.
  • Page 43 2. This warranty is nontransferable and is expressly limited to the repair or replacement of defective product. If the product is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts at no cost to the purchaser.
  • Page 44 7:00 am–5:00 pm (M–F) MST and 9:00 am–1:00 pm Saturday MST ® AMÉLIORER L’ACHAT LIFETIME EN AJOUTANT DES ACCESSOIRES OU D’AUTRES PRODUITS ® Pour acheter des accessoires ou des autres produits Lifetime , visiter le : www.lifetime.com (Anglais seulement) Ou composer le 1-800-424-3865 Du lundi au vendredi de 7 h à...
