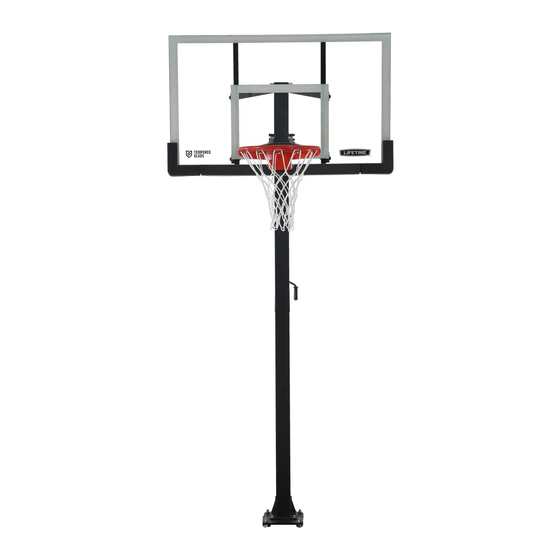

Basketball system
Hide thumbs
Table of Contents

Advertisement

Quick Links

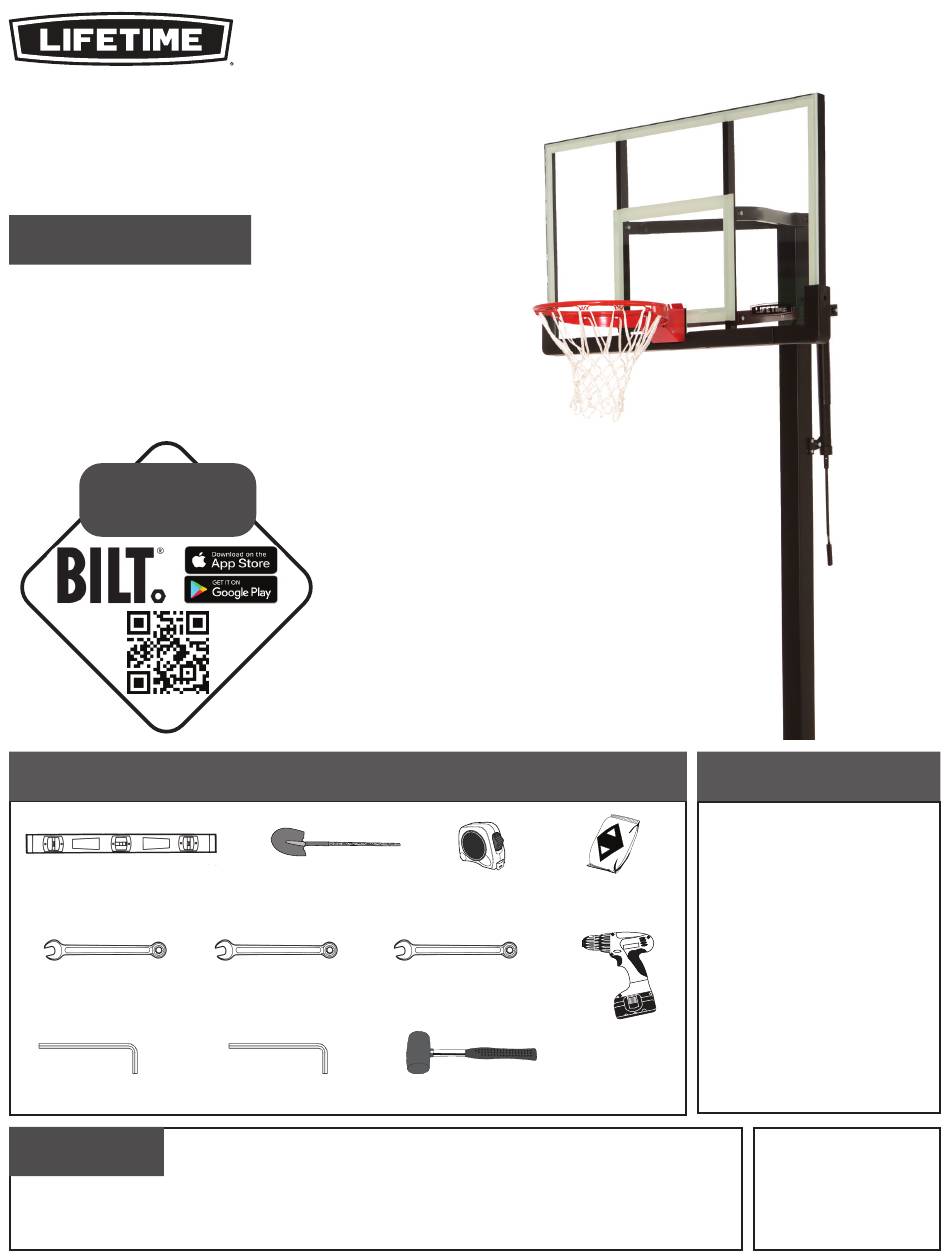

CRANK ADJUST
BASKETBALL SYSTEM
MODEL 90568
BEFORE ASSEMBLY:
• Requires at least 1040 lb (472 kg) of concrete mix to fi ll
a volume of 7.78 ft
(0.22 m
3
• Requires at least 3 days (72 hours) for concrete to
cure, plus 3-4 hours to complete assembly steps
• At least 3 people recommended for setup
WATCH
3D ANIMATION
OF THE FULL ASSEMBLY
SCAN THE
CODE
TOOLS REQUIRED
Carpenter's Level
1/2" (x2)
5/16"
(x1, included)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Dial 1-800-225-3865
7:00 am-5:00 pm (M-F) MST
and 9:00 am-1:00 pm (Sat) MST
®
)
3
OR SEARCH
1189604
Shovel
3/4" (x2)
3/8"
(x1, included)
Live Chat:
www.lifetime.com/customerservice
(Click on the "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Tape Measure
Concrete Mix
(80 lb bag x 13)
9/16" (x2)
Electric Drill
Rubber Mallet
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu

TABLE OF CONTENTS

Icon Legend................................2
Warnings & Notices.....................3
Initial Setup...............................4
Pole Assembly............................7
Handle Assembly......................14
Final Assembly.........................27
Registration........................33
Warning Sticker........................34
Warranty................................35
Model Number: 90568
Product ID:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRANK ADJUST 90568 and is the answer not in the manual?

Questions and answers

Related Manuals for Lifetime CRANK ADJUST 90568

Summary of Contents for Lifetime CRANK ADJUST 90568

  • Page 1: Table Of Contents

    3/8" Warning Sticker......34 Rubber Mallet Warranty........35 (x1, included) (x1, included) Model Number: 90568 QUESTIONS? CONTACT LIFETIME CUSTOMER SERVICE: Product ID: Dial 1-800-225-3865 Live Chat: For Customer Service in Mainland Europe and the United Kingdom, www.lifetime.com/customerservice 7:00 am–5:00 pm (M–F) MST E-mail: cs@lifetimeproducts.eu...

  • Page 2: Icon Legend

    ICON LEGEND • Indicates special heed should be taken when reading. • Indicates the parts to be used for a section. • Indicates no parts required for a specifi c section. • Indicates the hardware to be used for a section. •...

  • Page 3: Warnings & Notices

    WARNINGS & NOTICES SAFETY INSTRUCTIONS FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE AND WILL VOID WARRANTY. Owner must ensure that all players know and follow these rules for safe operation of the system. To ensure safety, do not attempt to assemble this product without following the instructions carefully. Check entire box and inside all packing material for parts and/or additional instruction material.

  • Page 4: Initial Setup

    INITIAL SETUP HARDWARE REQUIRED Hardware Blister Pack AE0 (x1) CYV (x1) AOE (x8) PARTS REQUIRED Metal Parts AEZ (x4) AEI (x4) AKT (x1) TOOLS REQUIRED 3/4" Carpenter’s Level Shovel Concrete Mix Tape Measure (x2) (80 lb bag x 13)
  • Page 5 u SECTION 1 (CONTINUED) TOOLS AND HARDWARE REQUIRED 3/4" (x2) AE0 (x1) AOE (x8) CYV (x1) • Dig a hole 30" (76.2 cm) deep and 21" (53 cm) square. The edge of the hole should be flush with the edge of the playing court.
  • Page 6 u SECTION 1 (CONTINUED) TOOLS AND HARDWARE REQUIRED 80 lb (x13) • If you are using concrete mix, mix the concrete • Center the template (AKT) over the hole. Insert according to the instructions on the bags. Please the J-bolts (AEI) into the concrete and agitate the note that a thicker mix of concrete will dry stronger.

  • Page 7: Pole Assembly

    POLE ASSEMBLY HARDWARE REQUIRED Hardware Blister Pack CMV (x1) CUB (x2) EJH (x4) EJG (x2) ELW (x1) PARTS REQUIRED Large Parts ALH (x1) ALE (x1) EJS (x2) TOOLS REQUIRED 9/16" (x1) 5/16" (x1, included) Electric Drill...
  • Page 8 u SECTION 2 (CONTINUED) TOOLS AND HARDWARE REQUIRED • Slide the flared end of the top pole (ALH) onto • Raise the pole assembly about 12 inches off to the swaged end of the bottom pole (ALE). The the ground. Strike the end of the poles against small hole in the bottom of the top pole should a piece of scrap wood or thick cardboard three face away from the playing surface.
  • Page 9 u SECTION 2 (CONTINUED) TOOLS AND HARDWARE REQUIRED EJG (x2) 9/16" 5/16" CUB (x2) CMV (x1) EJH (x4) • Use the screw (CMV) provided to secure the top pole to the bottom pole. You may need to use a hex driver or chuck the screw directly into an electric drill.

  • Page 10: Extension Arm Assembly

    EXTENSION ARM ASSEMBLY HARDWARE REQUIRED Hardware Blister Pack EJM (x2) CUB (x1) CUG (x2) CYF (x2) EJL (x1) AOQ (x1) AEG (x4) DIQ (x4) PARTS REQUIRED Metal Parts AKD (x2) AKE (x1) TOOLS REQUIRED 3/4" 9/16" Rubber Mallet 3/8" (included) 5/16"...
  • Page 11 u SECTION 3 (CONTINUED) TOOLS AND HARDWARE REQUIRED 3/4" AEG (x2) 3/8" CUG (x1) DIQ (x2) CYF (x1) • Secure the lower extension arm assembly (AKE) through the first set of holes on the pole above the handle brackets. Ensure the large plastic washers (DIQ) are placed between the extension arms and the pole on each side.
  • Page 12 u SECTION 3 (CONTINUED) TOOLS AND HARDWARE REQUIRED 9/16" 5/16" EJL (x1) CUB (x1) EJM (x2) • Install the hardware indicated in the location shown.
  • Page 13 u SECTION 3 (CONTINUED) TOOLS AND HARDWARE REQUIRED 3/4" 3/8" CUG (x1) DIQ (x2) AEG (x2) CYF (x1) • Attach the upper extension arms (AKD) to the pole as shown.

  • Page 14: Handle Assembly

    HANDLE ASSEMBLY HARDWARE REQUIRED Hardware Blister Pack AEG (x4) CUG (x1) DIQ (x2) EJQ (x1) CYF (x2) PARTS REQUIRED Large Parts ELX (x1) TOOLS REQUIRED 3/4" 3/8"...
  • Page 15 u SECTION 4 (CONTINUED) TOOLS AND HARDWARE REQUIRED 3/4" 3/8" CUG (x1) AEG (x2) CYF (x1) • Align the spacer at the top of the crank adjust assembly (ELX) with the holes in the lower extension arms. Secure using the hardware shown, but do not overtighten this hardware.
  • Page 16 u SECTION 4 (CONTINUED) TOOLS AND HARDWARE REQUIRED 3/4" EJQ (x1) 3/8" DIQ (x2) AEG (x2) CYF (x1) • Install the hardware indicated in the location shown. Make sure the large plastic spacers (DIQ) are placed between the crank adjust assembly and the handle brackets.

  • Page 17: Backboard-To-Rim Assembly

    BACKBOARD-TO-RIM ASSEMBLY HARDWARE REQUIRED Hardware Blister Pack 5 9/16" ANM (x2) ANL (x1) ANJ (x2) ADX (x2) BGZ (x1) ELG (x2) ANK (x4) ABB (x2) ABK (x4) ANN (x2) ABD (x8) AAX (x1) PARTS REQUIRED Glass and Metal Parts AJI (x1)
  • Page 18 BACKBOARD-TO-RIM ASSEMBLY PARTS REQUIRED Metal Parts BPZ (x1) AMK (x1) BGY (x1) BQA (x1) AMA (x1) ALY (x1) ANO (x1) AMB (x1) AMC (x1) ALX (x1) TOOLS REQUIRED 1/2" 9/16" 3/4"...

  • Page 19: Parts Identifier

    PARTS IDENTIFIER This page intentionally left blank...
  • Page 20 PARTS IDENTIFIER Metal Parts ALH (x1) ALE (x1) BPZ (x1) AMK (x1) BGY (x1) BQA (x1) AMA (x1) ALY (x1) ANO (x1) AMB (x1) AMC (x1) EJS (x2)
  • Page 21 PARTS IDENTIFIER Metal Parts ELX (x1) AKD (x2) AJI (x1) AEZ (x4) AEI (x4) ALX (x1) AKE (x1) AKT (x1) Plastic Parts AKP (x1) AKZ (x1) HARDWARE PACK S...
  • Page 22 PARTS IDENTIFIER This page intentionally left blank...
  • Page 23 • In case of any trouble with this section, scan the code below to view a video on its assembly. • http://go.lifetime.com/crankadjustbackboardtorim • Lay the backboard (AJI) face up with the rim holes exposed over the edge of a table. Place the rim impact spacer (BGY) in the backboard.
  • Page 24  SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED 5 9/16" ABK (x2) ANL (x1) ABD (x4) AAX (x1) ANK (x2) ELG (x2) • Secure the rim adapter plate (ALY) to the backboard (AJI) by using the hardware as shown. • Only fi nger-tighten this hardware for now.
  • Page 25  SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED ANM (x2) ABB (x2) ANK (x2) • Slide the spring holder clevis (AMK) onto the eye bolt (BQA) and secure with the hardware shown. • Only fi nger-tighten this hardware for now.
  • Page 26  SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED 9/16" 1/2" BGZ (x1) ANN (x2) 3/4" • Slide the compression spring (BGZ) onto the eye bolt (BQA), and secure with the hardware shown. Tighten the nuts (ANN) to adjust rim tension. ANO (x1) •...
  • Page 27  SECTION 5 (CONTINUED) TOOLS AND HARDWARE REQUIRED ADX (x2) • Attach the Rim Cover Plate (AMA) to the Rim with the hardware shown.

  • Page 28: Backboard-To-Pole Assembly

    BACKBOARD-TO-POLE ASSEMBLY HARDWARE REQUIRED Hardware Blister Pack EKM (x4) CUB (x4) EJH (x12) PARTS REQUIRED NO NEW PARTS ARE REQUIRED FOR THIS SECTION TOOLS REQUIRED 9/16" 5/16"...
  • Page 29 u SECTION 6 (CONTINUED) TOOLS AND HARDWARE REQUIRED 9/16" 5/16" EKM (x2) CUB (x2) EJH (x6) CAUTION: AT LEAST TWO ADULTS ARE REQUIRED TO COMPLETE ASSEMBLY. TO PREVENT SERIOUS INJURIES, THE POLE SHOULD BE HELD DOWN BY AT LEAST ONE ADULT AT ALL TIMES. •...
  • Page 30 u SECTION 6 (CONTINUED) TOOLS AND HARDWARE REQUIRED 9/16" 5/16" EKM (x2) CUB (x2) EJH (x6) • Attach the upper extension arm (AKD) to the backboard (AJI) using the hardware shown. • Repeat step 6.2 to attach the remaining upper extension arm to the backboard.

  • Page 31: Final Assembly

    FINAL ASSEMBLY HARDWARE REQUIRED Hardware Blister Pack AQN (x4) AOR (x4) ADM (x4) AQO (x4) PARTS REQUIRED 1202464_CrankAdjust_Height_Sticker.pdf 1 7/1/2019 1:14:25 PM • DO NOT PROCEED with this Section until 7.5' the concrete from Section 1 has been allowed to cure at least 72 hours (3 days). 8.5' AKZ (x1) 9.5'...
  • Page 32 u SECTION 7 (CONTINUED) TOOLS AND HARDWARE REQUIRED 3/4" AQN (x4) DO NOT PROCEED WITH THIS SECTION UNTIL THE CONCRETE FROM SECTION 1 HAS BEEN ALLOWED TO CURE AT LEAST 72 HOURS (3 DAYS). • Stack a star washer (AQN) onto the exposed ends of the J-bolts (AEI). •...
  • Page 33 u SECTION 7 (CONTINUED) TOOLS AND HARDWARE REQUIRED • Position the pole so the slots in the plate at the bottom of the pole align with the two J-bolts closest to the playing surface. Push the plate against the bolts, ensuring the slots are aligned exactly with the bolts. With the system adjusted to its lowest position, have at least three adults slowly and carefully lift the pole so the bolts slide through the slots.
  • Page 34 u SECTION 7 (CONTINUED) TOOLS AND HARDWARE REQUIRED 3/4" ADM (x4) AOR (x4) • At least two people should support the pole as A MINIMUM OF THREE ADULTS ARE REQUIRED FOR THIS STEP. one person slides a washer (AOR) onto to the end •...
  • Page 35 u SECTION 7 (CONTINUED) TOOLS AND HARDWARE REQUIRED AQO (x4) • Place a plastic cap (AQO) onto each J-bolt. • Tighten the four hex nuts (ADM) above the plate at the top of the pole plate until they are secure against the plate, ensuring the backboard remains vertical.

  • Page 36: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS / ENSAMBLAJE DEL ARMAZÓN / ASSEMBLAGE DE LA CHARPENTE The life of your basketball system depends on many variables. The climate, exposure to corrosives such as salt, pesticides, or herbicides, and excessive use or misuse can all contribute to Pole failure, which may cause property damage or personal injury. Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion.

  • Page 37: Registration

    à des tiers, et ne leur permettra pas d’utiliser vos données personnelles à leurs propres fi ns. Nous vous invitons à lire notre politique de confi dentialité à www.lifetime.com (en anglais seulement) ENREGISTRER CE PRODUIT aujourd’hui! REGISTRAR EL PRODUCTO EN LÍNEA EN WWW.LIFETIME.COM...

  • Page 38: Warning Sticker

    Son mécanisme a été conçu uniquement pour soutenir le poids du panneau et de l’anneau. N’accrochez rien au manche, à l’anneau, au panneau ni aux leviers sous peine d’endommager l’équipement et d’annuler la garantie. Lifetime Products, Inc., Clearfield, UT 84016 www.lifetime.com 7/12/2016 # 1176611...
  • Page 39 3. This warranty is nontransferable and is expressly limited to the repair or replacement of defective product. If the product is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts at no cost to the purchaser.
  • Page 40 ® ENHANCE YOUR LIFETIME PURCHASE BY ADDING ACCESSORIES OR OTHER GREAT PRODUCTS To purchase accessories or other Lifetime products, visit us at: ® www.lifetime.com Or call: 1-800-424-3865 7:00 am–5:00 pm (M–F) MST and 9:00 am–1:00 pm Saturday MST www.lifetime.com © 2021...
