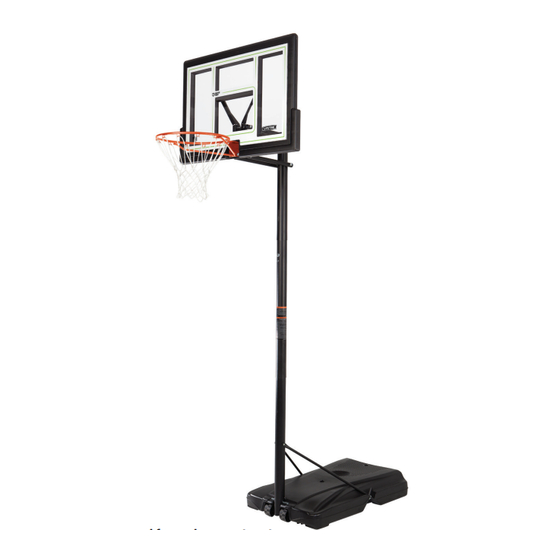

QUICK ADJUST
BASKETBALL SYSTEM
MODEL 90584
BEFORE ASSEMBLY:
• Decide with what to fi ll the base
(sand is recommended)
• At least 2 adults recommended for setup
WATCH
3D ANIMATION
OF THE FULL ASSEMBLY
SCAN THE
OR SEARCH
CODE
1197973
Save this instruction in the event that the manufacturer has to be contacted for replacement parts.
TOOLS REQUIRED
1/2" (≈13 mm), 7/16" (≈11 mm),
9/16" (≈14 mm), 3/4" (≈19 mm),
3/8" (≈10 mm)
(2 each)
(1)
(1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Dial 1-800-225-3865
7:00 am-5:00 pm (M-F) MST
and 9:00 am-1:00 pm (Sat) MST
®
3/16" (≈5 mm)
(2, included)
(1)
(1)
Live Chat:
www.lifetime.com/customerservice
(Click on the "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
(1)
310 lb (≈141 kg)
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: cs@lifetimeproducts.eu

TABLE OF CONTENTS

Icon Legend................................4
Warnings and Notices..................5
Pole Assembly............................6
Pole-to-Base Assembly..............10
Parts Identifi er..........................i - iv
Final Assembly..........................22
Height Adjustment....................25
Moving the System....................26
Maintenance Instructions..........27
Warning Sticker........................28
Registration........................32
Warranty................................33
Model Number: 90584
Product ID:
