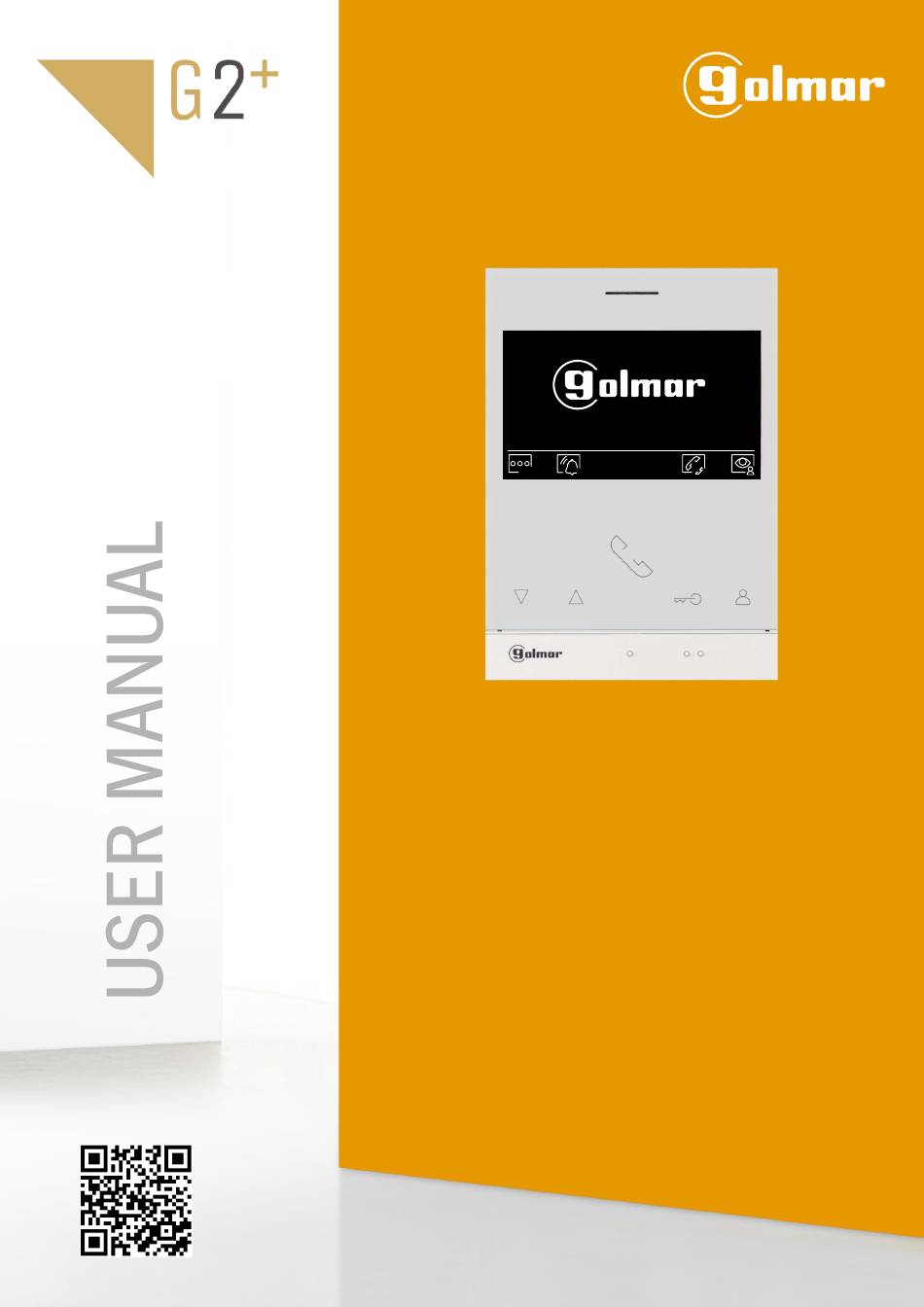

TECHNOLOGY

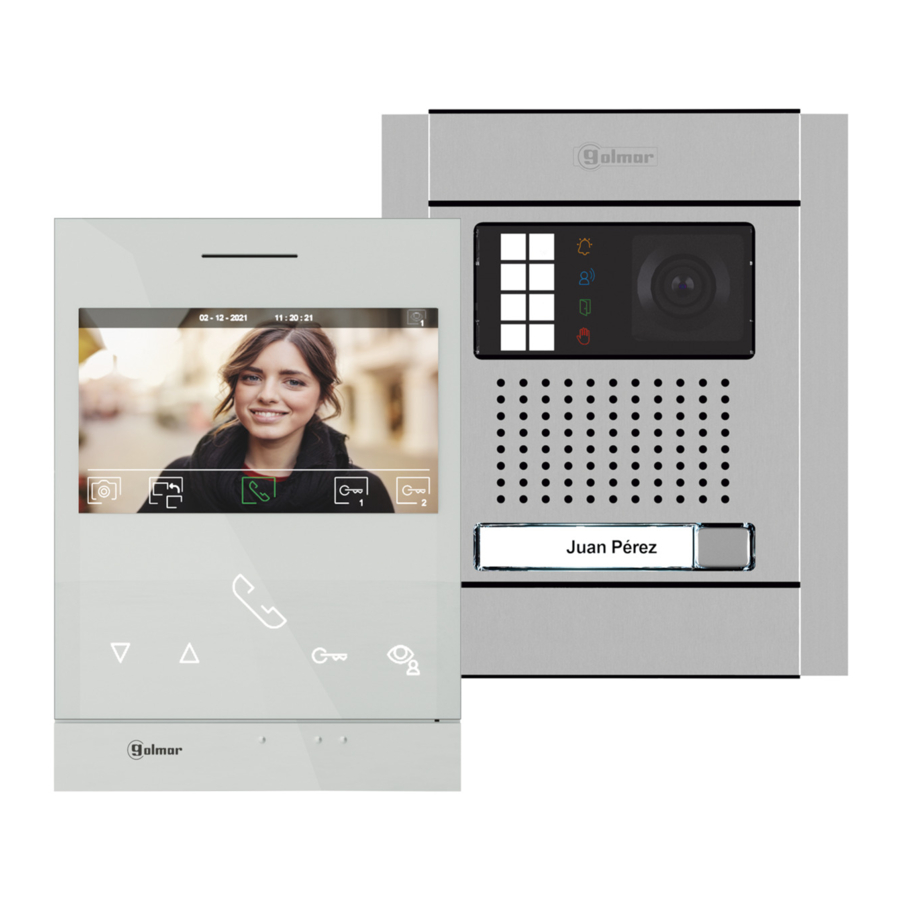

Art 4
LITE
/G2+ monitor
Art 4
H LITE
/G2+ monitor
Hands-free
2-wire installation
Code 50122623
TART
4 LITE/
G2+ EN
REV.0220

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Art 4 LITE/G2+ and is the answer not in the manual?

Questions and answers

Roland Beuselinck
July 3, 2025

Hoe stel ik geluid in

0

Related Manuals for golmar Art 4 LITE/G2+

Summary of Contents for golmar Art 4 LITE/G2+

  • Page 1 TECHNOLOGY Art 4 LITE /G2+ monitor Art 4 H LITE /G2+ monitor Hands-free 2-wire installation Code 50122623 TART 4 LITE/ G2+ EN REV.0220...

  • Page 2: Table Of Contents

    “TS5110 ART 4 LITE (cód. 50122 )” user manual from the next QR o n r i the link Golmar web: h ps://doc.golmar.es/search/manual/50122625 TS5110 ART 4 LITE MANUAL SET-UP WARNINGS - Always disconnect the power supply before installing or marking modifications to the devices.

  • Page 3: Characteristics

    MONITOR ART 4 LITE /G2+ CHARACTERISTICS Hands-free monitor. - 4,3" TFT colour screen Monitor with simple installation non-polarised 2 wires bus). ART 4H LITE monitor interacts with hearing aids equipped with T-mode, making conversation between apartment and door panel easier. - ush button for access and selection of menu function.

  • Page 4: Art 4 Lite /G2+ Monitor

    OFF = 0 ON = 1 A. Speaker. D. 4.3" TFT colour screen. E. Golmar use. B. Function buttons, access and selection of menu functions. F. Microphone. The function of each button is shown on the monitor G. Communication with hearing aids (...

  • Page 5: Installation

    MONITOR ART 4 LITE /G2+ INSTALLATION Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2. If you are going to use an embedding box to pass the wiring through, make sure that it is in line with the holes corresponding to the box model chosen and fix the connector.

  • Page 6: Main Menu

    MONITOR ART 4 LITE /G2+ MAIN MENU Main menu If the device is in standby (screen switched off), to access the main menu, press any of the buttons of the monitor. Then press the button located just below the corresponding icon. The device will return to standby mode after 0 seconds without activity.

  • Page 7: Settings Menu

    MONITOR ART 4 LITE /G2+ SETTINGS MENU Settings menu Returning to the main menu: Press the button below icon to return to the main menu. Press the button below icon to " staircase light " activation (SAR-G2 + & SAR-12/24 modules required).
  • Page 8 MONITOR ART 4 LITE /G2+ Continued from previous page. SETTINGS MENU Selecting the melody and call volume: Press the button below icon to access the settings screen. In order to identify the origin of the calls when you are not in front of the monitor, select different melodies and the desired call volume.
  • Page 9 MONITOR ART 4 LITE /G2+ Continued from previous page. SETTINGS MENU To enable the automatic door opening (after 3 seconds of receiving a call from the door panel), go to the option with icon by pressing the button below corresponding icon and select the option by pressing the button below icon Press the button below icon...
  • Page 10 MONITOR ART 4 LITE /G2+ Continued from previous page. SETTINGS MENU Press the button below icon to return to the main menu If the ' automatic door opening ' mode is enable (see pages 8 to 9) in the top left of the screen the icon will be displayed in the main menu...

  • Page 11: Door Panel Call Screen

    MONITOR ART 4 LITE /G2+ DOOR PANEL CALL SCREEN This screen is displayed when receiving a call or pressing the button below icon of the main menu. During a call, icon displayed on the screen will blink green (during the call process). In the top right of the screen, the source of the image is displayed.

  • Page 12: Communication Screen

    MONITOR ART 4 LITE /G2+ COMMUNICATION SCREEN This screen is displayed during a communication process. In the top right of the screen, the source of the image is displayed. Press the button below icon to " staircase light activation (SAR-G2 "...

  • Page 13: Image And Communication Settings

    MONITOR ART 4 LITE /G2+ IMAGE AND COMMUNICATION SETTINGS (Screen A) (Screen B) During a call process or during a communication process , press the button below icon for 3 seconds to access the image and monitor in call/ communication volume settings menu. Screen A Screen B Call process screen...
  • Page 14 MONITOR ART 4 LITE /G2+ Continued from previous page. IMAGE AND COMMUNICATION SETTINGS The following contrast control menu will then be displayed. Adjust to the desired level by pressing the buttons below icons . To access the colour control, press the button below icon .
  • Page 15 MONITOR ART 4 LITE /G2+ Continued from previous page. IMAGE AND COMMUNICATION SETTINGS (Screen A) The following call tone settings volume during a call process or communication settings volume during (Screen B) a communication process will then be displayed. Adjust to the desired level by pressing the buttons below icons .

  • Page 16: P Eriod Of Time For 'Do Not Disturb' Mod E Menu

    MONITOR ART 4 LITE /G2+ PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENÚ 'Do not disturb' mode settings: If the device is in standby (screen switched off), to access the main menu, press any of the buttons of the monitor. Then press the button below icon to access the settings screen.
  • Page 17 MONITOR ART 4 LITE /G2+ Continued from previous page. PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENÚ Time period setting screen Option selection screen Press the button below icon to return to the main menu If the 'Do not disturb' mode is enable (see pages 16 to 17) will be shown the icon in the main menu and the m onitor status LED...

  • Page 18: Intercom Menu

    MONITOR ART 4 LITE /G2+ INTERCOM MENU Access the intercom menu as described on p. . From this menu, you can contact another monitor(s) in your apartment (internal intercom) or other apartments (external intercom). For external intercom, the monitor(s) of the apartment that makes the call and the monitor(s) of the apartment that receives the call must have the intercom function enabled (see p age 19...
  • Page 19 MONITOR ART 4 LITE /G2+ Continued from previous page. INTERCOM MENU For external intercom, the monitor(s) of the apartment that makes the call and the monitor(s) of the apartment that receives the call must have the intercom function enabled: To enable/disable the intercom function between apartments, go to the option with icon by pressing the buttons below corresponding icons .
  • Page 20 MONITOR ART 4 LITE /G2+ Continued from previous page. INTERCOM MENU Press the button below icon to select the apartment code field to be modified, then press the buttons below icons to modify with the apartment code to be called and press the button below icon make the call.

  • Page 21: Special Codes

    MONITOR ART 4 LITE /G2+ SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu (p.
  • Page 22 MONITOR ART 4 LITE /G2+ Continued from previous page. SPECIAL CODES Video sources available on a monitor (configure only on the master monitor). Visible Not visible Factory setting Door panel 1 0111 0110 0111 Door panel 2 0121 0120 0120 Door panel 3 0131 0130...
  • Page 23 MONITOR ART 4 LITE /G2+ Continued from previous page. SPECIAL CODES Configuration of the remote activation button Relay1 (Door panel ). (Configure only on the master monitor). Factory setting Delay From 1400 (0,5s) 1419 (10s) 1403 (2s) Configuration of the remote activation button Relay2 (Door panel ).

  • Page 24: Cleaning The Monitor

    MONITOR ART 4 LITE /G2+ CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp lint-free cloth with water. - Always wipe the monitor in the same direction, from top to bottom. - After cleaning the monitor, remove any moisture with a soft dry lint-free cloth.
  • Page 25 MONITOR ART 4 LITE /G2+ NOT S...

  • Page 26: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.

This manual is also suitable for:

Art 4h lite /g2+Art 4/g2 plusArt 4h/g2 plus
