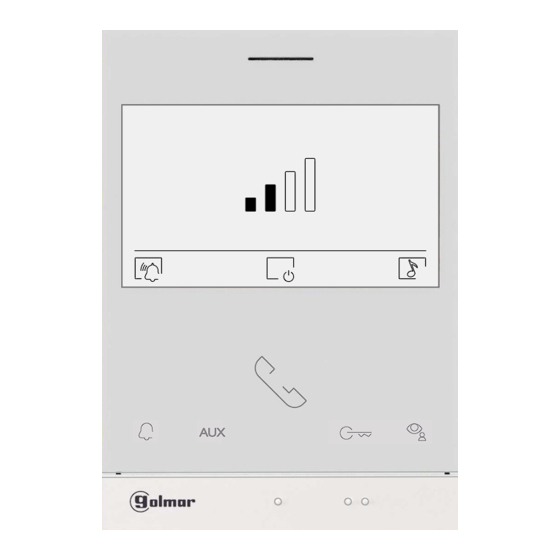

golmar Art 4 XLITE/G2+ User Manual

Monitor hands-free 2-wire installation
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TECHNOLOGY
Art 4
X
LITE
/G2+
m
onitor
Art 4
B
XLITE
/G2+
m
onitor
Hands-free
2-wire installation
TART
4 LITE/
X
G2+ E
N
REV.0 24
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Art 4 XLITE/G2+ and is the answer not in the manual?

Questions and answers

Related Manuals for golmar Art 4 XLITE/G2+

Summary of Contents for golmar Art 4 XLITE/G2+

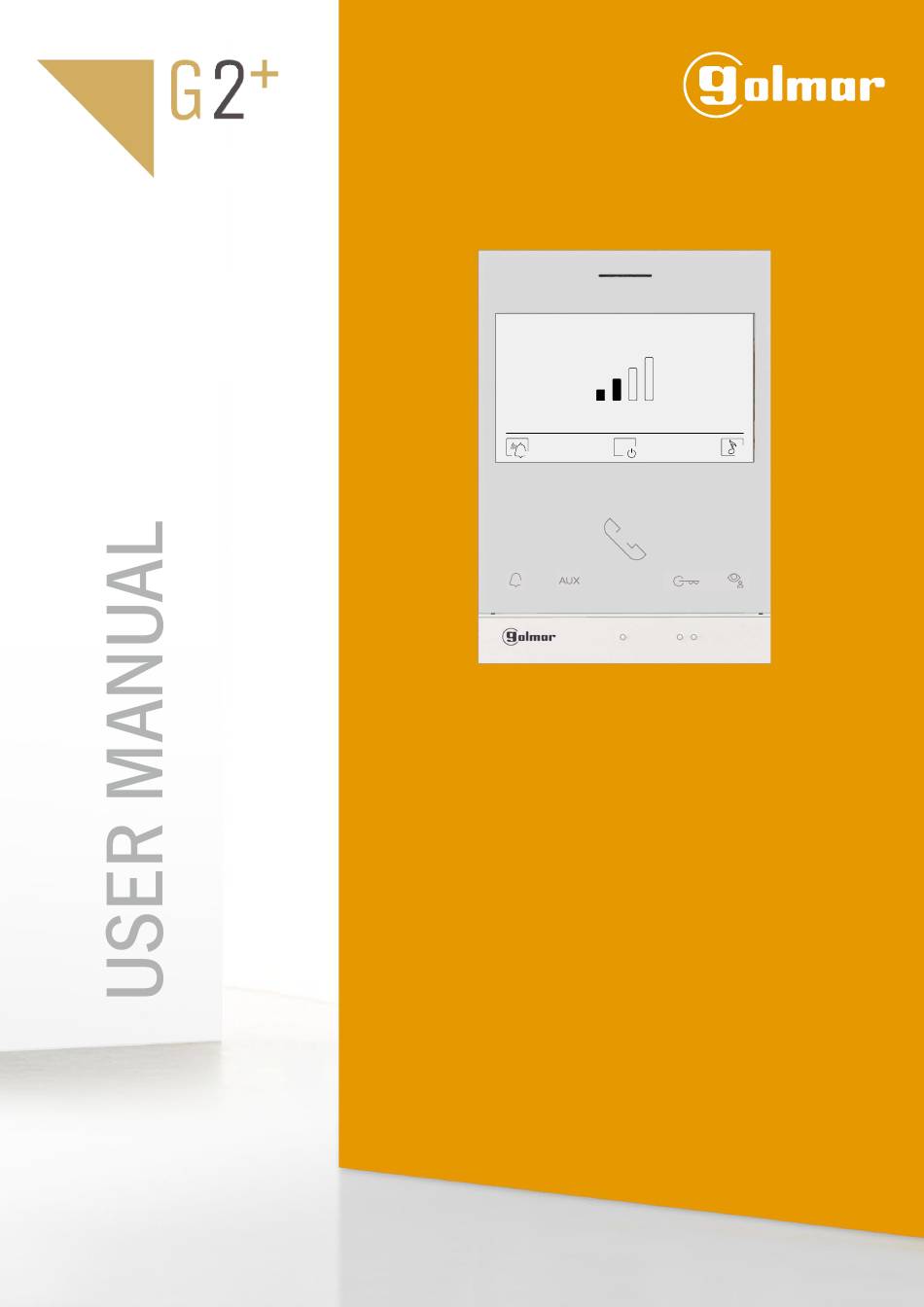

  • Page 1 TECHNOLOGY Art 4 LITE /G2+ onitor Art 4 XLITE /G2+ onitor Hands-free 2-wire installation TART 4 LITE/ G2+ E REV.0 24...

  • Page 2: Table Of Contents

    KIT: S5110 ART XLITE) If you have the “S5110 ART LITE” villa kit with soul door panel, download “TS5110 ART LITE (cód. 50122995 )” user manual from the next QR or in the link Golmar web: h ps://www.golmar.es/productos/s5110-art-4-xlite TS5110 ART LITE MANUAL...

  • Page 3: Set-Up Warnings

    - Do not place in humid, dusty or smoky locations, or near sources of heat. - Before connecting the device to the mains, check connections between the door panel, power supply, distributors monitors & RAP-GTWIN/HF se the Golmar cable (2x1mm²). - Always follow the instructions contained in this manual. CARACTERÍSTICAS - Hands- free monitor.

  • Page 4: Description

    Above these raised dots is the 'Door opening' button. G. Configuration switches. One press starts the auto-on function on door panel 1. Installation terminals Golmar Use. One press activates "staircase light" (requires SAR-G2+ and J. Wall mounting connector fixing (x4). SAR-12/24).

  • Page 5: Installation

    ART 4 XLITE/G2+ MONITOR INSTALLATION Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2. If you are going to use an embedding box to pass the wiring through, make sure that it is in line with the holes corresponding to the box model chosen and fix the connector.

  • Page 6: Function Buttons, Access And Selection Of Menu Functions

    ART 4 XLITE/G2+ MONITOR FUNCTION BUTTONS, ACCESS AND SELECTION OF MENU FUNCTIONS Monitor in standby Description of the buttons on the front of the monitor, when the equipment is in standby (screen off), Press the push button to access the settings menu "Select melody", "call volume" and "Do not disturb": If the monitor is in "Do not disturb"...

  • Page 7: Settings Menu

    ART 4 XLITE/G2+ MONITOR SETTINGS MENU With the monitor in standby mode (screen off), press the push button to access the menu screen for "Select melody", "Call tone volume", "Do not disturb" mode and "Tone duration 45 seconds". Monitor in standby Settings menu Adjust call volume: Press the push button below the icon...
  • Page 8 ART 4 XLITE/G2+ MONITOR Continued from previous page. SETTINGS MENU Select "Do not disturb" mode: Press the push-button below the icon until you get to the maximum call tone volume setting, then press the push-button again selecting the "Do not disturb" mode, the display will show the following icon - The led of the push button will blink white with the monitor in standby mode if the "Do not disturb"...
  • Page 9 ART 4 XLITE/G2+ MONITOR Continued from previous page. SETTINGS MENU In order to identify the origin of the calls when you are not in front of the monitor, select different melodies and activate/deactivate the duration of the ringing tones 45 seconds. Place the cursor on the option to be modified by pressing the push-buttons below the corresponding icons, then press the push-buttons below the corresponding icons...

  • Page 10: Door Panel Call Screen

    ART 4 XLITE/G2+ MONITOR DOOR PANEL CALL SCREEN This screen is shown when receiving a call or pressing the push button on the monitor in standby. In a call the push buttons with function will be illuminated in white and the push button will blink in white.

  • Page 11: Communication Screen

    ART 4 XLITE/G2+ MONITOR COMMUNICATION SCREEN This display is shown during a communication process. During communication, the function buttons will be illuminated in white. The communication has a time of 90 seconds. Monitor volume settings. Press the push button to change the source of the image, if the system has more than one door panel or has an external camera connected and the display has been activated (programmable by the installer, see pages 21-25).

  • Page 12: Installer Settings Menu

    ART 4 XLITE/G2+ MONITOR INSTALLER SETTINGS MENU With the monitor in standby (screen off), 5 quick presses on the push button to access the installer settings menu screen: "Master or slave", "Special codes", "Defaults" and " Image settings". Monitor in standby Installer settings menu 5 quick presses.
  • Page 13 ART 4 XLITE/G2+ MONITOR Continued from previous page. INSTALLER SETTINGS MENU QR code screen: Press the push button below the icon for 3 seconds, it will display a screen with a QR code that allows you to download the updated manual to your mobile or tablet, you need to have installed an App for QR reader.
  • Page 14 ART 4 XLITE/G2+ MONITOR Continued from previous page. INSTALLER SETTINGS MENU Then press the push button below the icon to execute this function, if you do not want to reset the monitor to default settings, press the push button below the icon to return to the installer settings menu.
  • Page 15 ART 4 XLITE/G2+ MONITOR INSTALLER SETTINGS MENU Adjust to the desired level by pressing the push buttons below the icons . To access the colour adjustment press the push button below the icon . To exit the image adjustment screen, press the push button below the icon Brightness adjustment screen Then, colour adjustment screen will be displayed, modify to the desired level by pressing the push buttons below the icons.
  • Page 16 ART 4 XLITE/G2+ MONITOR Continued from previous page. INSTALLER SETTINGS MENU Then, the contrast adjustment screen will be displayed, change to the desired level by pressing the push buttons below icons. To return to the brightness adjustment (carousel mode) press the push button below the icon .

  • Page 17: Intercom Menu In The Apartment And Call To The Guard Unit (If Installed)

    ART 4 XLITE/G2+ MONITOR Continued from previous page. INTERCOM MENU (IN THE APARTMENT) With the monitor in standby (screen off), press the push button to access the internal intercom menu screen (in the same apartment). From this menu you will be able to contact between two points in the same apartment.
  • Page 18 ART 4 XLITE/G2+ MONITOR Continued from previous page. INTERCOM MENU (IN THE APARTMENT) The communication has a duration of 90 seconds or until the push button is pressed. Monitor in communication Monitor ends communication 90" The monitor that made the intercom will return to the intercom menu, the monitor will return to standby after 20 seconds of no activity or press the push button located below the icon to exit the menu with the monitor in standby...
  • Page 19 ART 4 XLITE/G2+ MONITOR Continued from previous page. INTERCOM MENU (CALL TO GUARD UNIT) With the monitor in standby (screen off), press the push button to access the intercom menu screen. Important: With a guard unit installed, the following guard call icon will be displayed in the intercom menu.
  • Page 20 ART 4 XLITE/G2+ MONITOR Continued from previous page. INTERCOM MENU (CALL TO GUARD UNIT) When the guard establishes communication, the communication will last for 90 seconds or until the push button the monitor is pressed or the guard ends the communication. Monitor in communication Monitor ends communication 90"...
  • Page 21 ART 4 XLITE/G2+ MONITOR Continued from previous page. SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer settings menu must be accessed from the monitor. With the monitor in standby (screen off), 5 quick presses on the push button to access the installer settings menu screen.
  • Page 22 ART 4 XLITE/G2+ MONITOR Continued from previous page. SPECIAL CODES Then, press the button below icon to select the field to be modified and press the buttons below icons enter the desired code. Once the code has been entered, press the button below icon to validate it.
  • Page 23 ART 4 XLITE/G2+ MONITOR Continued from previous page. SPECIAL CODES Video sources available on a monitor (configure only on the master monitor). Visible Not isible Factory setting Door panel 1 0111 0110 0111 Door panel 2 0121 0120 0120 Door panel 3 0131 0130 0130...
  • Page 24 ART 4 XLITE/G2+ MONITOR Continued from previous page. SPECIAL CODES Configuration of the remote activation button Relay1 (Door panel ). (Configure only on the master monitor). Factory setting Delay From 1400 (0,5s) 1419 (10s)1403 (2s) Configuration of the remote activation button Relay2 (Door panel ).

  • Page 25: Special Codes

    ART 4 XLITE/G2+ MONITOR Continued from previous page. SPECIAL CODES Eneble/ disable the push button function to activate/ deactivate the lock release 2 in all monitors (building). (Configure only on the master monitor) during a call or communication process. Door panel 1: Enable Disable Factory setting...

  • Page 26: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.

This manual is also suitable for:

Art 4b xlite/g2+
