Item #1001 357 397
Model #BPT12-13E
USE AND CARE GUIDE
READ AND SAVE THESE INSTRUCTIONS

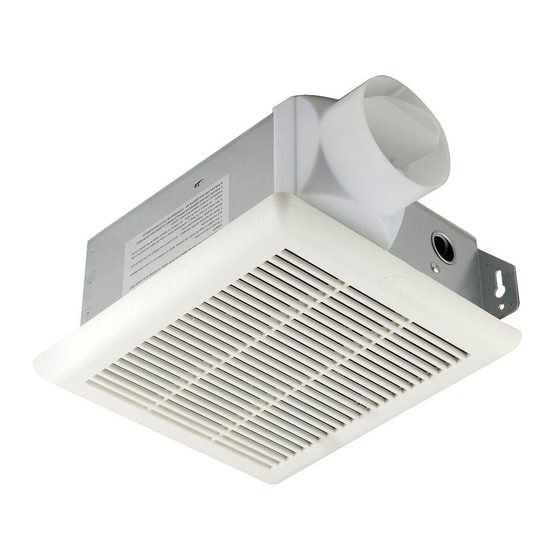

50 CFM CEILING BATHROOM EXHAUST FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this exhaust fan. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY BPT12-13E
Summary of Contents for HAMPTON BAY BPT12-13E
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this exhaust fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement...
-
Page 2: Table Of Contents
Table of Contents Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installation - New Construction . -
Page 3: Warranty
Warranty LIMITED LIFETIME WARRANTY WHAT IS COVERED If this product fails due to a defect in materials or workmanship at any time during the first THREE years of ownership, the manufacturer will replace it free of charge, postage-paid at their option. This warranty does not cover products that have been abused, altered, damaged, misused, cut or worn. This warranty does not cover use in commercial applications. -
Page 4: Pre-Installation
Pre-Installation WIRING DIAGRAMS FA N BLACK (LIVE) WHITE (NEUTRAL) GREEN (GROUND) QUICK CONNECTOR INSTRUCTIONS To be sold only with installation instructions. □ Strip wires 3/8 in. - 1/2 in. WARNING: Wiring must comply with all applicable electrical □ Grip the wire firmly and push the stripped end of the wire codes. -
Page 5: Tools Required
Pre-Installation (continued) TOOLS REQUIRED Claw Philips Flat Utility hammer screwdriver screwdriver knife Safety Power Duct Drill bits glasses drill tape PACKAGE CONTENTS Part Description Quantity Fan housing Grille Duct connector Long wood screws (M4 x 30 mm) HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance. -
Page 6: Installation - New Construction
Installation - New Construction CAUTION: Make sure power is switched off at service panel before starting installation. NOTE: Ceiling mount only. Attaching the duct connector Removing the wiring box housing □ Attach duct connector (C) to the fan housing (A) as shown □... - Page 7 Installation - New Construction (continued) Connecting the house and fan wires Installing the duct □ Pull the wire through the hole and into the junction box (not □ Install a circular 3 in. duct (not included) and secure it with included).
-
Page 8: Installation - Existing Construction
Installation - Existing Construction CAUTION: Make sure power is switched off at service panel before starting installation. Removing the existing fan Measuring the ceiling opening □ Remove the old fan from the ceiling. □ Measure the opening to assure it is large enough to accommodate the new fan body (A) (7.60 in. - Page 9 Installation - Existing Construction (continued) Removing the fan motor assembly Removing the wiring box housing □ Remove the three screws (1) that hold the fan motor □ Remove the wiring box cover from the fan housing with assembly in place. Remove the fan motor assembly from a Phillips head screwdriver (not included).
- Page 10 Installation - Existing Construction (continued) Mounting the fan housing to the Inserting the fan housing joist □ Insert the fan housing through the existing hole in the □ Mount the fan housing to the joist using three long wood ceiling. The fan housing should be level and perpendicular screws (D) where indicated by arrows inside the fan to the joist or stud.
-
Page 11: Ventilation Fan Operation
Ventilation Fan Operation Turning the fan on Turning the fan off □ Move the wall switch to the ON □ Move the wall switch to the OFF position to turn the fan on. position to turn the fan off. Care and Maintenance WARNING: Disconnect power supply before servicing. - Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use.
