Care Instructions Concord Protector - CONCORD TRANSFORMER XT-PRO Manual

Run the lap and diagonal belt from the CONCORD PROTECTOR to the lock and close
the seat belt as with an adult. (An audible click will signal proper locking.)

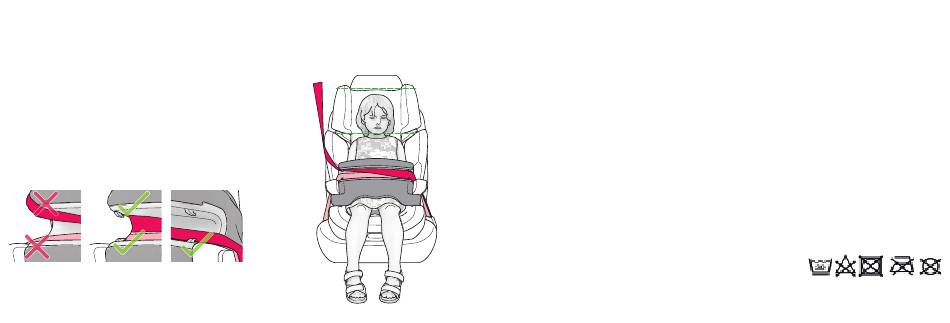

Now position the seat belts correctly.
Run the lap and diagonal seat belts through the harness
guide (P2) on both sides. Hook the seat belts into the
attachment hooks (P1).
The diagonal belt will run along the front edge of the
side protector, and the lap belt over the arm rests of the
CONCORD TRANSFORMER.
The seat belt must not be laid out in any other way.
44
CAUTION!
• The seat belts must be positioned securely behind the attachment hooks (P1)!
• You must always use the size adjustment on the CONCORD TRANSFORMER to
adapt the seat to the size of the child, when using the CONCORD PROTECTOR!
• Tighten first the lap belt and then the diagonal belt.
• Ensure that the seat belts are snug and not twisted.

_ CARE INSTRUCTIONS CONCORD PROTECTOR

The cover can be removed for washing.
Make sure to leave the cover to dry completely, before reattaching it!
When attaching the cover on the CONCORD PROTECTOR, pull it over the top of the
unit and tuck the surrounding groove at the harness guide (P2).
• The cover material colour may run slightly
when wet, in particular during washing.
• Do not use solvents on the cover!
45
