Jackson Systems Wireless Comfort WCZ-600-T User Manual

Wireless
COMF RT
Made in the USA
Wireless zone control
thermostat

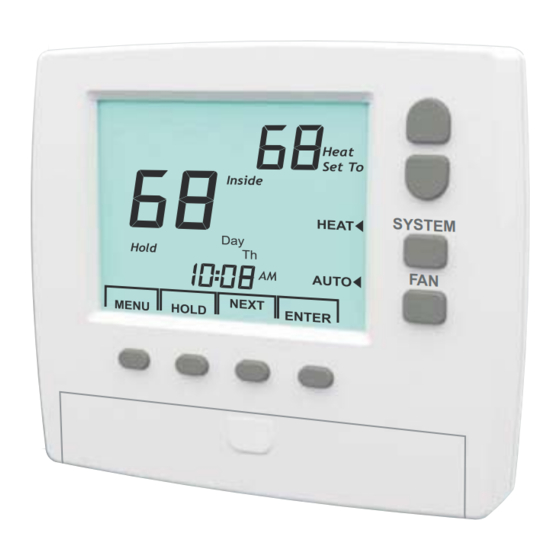

The WCZ-600-T wireless thermostat is one of
up to six thermostats that has been installed
as part of the WCZ-600 Wireless Comfort™
zone control system. Each thermostat
communicates with the WCZ-600 zone
control panel which controls the heating,
cooling and ventilation system while directing
the right amount of conditioned air into each
zone through wireless communications with
zone dampers that open and close to
maintain the desired temperature setting in
each zone. Each WCZ-600-T thermostat
allows you to set separate separate
temperatures for heating and cooling for four
time periods per day (morning, daytime,
evening and night). Or, you can operate each
thermostat without using the schedule feature
(Permanent Hold Mode).
Energy Savings
The schedule feature can save energy by
reducing heating and cooling when a zone is
not being occupied.
Indicates Morn, Day, Eve
or Night schedule
Space temperature
Indicates the Schedule, Hold or
Permanent Hold mode
Menu key used to set time of
day, daily schedule, calibrate
temperature sensor and
display schedule.
Hold key used to switch
between Schedule and
Permanent H operation
Next key used when setting
time of day and schedules
TM
Temperature Setting
Heat
Set T o
Inside
AUTO
Day
Schedule
Mo
AM
NEXT
MENU HOLD ENTER
User Manual
Model WCZ-600-T
SY ST EM
FA N
Up and Down keys used when
adjusting temperature, time of day,
day of the week, program start times
and other options
SYSTEM
SYSTEM key selects Heat, Cool,
Auto Heat/Cool, Off and
FAN
Emergency Heating for a
heat pump application
Fan key selects Auto or
Cont fan operation
Battery compartment, 2 AA batteries.
Enter key used when setting
time of day and schedules
