Skipper DL1-Multi Installation Manual

Single axis doppler speed log system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

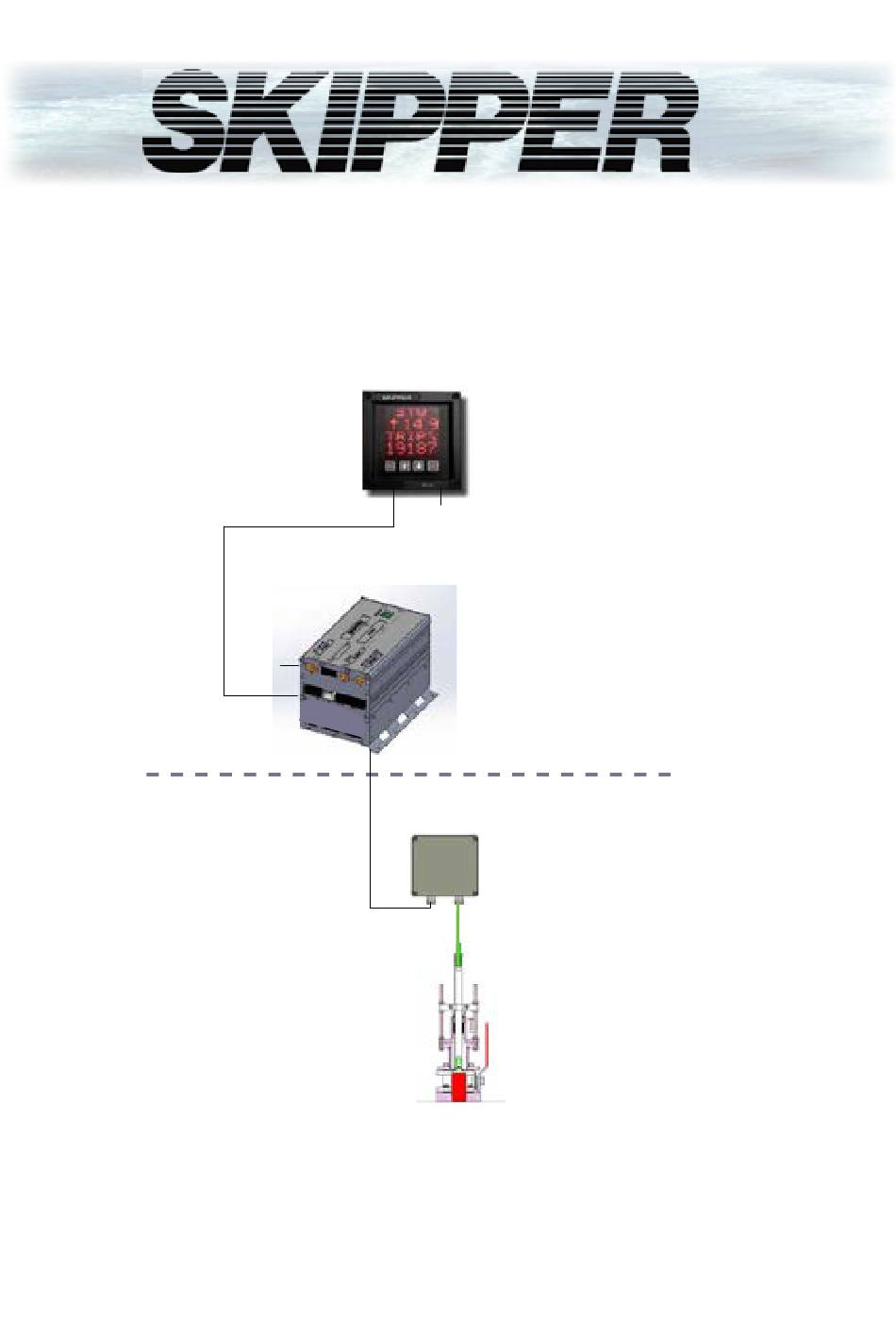

Single Axis Doppler Speed Log System
BRIDGE
FORE PEAK
SKIPPER Electronics AS
Enebakkveien 150
P. O. Box 151, Manglerud
0612 Oslo, Norway
www.skipper.no
DL1-Multi
Installation Manual
CD402CU

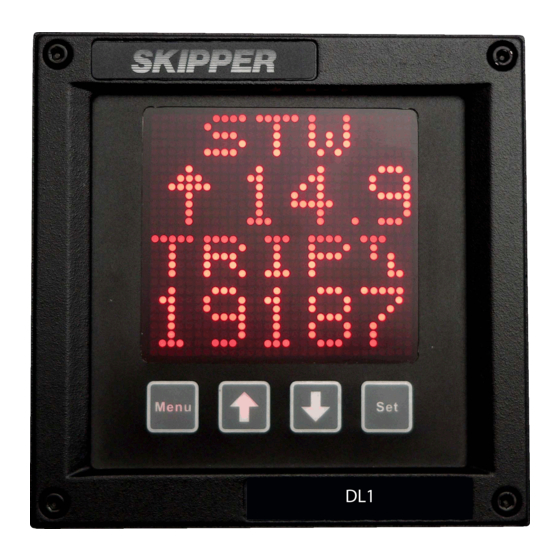

Operator Unit for DL1
LAN switch (option)
JB70D1-SA
Electronic Unit
115-230VAC
/ 24VDC
DL1SG-SA
DL1 sensor
w/40m cable
in Sea valve
SB-60-SA
Telephone:
E-mail:
Co. reg. no:
24VDC
JB12
Junction box
+47 23 30 22 70
support@skipper.no
NO-965378847-MVA
Document no: DM-M004-SA
Revision: 1425A
For software ver 1.61
Date: 2021-12-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL1-Multi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skipper DL1-Multi

Summary of Contents for Skipper DL1-Multi

  • Page 1 BRIDGE FORE PEAK JB12 Junction box DL1SG-SA DL1 sensor w/40m cable in Sea valve SB-60-SA SKIPPER Electronics AS Document no: DM-M004-SA Enebakkveien 150 Telephone: +47 23 30 22 70 Revision: 1425A P. O. Box 151, Manglerud E-mail: support@skipper.no For software ver 1.61 0612 Oslo, Norway Co.
  • Page 2 Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS COMMUNICATING WITH US DL1-MULTI SINGLE AXIS DOPPLER SPEED LOG SYSTEM If you need more information, support or other assistance from us, do not hesitate to contact us:...

  • Page 3: Table Of Contents

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS CONTENTS Terminology INTRODUCTION ........................6 The DL1-Multi Doppler speed log system ......................6 Terms used in this manual Overview DL1 ..............................7 Units Connectors supplied with JB70D1 ........................

  • Page 4: Introduction

    Log sysTeM The DL1-Multi single axis Doppler speed log system is a vessel mounted system that measures speed in one axis (longitudinal) through the water. The system fulfils all class and type regulations based on MED B (wheelmark).

  • Page 5: Connectors Supplied With Jb70D1

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS JB70D1 onnecTors suppLieD wiTh TeMs suppLieD LocaLLy CD402CU Operator Unit for DL1 ZZN-01126 Relief Housing, 3 pole snap-on. WAGO: 232-633...

  • Page 6: Chapter 1: Hardware Mounting

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS CHAPTER 1: HARDWARE MOUNTING A sea valve is highly recommended over a tank installation, as it is possible to service the sensor (clean or replace) without docking the vessel.

  • Page 7: Sensor Orientation

    This document may also be downloaded from the SKIPPER web page A copy of the document with pictures should be sent to warranty@skipper.no Orientation in Sea Valve The sensor is typically mounted after the vessel is in water. Care must be taken that the ahead mark on the bottom installation is correct (seen from the inside by the flat edge being on port side).
  • Page 8 Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS (JB70D1-XX) LaceMenT of The eLecTronic uniT (cD402cu-XX) LaceMenT of The conTroL uniT All parts of the system are connected to the electronic unit.

  • Page 9: Chapter 2: Wiring

    If yard cables are too thick or heavy to clamp, anchor the outer insulation nearby, and feed the inner cables to the connector. If the connector is missing, lost or broken, replacements are available from Skipper (PN ZZN-01121) or Wago (part no. 713-1112/037-000)

  • Page 10: The Junction Box Jb12, And Cable Extensions

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS JB12, The JuncTion BoX anD caBLe eXTensions cD402 c onTroL uniT To LecTronic uniT The CD402XX-SC is powered by local 24VDC on pin 1 and 2 on Wago connector.

  • Page 11: Connecting Dimmer Units To Cd402

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS iec61162-1 nMea cD402 connecTion onnecTing DiMMer uniTs To The JB70D1-XX system has 1 NMEA isolated input and 4 output ports driven separately from a single com port, each capable of delivering 20mA.

  • Page 12: Auxiliary Input And Outputs

    010203 J300 naLog ouTpuT The DL1-Multi has outputs for analog speed on connector CN2. I OUT for 4-20mA on CN2 pin 11 V OUT for 0-10V on CN2 pin 09. These use a common ground and provide voltage. The current output will be max 24V.

  • Page 13: Chapter 3: Setup Lan Communication

    CHAPTER 3: SETUP LAN COMMUNICATION Press “Find multi systems” The software will search for SKIPPER products and present a list with settings. A table wth all the detected Both the Control unit and the Electronic unit have unique IP addresses, and system identification system will be generated.

  • Page 14: Chapter 4: Web Setup Of Speedlog

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS CHAPTER 4: WEB SETUP OF SPEEDLOG JB70DL cD402cu coMMunicaTion wiTh In adress line type IP adress of JB70DL unit. Select “system configuration”.

  • Page 15: Jb70D1 Nmea Setup

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS JB70D1 auX seTup JB70D1 nMea seTup AUX setup is found under “System configuration” NMEA setup is found under “System configuration”...

  • Page 16: Cd402 Control Unit Self Test

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS unning in DeMo MoDe Once all parts are installed, the system can be made to run simulations of real situations. These are found in the demo setup.

  • Page 17: Chapter 5: Sea Test And Calibration

    Set distance of first leg. The leg should take at least 5 minutes to sail (distance can be shorter when sailin- slowly). Example: A calibration point at 5 knots the distance should be 1nauutical mile. If necessary, the procedure should be repeated at different speeds. SKIPPER recommend that calibration is performed at a low speed and a high speed.

  • Page 18: Chapter 6: Service Sw Diagnostics

    The system has 3 main elements; control unit, electronic unit and sensor. These elements may be upgraded using the SKIPPER service software, available for download from www.skipper.no. In the software select the item to be tested/upgraded and follow the instructions. New software updates can be downloaded from the website or via this software.

  • Page 19: Chapter 7: Trouble Shooting

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS CHAPTER 7: TROUBLE SHOOTING Input power OK cD402 T onTroL rouBLe shooTing Both LEDs lit when 24VDC or 115/220VAC detected.

  • Page 20: Chapter 8: Specifications

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS CHAPTER 8: SPECIFICATIONS iec61162-2 high speeD nMea coMMunicaTion This standard requires a common signal ground between system requiring extra circuitry for isolation on the receiver side.

  • Page 21: Appendix 1: Misc Drawings

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS APPENDIX 1: MISC DRAWINGS Product Datasheet JB70D1-SA Electronic Unit for DL1-Multi Single Axis Doppler Speed Log Specifications Part number Description...
  • Page 22 Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS Page 42 of 48 Page 43 of 48 Date: 2021-12-10 Date: 20121-10-10...

  • Page 23: Jb70D1 Exploded View

    Electronics AS InMan DL1-Multi Single Axis Doppler Speed Log System InMan DL1-Multi Single Axis Doppler Speed Log System Electronics AS JB70D1 nMea cD402 JB70D1 eXpLoDeD view LTernaTive coMMunicaTion If the LAN port is required for output communication to other systems and a switch is not available, it is possible to connect the CD402CU via NMEA communications.

  • Page 24: Appendix 2: Optional Features

    APPENDIX 2: OPTIONAL FEATURES Warranty: • SKIPPER Electronics AS gives 12 months limited guarantee on all deliveries from SKIPPER Electronics AS, Norway. ingLe BeaM operaTion The DL1 Measures the STW by two acoustic beams. One pointing forward the other pointing aft.
  • Page 25 SKIPPER Electronics AS Telephone: +47 23 30 22 70 Enebakkveien 150 Telefax: +47 23 30 22 71 P. O. Box 151, Manglerud E-mail: support@skipper.no 0612 Oslo, Norway Co. reg. no: NO-965378847-MVA www.skipper.no...
