H3C S6820-32H Installation, Quick Start

H3C S6820-32H Switch Installation Quick Start-6W104
H3C S6820-32H交换机 快速安装指南-6W104

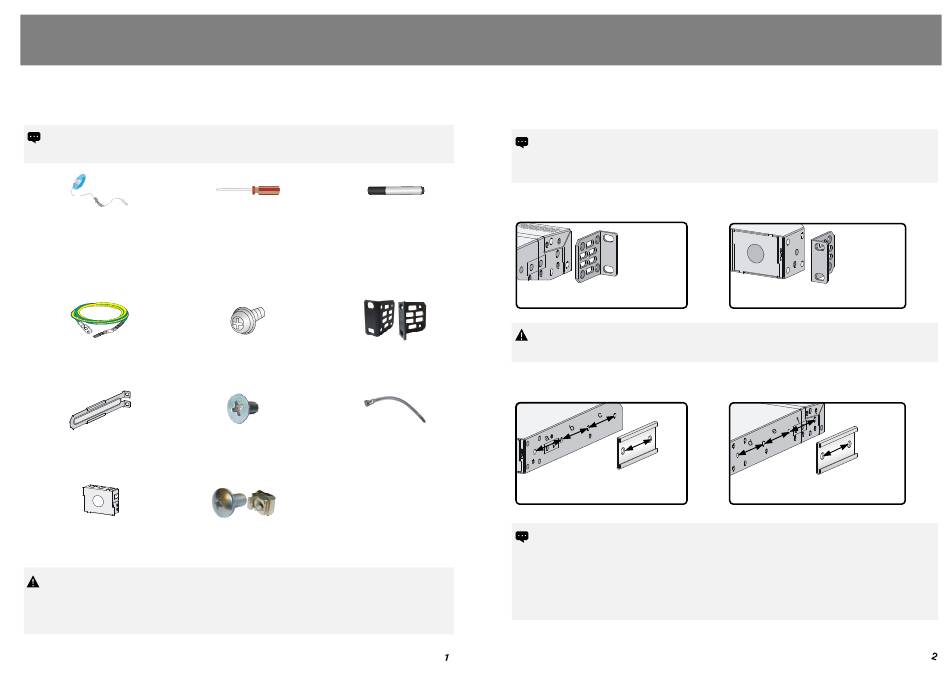

Tool list 工具参考
The installation tools are not provided with the switch. Prepare them yourself.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
ESD wrist strap
防静电腕带
Installation accessories 安装附件介绍
Grounding cable
接地线
Chassis rail and slide rail
滑道和导轨
M6 screw and cage nut (user supplied)
Power module filler panel
电源假面板
M6 螺钉和浮动螺母（用户自备）
Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and is
!
reliably grounded.
操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带已经良好
接地。
Phillips screwdriver Marker
十字螺丝刀 记号笔
Grounding screw Mounting brackets
接地螺钉 挂耳
M4 screw Removable cable tie
可拆卸式扎带
M4螺钉
Installation positions for accessories 附件安装位置介绍
Before mounting the switch in a 19-inch rack, choose the installation positions for
the slide rails, chassis rails, and mounting brackets.
将交换机安装到19英寸机柜时，可以根据需要调整附件在交换机上的安装位置。
Mounting bracket installation position (two options) 挂耳安装位（二选一）
Near the network port side
安装在靠近端口侧
The switch provides three holes for installing mounting brackets near the network port side.
!
端口侧的挂耳安装孔只有三个。
Chassis rail installation position (two options) 滑道导轨安装位（二选一）
a, b, or c near the power module side
靠近电源侧，可安装在a,b,c任意一处
The chassis provides multiple installation positions for chassis rails on its two sides.
Select an installation position for chassis rails based on the rack depth. When you rack-
mount the switch, make sure the slide rails reach out of the chassis rails to maintain the
chassis stability. 设备侧面板提供了多个滑道导轨安装位，用户可根据机柜的深度，调整
滑道导轨的安装位置；为保证设备安装后的稳定性，当滑道与滑道导轨安装完成后，请
确保滑道的头部露出滑道导轨。
Near the power module side
安装在靠近电源侧
d, e, or f near the network port side
靠近端口侧，可安装在d,e,f任意一处
