H3C S6820-56HF Installation, Quick Start

H3C S6820-56HF Switch Installation Quick Start-6PW103
H3C S6820-56HF交换机 快速安装指南-6PW103
Tool list 工具参考
The installation tools are not provided with the switch. Prepare them yourself.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
ESD wrist strap Phillips screwdriver
防静电腕带
Installation accessories 安装附件介绍
Grounding cable and Long chassis rail and short
grounding screw slide rail (optional)
接地线和接地螺钉 短滑道和长导轨（选配）
M4 screw Mounting brackets
挂耳
M4螺钉
Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and is reliably
!
grounded.
操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带已经良好接地。

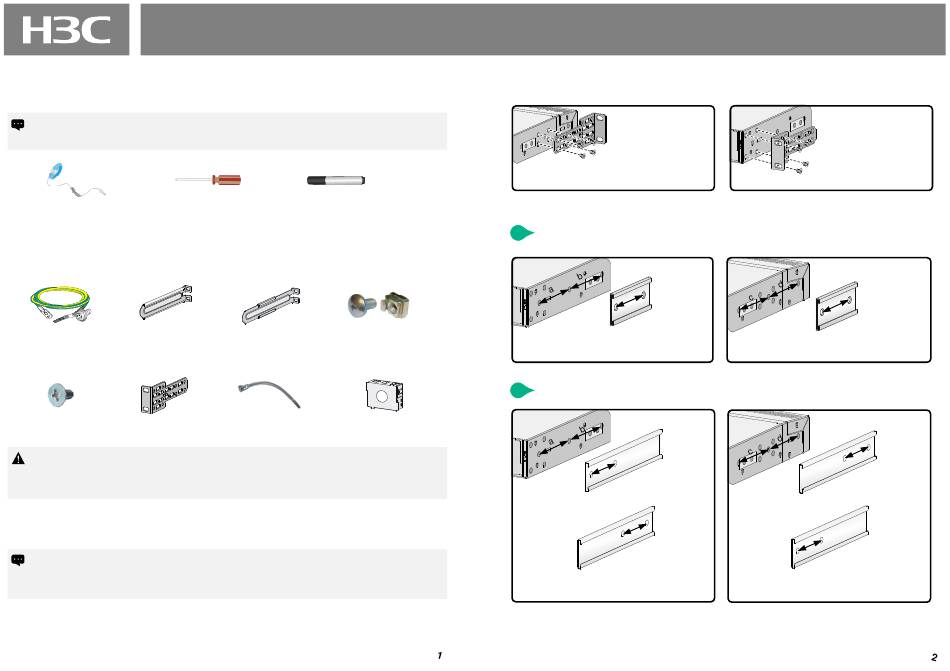

Installation positions for accessories 附件安装位置介绍
Before mounting the switch in a 19-inch rack, determine the installation positions for the mounting
brackets, chassis rails, and grounding cable.
将交换机安装到19英寸机柜时，可以根据需要调整附件在交换机上的安装位置。
Marker
十字螺丝刀 记号笔
Short chassis rail and M6 screw and cage nut
long slide rail (user supplied)
长滑道和短导轨 M6 螺钉和浮动螺母（用户自备）
Power module filler panel
Removable cable tie
电源假面板
可拆卸式扎带
Mounting bracket installation position (two options) 挂耳安装位（二选一）
Near the network port side 安装在靠近端口侧
Chassis rail installation position 滑道导轨安装位
Short chassis rail installation position (two options) 短导轨安装位（二选一）
1
a or b near the power module side
靠近电源侧，可安装在a,b任意一处
Long chassis rail installation position (four options ) 长导轨安装位（四选一）
2
正装（the rail not reaching
out of the chassis）
反装（the rail reaching out
of the chassis）
a or b near the power module side
靠近电源侧，可安装在a,b任意一处
BOM: 3101A0KF
Near the power module side 安装在靠近电源侧
c or d near the network port side
靠近端口侧，可安装在c,d任意一处
正装（the rail not reaching
out of the chassis）
反装（the rail reaching out
of the chassis）
c or d near the network port side
靠近端口侧，可安装在c,d任意一处
