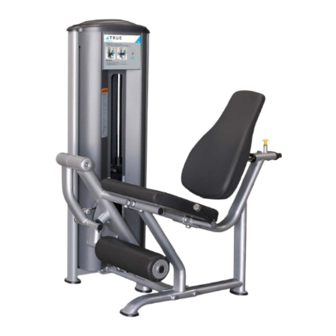

As a result, people all over the world are benefiting from the TRUE experience. Innovation across the full product line has made TRUE successful and is a trademark of the TRUE heritage. TRUE’s patented Heart...
ABLE ONTENTS ........................4 AFETY ................ENERAL ARE AND AINTENANCE ................... 8 IMENSIONS AND EIGHT ......................9 REPARATION .................... 10 ARTON ONTENTS .................... 11 ARTON ONTENTS & A NSTALLATION SSEMBLY 1: A ..........12 SSEMBLE THE RAME OMPONENTS 2: A ...........
9. If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
Page 5
3. Install this piece of equipment on a solid level surface that does not deviate more then 1/8” over a 10’ distance (or as defined and required by local building and architectural codes. 4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
Page 6
• Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components. 4. Replace any warning label at first sign of wear. Labels and the Facility Safety Sign may be obtained from TRUE free of charge.
Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE Fitness at (800) 883-8783 or service@truefitness.com.
Page 8
IMENSIONS AND EIGHT “I ” M ACHINE IMENSIONS Maximum user weight: 300 lbs. (136 KG) ACHINE EIGHT AND LOOR OADING EIGHT TACK ONFIGURATION ACHINE WEIGHT PPROXIMATE LOOR OADING 170 lbs. 377 LBS [171 KG] 64 LBS/FT [311 KG/M 250 lbs. 457 LBS [207 KG] 77 LBS/FT [376 KG/M...
REPARATION EQUIRED OOLS Ratchet Wrench and Sockets: 9/16” Wrenches: 9/16”, 3/4”. (or an adjustable crescent wrench). Rubber Mallet Allen wrenches: (included with the machine) Hardware Measurement Guide: BHCS - BUTTON HEAD CAP SCREW SHCS - SOCKET HEAD CAP SCREW FHCS - FLAT HEAD CAP SCREW HHCS - HEX HEAD CAP SCREW MEASURE BOLT FROM HERE...
ARTON ONTENTS QTY. ESCRIPTION FS-CAP-000X TOP CAP FS-GRD-100X GUIDE ROD FS-SHD-150X REAR SHROUD FS60-SHD-100X FRONT SHROUD FS64-UPR-000X UPRIGHT FRAME FS-BKT-000 GUIDE ROD BRACKET FS-WSB-000 WEIGHT STACK BASE FS-PAD-000X BACK PAD...
ARTON ONTENTS QTY. ESCRIPTION FS50-ARM-200X ANKLE ROLLER PAD, ASSY FS50-MFR-300X HANDLE ASSEMBLY FS50-PAD-100X SEAT PAD FS50-SFR-000X BACK PAD SEAT FRAME FS60-ARM-000X EXTENSION ARM HARDWARE BOX FS60-MFR-000X MAIN FRAME FS60-MFR-100X FRONT FRAME FS60-HWR-000X HARDWARE BOX FS60-CBL-000X CABLE FS-SBR-000X SELECTOR BAR B 900 PULLEY, 4-1/2”...
Page 12
C 754C FLAT WASHER, 3/8” C 766A LOCKNUT, 3/8”-16 C 955A BASE, PLASTIC CAP C 955S PLASTIC CAP, SILVER FS60-CBL-000X FS-60 CABLE FS60-MFR-000X MAIN FRAME FS0-MFR-100X FRONT FRAME FS64-UPR-000X UPRIGHT FRAME S-550 RUBBER FOOT NOTE: SOME ITEMS SHOWN MAY BE PRE-ASSEMBLED.
Page 13
1: A SSEMBLE THE RAME OMPONENTS 5, 7, 4, 2, 8 5, 7, 4, 1, 8 DETAIL A DETAIL B 5, 7, 3, 8 5, 7, 6, 8 DETAIL C...
Page 14
2: A SSEMBLE THE ADS AND ANDLES QTY. ESCRIPTION 1. Assemble the back pad to the seat C 445 SCREW, 3/8”-16 X 1” frame. C 451 SCREW, 3/8”-16 X 2-3/4” 2. Loosely assemble the handle C 455 SCREW, 3/8”-16 X 4” assembly to the main frame.
Page 15
2: A SSEMBLE THE ADS AND ANDLES 5, 8, 4, 2, 7 5, 8, 4, 2, 7 DETAIL A 4, 1 DETAIL B 5, 8, 3, 7 5, 8, 6, 7 5, 8, 4, 2, 7 DETAIL C...
3: A SSEMBLE THE 1. Install leg extension arm on frame and QTY. ESCRIPTION secure with axle end cap and screw. C 678 SCREW, 3/8”-16 X 1” BHCS FS50-ARM-200X ROLLER PAD, ASSEMBLY 2. Install roller pad assembly into leg FS60-ARM-000X LEG EXTENSION ARM extension arm and secure with collar.
4: A SSEMBLE THE EIGHT TACK 1. Install the weight stack base, rubber ESCRIPTION bumpers, washers, and guide rods. C 445 SCREW, 3/8”-16 X 1” HHCS C 749 LOCKWASHER 3/8” 2. Install 16 weight plates according to C 754C FLAT WASHER, 3/8” your order (10 or 15 lb.
Page 18
ABLE AND ULLEYS QTY. 1. Starting at the top plate, assemble ESCRIPTION the cable and selector pin as shown. FS60-CBL-000X FS-60 CABLE B 900 PULLEY, 4-1/2” DIA. Installing pulleys and hardware as C 448 SCREW, 3/8” X 1-3/4” HHCS you go.
Page 19
5: A SSEMBLE THE ABLE AND ULLEYS 4, 5 4, 6, 5, 7 4, 3 DETAIL A 4, 6, 5, 7 4, 6, 3, 7 DETAIL B 4, 6, 3, 7 4, 5 4, 6, 5, 7 DETAIL D 4, 3 DETAIL C...
6: I NSTALL THE RONT HROUD QTY. ESCRIPTION 1. Place the front shroud into position. C 445 SCREW, 3/8”-16 X 1” HHCS 2. Align the holes and assemble the C 749 LOCK WASHER hardware. C 754C FLAT WASHER FS60-SHD-100X FRONT SHROUD 3.
7: I NSTALL THE HROUD QTY. 1. Set the lower screws of the shroud into ESCRIPTION C 444 SCREW, 3/8”-16 X 3/4” HHCS the lower brackets on the upright frame. C 754C FLAT WASHER, 3/8” 2. Then align the holes for the brackets at C 766A LOCKNUT, 3/8”-16 the top of the shroud.
8: I NSTALL THE 1. Assemble the brackets to the top ITEM UMBER ESCRIPTION cap as shown. FS-BKT-OO1 BRACKET, TOP CAP 2. Assemble the top cap to the FS-CAP-000X TOP CAP upright frame. C 675D SCREW, BUTTON HEAD, 1/4 X 1/2 DETAIL A...
Page 23
9: I NSTALL THE EIGHT TACK ABEL 1. Select the appropriate weight stack label(s) according to your order. You can install pound labels, kilogram labels, or both. 2. If you ordered a 170 lb. weight stack, use labels: LBL-WSE-01170 (for pounds) LBL-WSM-01170 (for kilograms).
Page 24
ACHINE ABELS The following are the Warning labels required for this FS machine. If any of these labels are missing or become damaged, TRUE will replace them free of charge. Note: these labels are not to scale. WARNING WARNING SERIOUS INJURY CAN OCCUR...
B T A I N E R V I C E For warranty service, contact an Authorized TRUE Dealer or a TRUE Customer Service representative at 1-800-883-8783 or by e-mail at service@truefitness.com. Before you call, please have the following information ready.
(European) safety standards for stability (without floor anchors) when the machine is used for it’s intended purpose as designated by the manufacturer. However, TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
Hours of operation 8:30am - 5:00 pm CST workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
Page 28
(if anyone other than a TRUE authorized dealer/ technician initially assembles and installs the Product, this The FS-60 comes with one serial number on the base of the Limited Warranty will be void unless the written authorization machine. Please write down your serial number below and keep of TRUE is first obtained).
Page 29
If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
