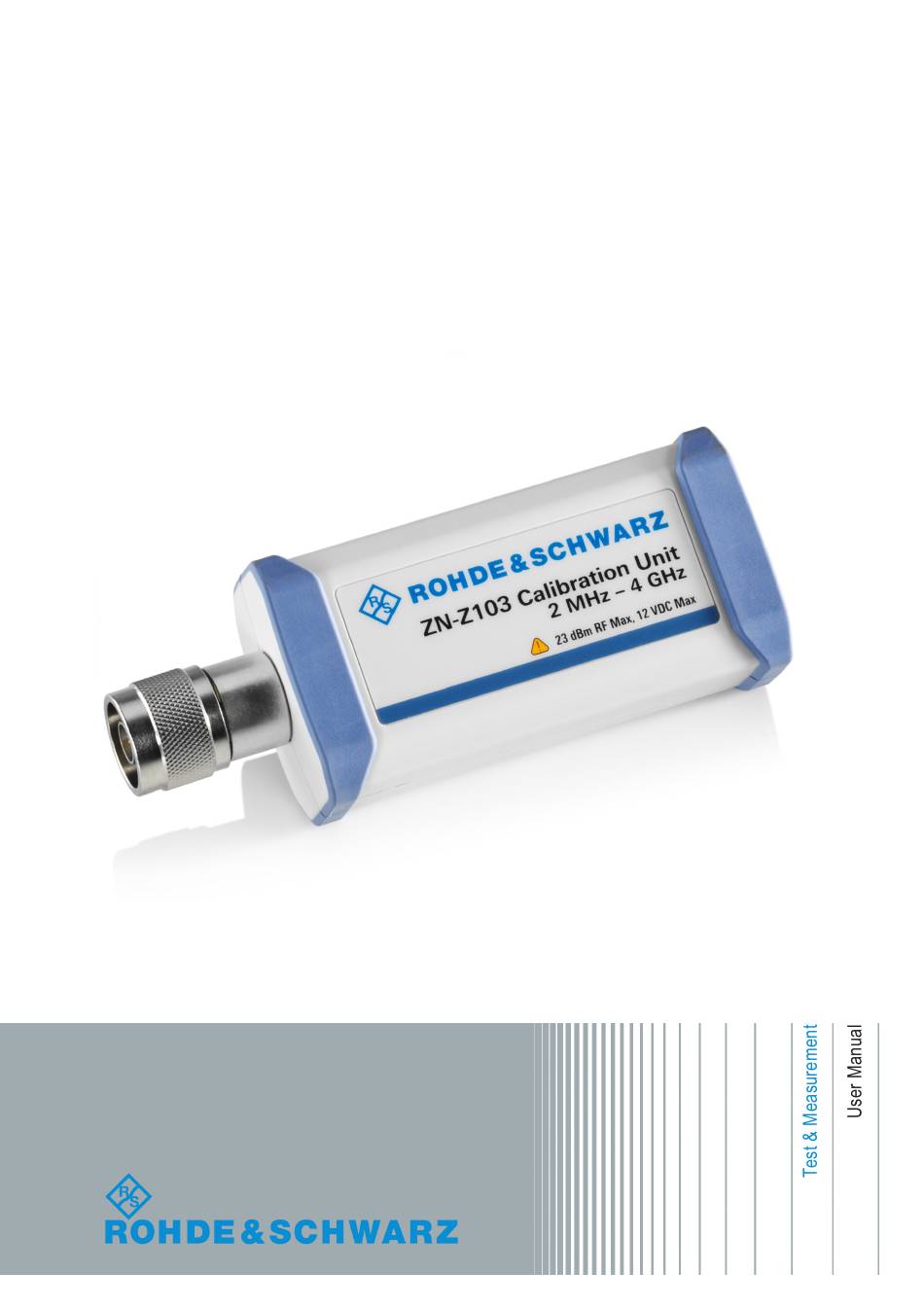

- Page 1 ® R&S ZN-Z103 Calibration Unit User Manual (=EFÚ2) 1321.2276.02 ─ 02...
- Page 2 ® This User Manual describes the one-port calibration unit R&S ZN-Z103, order no. 1321.1828.02 © 2017 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 164 Email: info@rohde-schwarz.com...

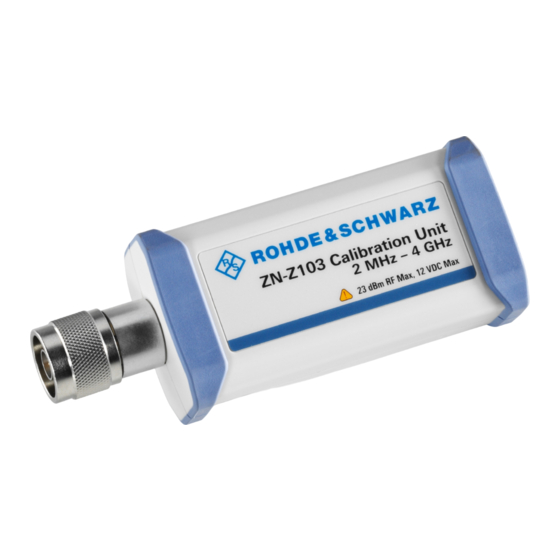

- Page 3 Introduction ® The calibration unit R&S ZN-Z103 is an integrated solution for automatic reflec- tion calibration of a single network analyzer port. The unit contains calibration standards that are electronically switched when a calibration is performed. The calibration kit data for the internal standards is stored in the calibration unit, so that the analyzer can calculate the error terms and apply the calibration without any further input.
- Page 4 ® Safety Instructions R&S ZN-Z103 Scope of this document This User Manual gives a brief introduction to the unit’s connection and use. For detailed information refer to the operating manual or help system of your network analyzer. Safety Instructions This calibration unit has been designed and tested in accordance with the EC Certificate of Conformity and has left the manufacturer’s plant in a condition fully...
- Page 5 ® Connecting the Calibration Unit R&S ZN-Z103 ● A single RF connector type N (m). USB Connection to the Analyzer Follow the steps below and the instructions given in the analyzer’s operating manual. 1. Switch on and start up your network analyzer.
- Page 6 ® Function of the Status LED R&S ZN-Z103 Excessive Input Power If you use an external power amplifier, make sure that the maximum RF input power of the calibration unit quoted in the data sheet is never excee- ded. Function of the Status LED The LED on top of the calibration unit informs about the actual status of the device.
- Page 7 ® Maintenance R&S ZN-Z103 3. Remove the test cable from the unit, connect your DUT instead and perform calibrated measurements. Accuracy Considerations To ensure an accurate calibration, please observe the following items: ● No adaptors must be inserted between the calibration unit and the test port.
