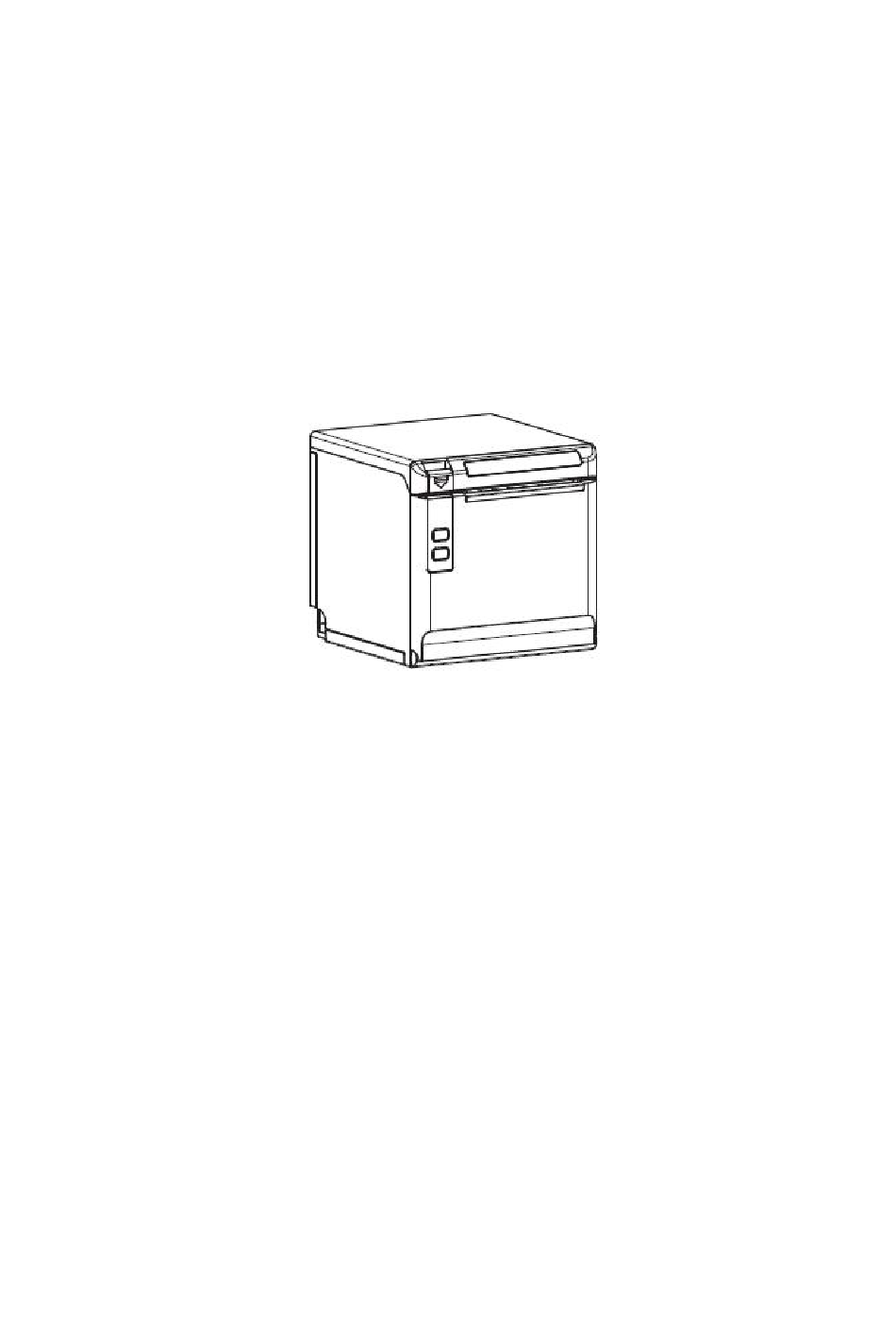

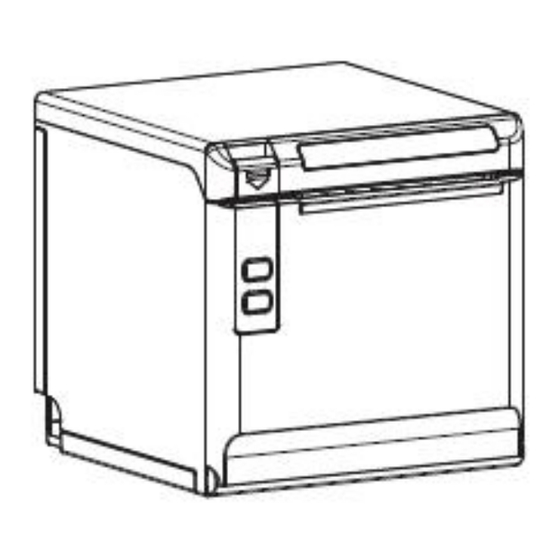

- Page 1 Desktop POS Printer POS80D User Manual...
- Page 2 POS80D User Manual REVISION RECORDS REV. DATE DESCRIPTION Drawn Checked Approved 2017.05.15 1. First edition Wu Zhenrong Yang Kaiqu Lin Yang 1. Update chapter 2 2. Delete the contents of Paper 2017.11.15 Installation (Upward Paper-out Yan Xiaomei Lin Yang Lin Yang Direction) 3.
-
Page 3: Table Of Contents
POS80D User Manual Content Statement............................... 1 Important Safety Instructions.........................2 1 OVERVIEW............................3 1.1 Introductions..........................3 1.2 The Main Features........................3 2 GETTING STARTED..........................4 2.1 Packing List..........................4 2.2 Appearance and Components....................5 3 SPECIFICATION.............................6 3.1 Printer Specification......................... 6 3.2 Printing Media Specification....................8 3.2.1 Continuous Thermal Paper Specification.............. -
Page 4: Statement
POS80D User Manual Statement Copyright This manual is printed in 2020. Version 1.4 . Warnings This must be complied with in order to avoid any damage to the human body and to the equipment. This is showing the important information and tips for the printer operating. -
Page 5: Important Safety Instructions
POS80D User Manual Important Safety Instructions 1. Safety Warning Warnings: The print head will become very hot during printing; avoid contact with the print head after printing has finished. Warnings: Do not touch the printer head and connector in case static damage the printer head. -
Page 6: Overview
POS80D User Manual 1 OVERVIEW 1.1 Introductions POS80D is a thermal receipt printer, featured by high print quality, high print speed, high stability, etc. It can be used in commercial POS system, food industry and occasions which need real-time field print receipts. -
Page 7: Getting Started
POS80D User Manual 2 GETTING STARTED 2.1 Packing List After receiving your printer, please check for possible shipping damage: 1) Inspect the outside of both the box and the printer for possible damage. 2) Check whether you have received the following accessories together with the printer, if there is any items missing, please contact your local dealer. -
Page 8: Appearance And Components
POS80D User Manual 2.2 Appearance and Components Front Rear Model 1: The printer without Bluetooth/Wi-Fi module Model 2: The printer with Bluetooth/Wi-Fi module Inside... -
Page 9: Specification
POS80D User Manual 3 SPECIFICATION 3.1 Printer Specification Table3-1 General Specification (1/2) Item Parameter Printing Method Direct thermal line printing Resolution 203DPI，8dots/mm Printing Width 72mm Printing Print Speed Max. 260mm/s Parameter Default: USB, Cash drawer, Interface Optional: Serial, Ethernet, Wi-Fi & Bluetooth... - Page 10 POS80D User Manual Table3-1 General Specification(Continued) (2/2) Item Parameter Input AC100V-240V Power Supply DC24V, 2.5A Output Paper type Thermal Paper Paper width Paper 0.056～0.13mm thickness Paper Roll paper Max. OD ф83mm diameter Easy-loading structure of forward open cover or upward open cover...
-
Page 11: Printing Media Specification
POS80D User Manual 3.2 Printing Media Specification 3.2.1 Continuous Thermal Paper Specification Paper Type : Specified Thermal Paper Paper Width Paper Outer Diameter : Max. 83 mm Paper Thickness : 0.056 ～ 0.13m Paper Type Manufacturer FD210, PD150R, PD160R OJI Paper CO.,LTD. -
Page 12: Printing And Cutting Position
POS80D User Manual 3.3 Printing and Cutting Position 3.3.1 Printing position mm Print Paper mm Print Paper 3.3.2 Cutting Position Type Paper Cutting Position(L1) POS80D 11.6mm... -
Page 13: Installation And Usage
POS80D User Manual 4 INSTALLATION AND USAGE 4.1 Media Loading 4.1.1 Paper Confirmation 1) When using 80mm(width) roll paper, take down the paper guide of both sides. 2) When using 58mm(width) roll paper, insert the paper guide to each side. - Page 14 POS80D User Manual 3) Pull out some roll paper, and close the printer cover. 4) Tear the extra paper in the direction of printer. Notes: 1) According to the paper size to adjust the paper guide; 2) Make sure the paper inside is at tight status, or it will cause paper jam or other trouble.
-
Page 15: Led Indication And Beeper
POS80D User Manual 4.2 LED Indication and Beeper Function specification of indicated light and beeper. Name Status Specification The printer works well POWER LED (Blue) The printer does not work ERROR LED Flashing The printer is in an error state... -
Page 16: Power Connection
POS80D User Manual 4.3 Power Connection 1) Connect power adapter to printer; 2) Connect power adapter to power cord; 3) Plug the other side of power cord into the socket outlet. Pay attention about disconnecting or connecting the power adapter at right method, or it’s easy to cause damage. -
Page 17: Interface Cable Connection
POS80D User Manual Notes: 1) Please only use the power adapter recommended by supplier or equivalent products; 2) When disconnecting the power adapter plug, handheld plug connector housing, and avoid pulling the cable directly; 3) Avoid dragging the power adapter cable, otherwise it will damage the cables, causing fire and shock;... -
Page 18: Bluetooth/Wi-Fi Settings
POS80D User Manual 4.6 Bluetooth/Wi-Fi Settings 4.6.1 Bluetooth Settings Default name: BT Printer Default password: 0000 or 1234 Please refer to the Bluetooth Connection Manual for details 4.6.2 Wi-Fi Settings Printer factory default Wi-Fi mode is AP mode with IP address “192.168.1.1” and SSID “POS_WIFI”. -
Page 19: Interfaces
POS80D User Manual 5 INTERFACES POS80D supports cash drawer interface and many other various communication interfaces, such as Serial interface, USB interface, Ethernet interface, Wi-Fi and Bluetooth interfaces. 5.1 USB Figure 5-1 SIGNAL NAME VBUS 5.2 Serial Interface Figure 5-2... -
Page 20: Ethernet Interface
POS80D User Manual 5.3 Ethernet Interface PIN NO. Signal Name Note: The printer is equipped with an Ethernet interface, and use the network connection router, switch and other network communication equipment which meet RJ45 interface standard. When connecting directly with PC, it is suggested that the cross network line in accordance with RJ45 interface standard should be adopted. -
Page 21: Power Supply Interface
POS80D User Manual 5.5 Power Supply Interface Figure 5-5 PIN No. Signal Name +24V SHELL Printer end: Unetop DC-002 or other products of the same type. User end: Unetop DP-002 or other products of the same type. -
Page 22: Troubleshooting
POS80D User Manual 6 TROUBLESHOOTING Your printer is very reliable, but occasionally problems may occur. This chapter provides information on some common problems you may encounter and how to solve them. If you encounter problems that you can not resolve, contact with your dealer for assistance. -
Page 23: Problems Emerge During The Paper Cutting
POS80D User Manual 6.4 Problems Emerge During The Paper Cutting Problem Description Probable Reason Resolution Cutter abrasion, Replace the cutter insufficient cutting Worn gear and worn Cutter jam, the Replace the worn gear and worn wheel wheel abrasion movable cutter... -
Page 24: Printer Cleaning And Maintenance
POS80D User Manual 7 PRINTER CLEANING AND MAINTENANCE Print quality might be degraded by dust, foreign substance, adhesive substance, or other polluted materials stuck on the printer head or inside the printer. When printer is dirty, clean the print head as follows: ※...
