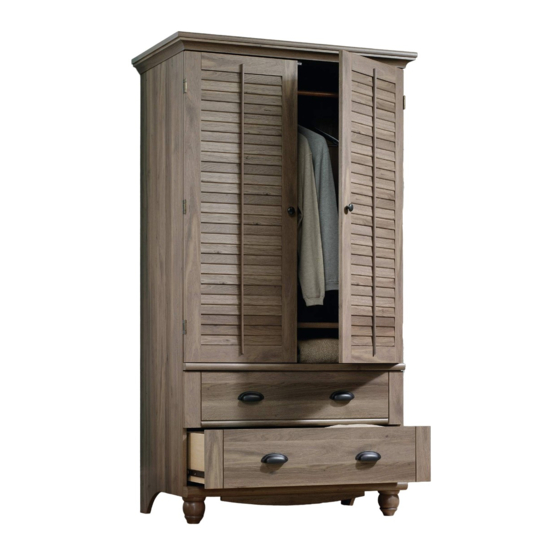

Sauder Harbor View Armoire 415003 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
415003
Armoire
Harbor View Collection
PLEASE CONTACT US
BEFORE RETURNING
YOUR UNIT TO THE STORE
1-800-523-3987
www.sauder.com
NOTE: THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
English .................... Page 1-26
Français ...............Pages 27-29
Made in the USA
Espanol .............Páginas 30-32
Archbold, OH
Lot #: 363415
Date Purchased: ____________________
07 / 14 / 14

Advertisement

loading
Need help?

Need help?

Do you have a question about the Harbor View Armoire 415003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sauder Harbor View Armoire 415003

Summary of Contents for Sauder Harbor View Armoire 415003

  • Page 1 PLEASE READ AND KEEP FOR FUTURE REFERENCE. BEFORE RETURNING English ....Page 1-26 YOUR UNIT TO THE STORE Français ....Pages 27-29 Made in the USA 1-800-523-3987 Espanol .....Páginas 30-32 Archbold, OH www.sauder.com Lot #: 363415 07 / 14 / 14 Date Purchased: ____________________...
  • Page 2 • Check the size and weight of your TV. Compare it to the diagram below – before you begin assembly! • This Sauder unit is designed for use with televisions weighing less than 50 pounds. Never use with a TV that weighs more.
  • Page 3 Use this PART IDENTIFICATION to help identify similar parts. RIGHT END FRONT MOLDING LEFT END BOTTOM MOLDING UPRIGHT SHELF MOLDING SHELF FOOT BOTTOM TV SHELF LOWER BACK BACK SKIRT RIGHT MOLDING LEFT MOLDING 415003 www.sauder.com/services Page 3...
  • Page 4 CABINET RIGHT - 2 CABINET LEFT - 2 DRAWER RIGHT - 2 DRAWER LEFT - 2 ® TWIST-LOCK CAM DOWEL - 2 7A ROD HANGER - 2 SLIDE CAM - 4 HIDDEN CAM - 2 FASTENER - 17 Page 4 www.sauder.com/services 415003...
  • Page 5 BLACK 1-9/16" FLAT HEAD SCREW - 10 GOLD 1" MACHINE SCREW - 2 52S SILVER 3/4" PAN HEAD SCREW - 6 SILVER 2" FLAT HEAD SCREW - 7 Screws are shown actual size. You may receive extra hardware with your unit. 415003 www.sauder.com/services Page 5...
  • Page 6 Assemble your unit on a carpeted fl oor or on the empty carton to avoid scratching your unit or the fl oor. ® To begin assembly, push a SAUDER TWIST-LOCK FASTENER (10F) into the large holes in the BOTTOM (F) and TV SHELF (G).
  • Page 7 Insert the metal end of the CAM DOWEL into the HIDDEN CAM. Push two HIDDEN CAMS (1F) into the DRAWER BRACES (U). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. 415003 www.sauder.com/services Page 7...
  • Page 8 Fasten two CABINET RIGHTS (35GA) to the RIGHT END (A) and two CABINET LEFTS (35GB) to the LEFT END (B). Use eight GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #3. Fasten a ROD HANGER (7A) to each END (A and B). Use two BLACK 9/16" LARGE HEAD SCREWS (1S). Page 8 www.sauder.com/services 415003...
  • Page 9 Use your hammer to tap the MOLDING CONNECTOR (16F) into the notches in the MOLDINGS. Flat end Flat end Tap two MOLDING CONNECTORS (16F) into the notches in the MOLDINGS (O, P, and Q). 415003 www.sauder.com/services Page 9...
  • Page 10 ® How to use the SAUDER TWIST-LOCK FASTENER 1. Insert the dowel end of the FASTENER into the hole of the adjoining part. NOTE: The dowel end of the FASTENER must remain fully inserted in the hole of the adjoining part while locking the FASTENER.
  • Page 11 BLACK 2-1/4" FLAT HEAD SCREW (2 used in this step) Fasten the RIGHT MOLDING (O) to the RIGHT END (A). Use two BLACK 2-1/4" FLAT HEAD SCREWS (26S). 415003 www.sauder.com/services Page 11...
  • Page 12 Finished edge Surface without TWIST-LOCK® FASTENERS ® Fasten the UPRIGHT (C) to the TV SHELF (G). Tighten two TWIST-LOCK FASTENERS. Page 12 www.sauder.com/services 415003...
  • Page 13 Fasten the SHELF (E) to the UPRIGHT (C). Use two BLACK 1-7/8" FLAT HEAD SCREWS (2S). Fasten three ANGLE BRACKETS (27G) to the SHELF (E) and LOWER BACK (H). Use six BLACK 9/16" LARGE HEAD SCREWS (1S). 415003 www.sauder.com/services Page 13...
  • Page 14 Fasten LEFT END (B) to the LEFT MOLDING (P). Use two BLACK 2-1/4" FLAT HEAD SCREWS (26S). ® Fasten the LEFT END (B) to the SHELVES (E and G) and BOTTOM (F). Tighten six TWIST-LOCK FASTENERS. Page 14 www.sauder.com/services 415003...
  • Page 15 These edges should be almost even. Fasten TOP (D) to the MOLDINGS (O, P, and Q). Use seven SILVER 2" FLAT HEAD SCREWS (57S). ® Fasten the SHELF MOLDING (S) to the SHELF (E). Tighten three TWIST-LOCK FASTENERS. 415003 www.sauder.com/services Page 15...
  • Page 16 Rounded edge BLACK 1-7/8" FLAT HEAD SCREW (3 used for the SKIRT) Flat surface Unfi nished surface Fasten the SKIRT (L) to the BOTTOM MOLDING (R). Use three BLACK 1-7/8" FLAT HEAD SCREWS (2S). Page 16 www.sauder.com/services 415003...
  • Page 17 (4 used in this step) Fasten the BOTTOM MOLDING (R) to the BOTTOM (F). Use four SILVER 1-1/8" FLAT HEAD SCREWS (10S). Fasten the MAGNETIC CATCH (1I) to the FRONT MOLDING (Q). Use two BLACK 9/16" PAN HEAD SCREWS (25S). 415003 www.sauder.com/services Page 17...
  • Page 18 Next, turn a FOOT (W) onto the other end of each FOOT SCREW (23F). Turn the FEET clockwise until the FOOT SCREW is tight in the BOTTOM MOLDING (R) and each FOOT. NOTE: Do not overtighten the FOOT SCREWS. Page 18 www.sauder.com/services 415003...
  • Page 19 Fasten a STRIKE PLATE (6I) to each DOOR (J and K). Use two BLACK 1/2" FLAT HEAD SCREWS (11S). NOTE: The surfaces of the STRIKE PLATES with "SAUDER" should be facing up. Be sure to position the STRIKE PLATES as shown.
  • Page 20 Fasten a DOOR MOLDING (T) to the LEFT DOOR (K). Use three SILVER 3/4" PAN HEAD SCREWS (52S). NOTE: Be sure the indicated hole in the DOOR MOLDING (T) is positioned toward the top of the DOOR. Repeat this step for the RIGHT DOOR (J). Page 20 www.sauder.com/services 415003...
  • Page 21 SIDES (D30 and D31) and DRAWER BRACE (U). Use five BLACK 1-9/16" FLAT HEAD SCREWS (30S) Fasten the DRAWER BRACE (U) to the LOWER DRAWER Repeat this step for the other drawer using the UPPER FRONT (M). Tighten one HIDDEN CAM. DRAWER FRONT (N). 415003 www.sauder.com/services Page 21...
  • Page 22 NOTE: The screw head in the CAM must be visible through the slotted hole in the SLIDE. Fasten two PULLS (98K) to the LOWER DRAWER FRONT (M). Use four SILVER 3/4" MACHINE SCREWS (20S). Repeat this step for the other drawer. Page 22 www.sauder.com/services 415003...
  • Page 23 Insert the ROD (V) into the ROD HANGERS on the ENDS (A and B). 415003 www.sauder.com/services Page 23...
  • Page 24 When the drawer is closed, it will hide the label. Peel off the backing and apply the label as shown in the diagram. NOTE: This is a permanent label intended to last for the life of the product. Once applied, do not try to remove it. Page 24 www.sauder.com/services 415003...
  • Page 25 We recommend using the SAFETY BRACKET (1G) for added stability. Use a BLACK 9/16" LARGE HEAD SCREW (1S) into the top of the unit and a BLACK 1-7/8" FLAT HEAD SCREW (2S) into a stud in your wall. 415003 www.sauder.com/services Page 25...
  • Page 26 Tighten the SCREW when finished with adjustments. NOTE: Please read the back pages of the instruction booklet for important safety information. This completes assembly. To clean your unit, dampen a cloth with tap water and wipe. Page 26 www.sauder.com/services 415003...
  • Page 27 ENTRETOISE DE TIROIR ..... 2 10S VIS TÊTE PLATE 28 mm ARGENT ..4 Pour contacter Sauder D30 CÔTÉ DROIT DE TIROIR ...... 2 11S VIS TÊTE PLATE 13 mm NOIRE ..2 en ce qui concerne cet D31 CÔTÉ...
  • Page 28 ! 2. Bien serrer la FIXATION à l'aide d'un tournevis Phillips. • Cette unité Sauder est conçue pour les téléviseurs pesant moins de 22,6 kg. Ne jamais utiliser avec des téléviseurs plus lourds. Fixer la TABLETTE TÉLÉ (G) à l'EXTRÉMITÉ DROITE (A).
  • Page 29 Les surfaces des PLAQUES DE BUTÉE REMARQUE : Cette étiquette permanente est prévue pour comportant l'inscription « SAUDER » devraient être dirigées durer pendant toute la vie du produit. Une fois apposée, ne pas vers le haut. S’assurer que les PLAQUES DE BUTÉE sont essayer de la retirer.
  • Page 30 Si necesita ponerse D618 FONDO DE CAJÓN ......2 CABEZA REDONDA de 14 mm ..2 en contacto con 26S TORNILLO NEGRO DE Sauder en cuanto a 35GA GABINETE DERECHO....2 CABEZA PERDIDA de 57 mm ..4 esta unidad, refi érase 35GB GABINETE IZQUIERDO ....2 30S TORNILLO NEGRO DE al número de lote y...
  • Page 31 - antes de comenzar el ensamblaje! 2. Apriete el SUJETADOR lo más apretado posible con un • Esta unidad Sauder está diseñada para ser usada con destornillador Phillips (cruz). televisores cuyo peso sea inferior a 22,6 Kg. Nunca la use para un televisor de mayor peso.
  • Page 32 NOTA: Las superfi cies de las PLACAS DE CONTACTO con la NOTA: Esta etiqueta es permanente e intencionada a durar inscripción "SAUDER" deben mirar hacia arriba. Asegúrese de que por la vida del producto. Una vez aplicada, no intente quitarla.
  • Page 33 équipé. • Blessure physique. Le mobilier peut être mobilier. très lourd. • Ne pas pousser le mobilier, surtout sur la moquette. Se faire aider par une autre personne pour soulever l’élément et le mettre en place. 415003 www.sauder.com/services Page 33...
  • Page 34 • Lesión física. El mobiliario puede ser • No empuje la unidad, especialmente muy pesado. sobre un piso alfombrado. Pide la ayuda de otra persona en levantar la unidad y colocarla en lugar. Page 34 www.sauder.com/services 415003...
  • Page 35 4. La présente garantie ne s’applique qu’aux défauts garantis qui se produisent des composantes de mobilier Sauder. Le mot « défaut », tel qu’il est utilisé sous pour la première fois et qui sont signalés à Sauder dans les limites de ouverture les termes de la présente garantie, comprend les imperfections des pièces qui...
  • Page 36 Archbold, Ohio, where it all began. Certifi cate of Conformity The Sauder name on the box ensures that 1. This certifi cate applies to the Sauder Woodworking Product identifi ed by this Instruction Book. the item you have purchased is made with 2.
