80 Meter Tuning Coil Add-On Kit
for the DXE-ATSA-1
Auto Tuned Multi-Band HF
Stealth Antenna System
DXE-SA80-AOK
DXE-SA80-AOK-INS Revision 0f

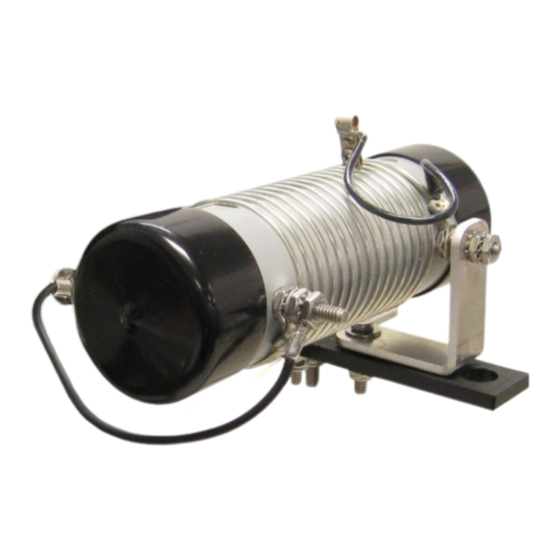

DXE-SA80-AOK shown installed on the DXE-ATSA-1
DX Engineering 2017
1200 Southeast Ave. - Tallmadge, OH 44278
Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200
Fax: (330) 572-3279 ∙ E-mail: DXEngineering@DXEngineering.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DX Engineering DXE-SA80-AOK
Summary of Contents for DX Engineering DXE-SA80-AOK

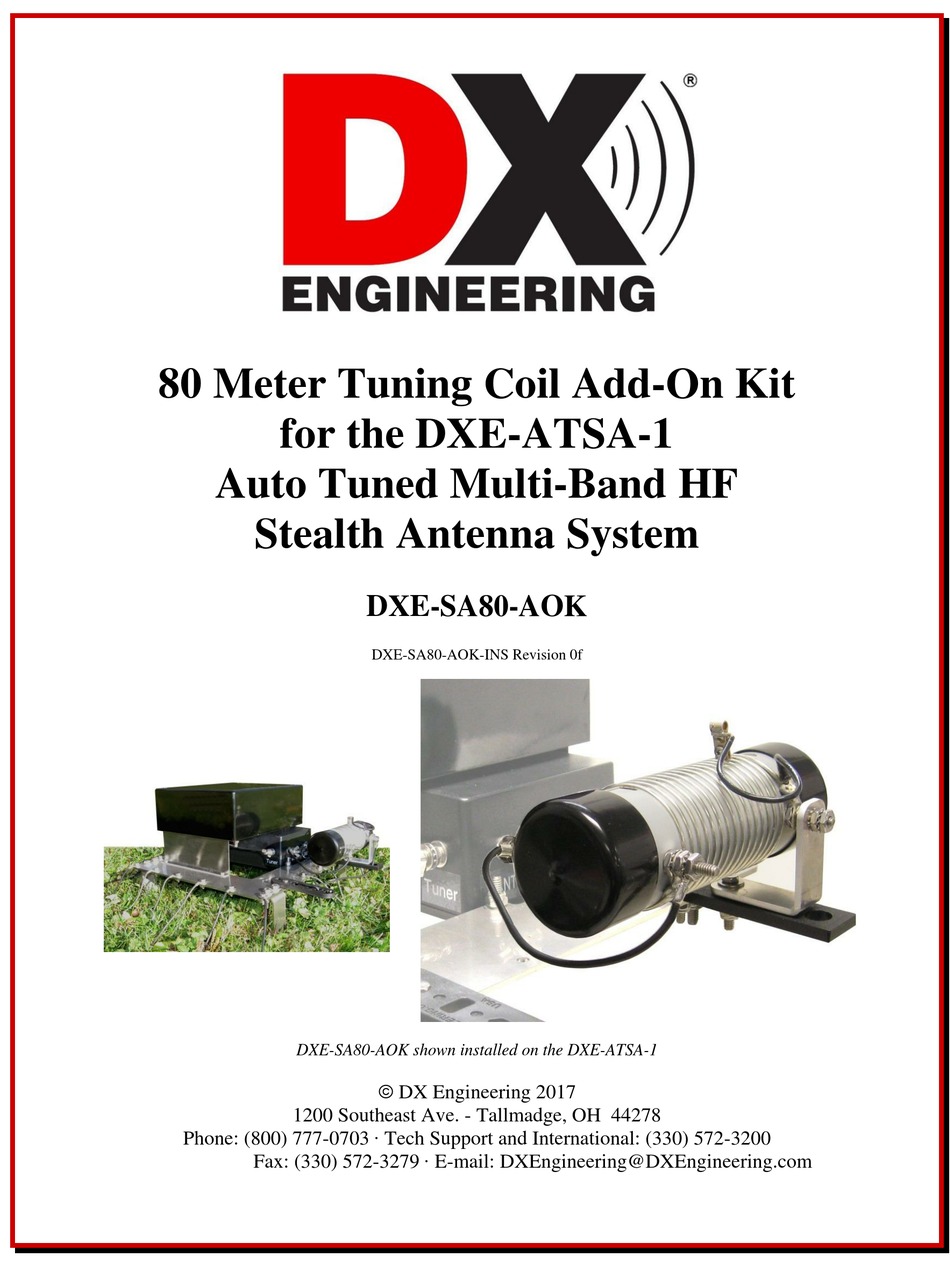

- Page 1 Auto Tuned Multi-Band HF Stealth Antenna System DXE-SA80-AOK DXE-SA80-AOK-INS Revision 0f DXE-SA80-AOK shown installed on the DXE-ATSA-1 DX Engineering 2017 1200 Southeast Ave. - Tallmadge, OH 44278 Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200 Fax: (330) 572-3279 ∙ E-mail: DXEngineering@DXEngineering.com...
- Page 2 #10 Stainless Steel Hex Nut Installing the Optional 80 meter Tuning Coil - DXE-SA80-AOK The DXE-SA80-AOK 80 meter coil add-on kit is custom designed for use with the ATSA antenna system. In some ATSA antenna installations with excellent radial systems, achieving the best SWR on a vertical element for 80 meters may be difficult without some means of adjusting feedpoint impedance.
- Page 3 next radial mounting hole and connect it there (double up on one radial mounting hole). Mount the insulated coil mounting bracket to the "L" bracket on the coil assembly using the hex head bolt, two flat washers, star washer and Nyloc nut as shown in Figure 2. When installing stainless steel hardware, it is suggested that UMI-81343, UMI-81464, DXE-NSBT8 or DXE-NMBT8 - Never- Seez or Anti-Seize be used to prevent thread galling on stainless steel.
-
Page 4: Technical Support
Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
