U s e r M a n u a l

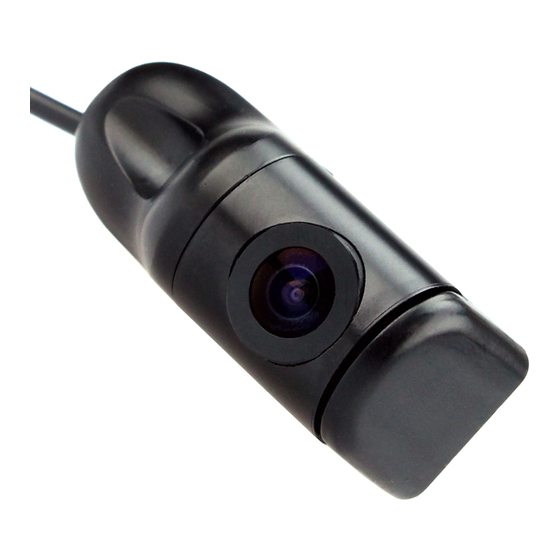

CAM-30
Rear View Camera

PRODUCT FEATURES:

Image Sensor: 1/4" DSC
TV System: NTSC/PAL
Pixels: 720 x 480
TV Lines: 420
Diagonal Degrees: 180
Illumination: 0.3 Lux
Electronic Shutter: 50/60 fps
Gamma Correction: 0.45
Video Output: 1.0V p-p 75ohm
Enhanced Performance In Low Light: Yes
Operating Temperature: -30 Degrees C to +75 Degrees C
Operating Voltage: 6-24V DC (Negative Ground)
Current Consumption: 37mA @ 13.8V
Image Adjustment: Yes (Normal/Mirror)
Camera Mounting Orientation: Horizontal
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any tech-
nical issues. With this in mind, when contacting Connects2, try to provide as much Infor-
mation as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM-30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Connects2 CAM-30

  • Page 1 Connects2 want to provide a fast and suitable resolution should you encounter any tech- nical issues. With this in mind, when contacting Connects2, try to provide as much Infor- mation as possible. This will speed up the process and help us to help you.
  • Page 2 If adjustment is required, loosen the screw located in the camera housing, adjust the camera and tighten the screw to lock the camera in position. Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2 www.connects2.com...
